3. Push in on the green drive-lock release tabs 2 and slide the hard drive out 3 of the chassis.

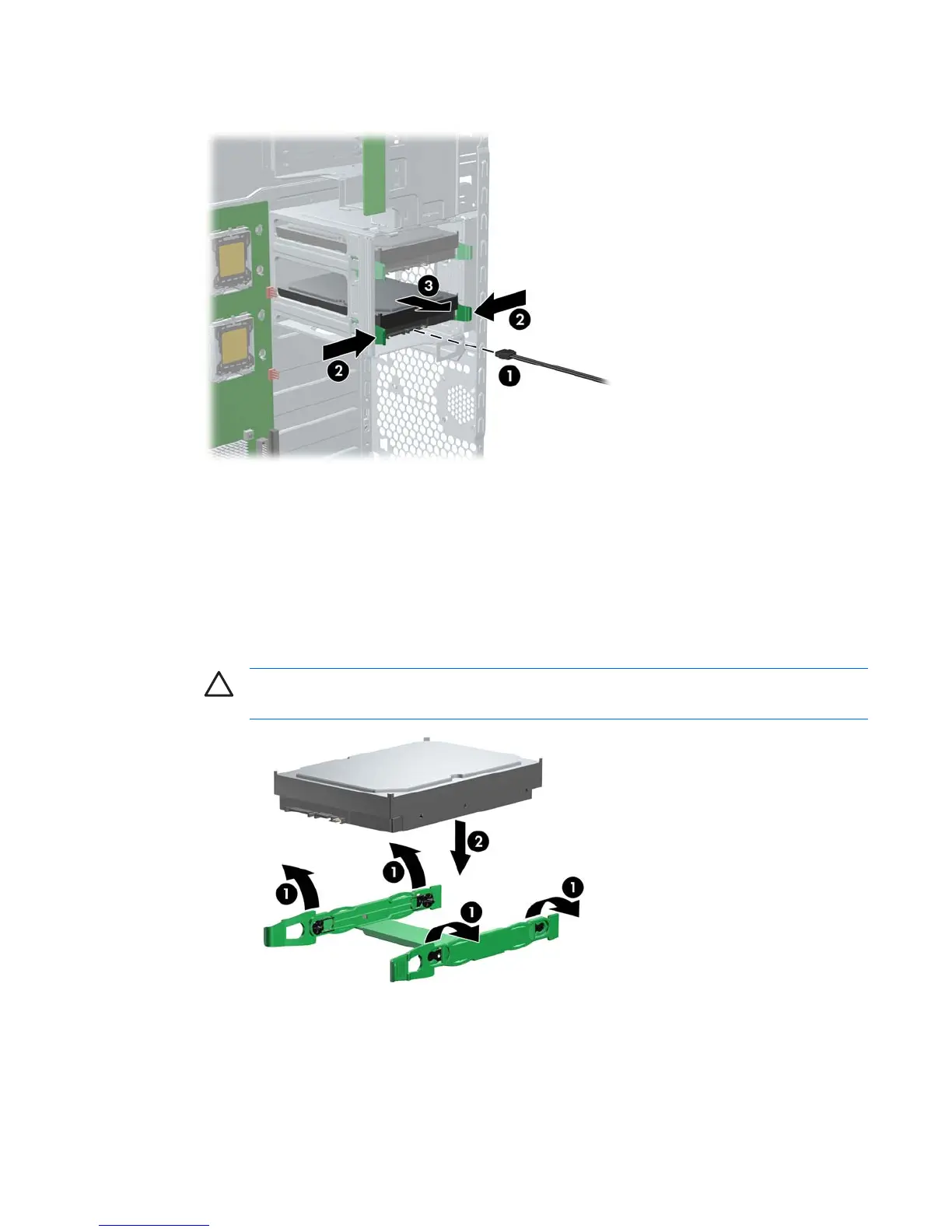

Figure 4-39 Removing the hard drive
Installing a hard drive
1. Select a drive bay in which to install the drive.
2. In the hard drive cage, squeeze the green tabs and slide two rails out of the empty bay.
3. Attach the rails to the hard drive. Align the pins on the rails with the hard drive holes and snap the
rails into place.
CAUTION Do not damage the PC board on the bottom of the hard drive with the pins on
the rails.
Figure 4-40 Attaching the rails to the hard drive
4. Push the drive 1 into the selected bay until it snaps into place.
ENWW Removal and replacement of components 89

HP xw6400 Specifications

General

Chipset	Intel 5000X
Storage	SATA or SAS hard drives
Power Supply	650W
Memory	Up to 16 GB DDR2
Expansion Slots	2 PCIe x16
Network	Integrated Gigabit Ethernet
Operating System	Windows XP Professional
Graphics	NVIDIA Quadro FX series
