5. For a SATA hard drive, attach a data cable 2 from a SATA connector on the system board to the
hard drive, and attach a power cable (not illustrated) to the drive.

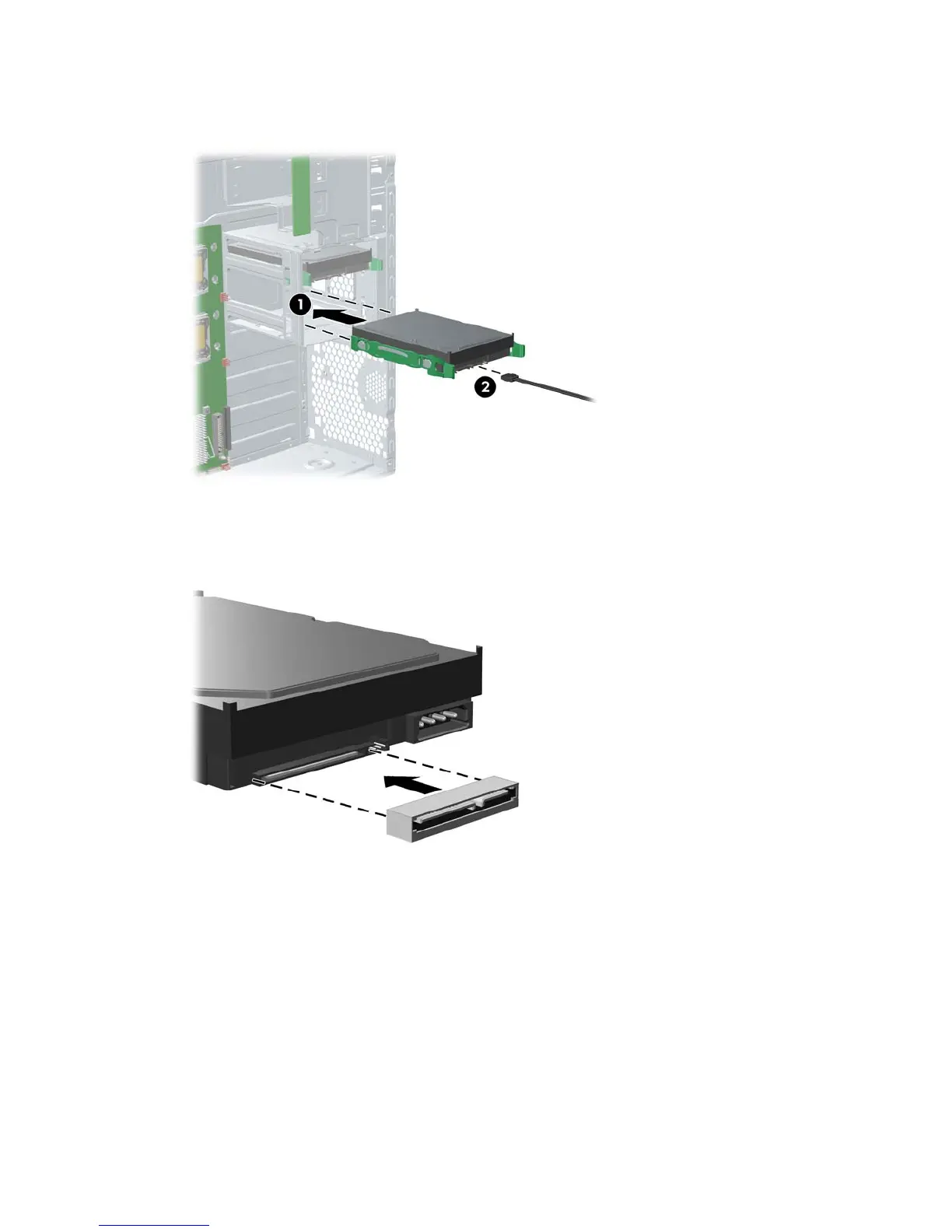

Figure 4-41 Replacing the SATA hard drive
6. For a SAS hard drive, attach a SAS-to-SATA cable adapter to the connector on the hard drive.
Figure 4-42 Attaching the SAS-to-SATA cable adapter
7. Insert the SAS controller card into an available PCI expansion slot.
90 Chapter 4 Removal and replacement procedures ENWW
