5 PCI 32/33
6 PCI 32/33
PCI retainer
For added protection, some cards have PCI retainers installed to prevent movement during shipping.
Removing PCI retainer
1. Disconnect power from the system (
Predisassembly procedures on page 57) and remove the side
access panel (
Side access panel on page 63).
2. For short or tall PCI cards, press in 1 on the ribbed portion of the holder and apply upward pressure
on the lower arm 2 and rotate it out of the chassis.

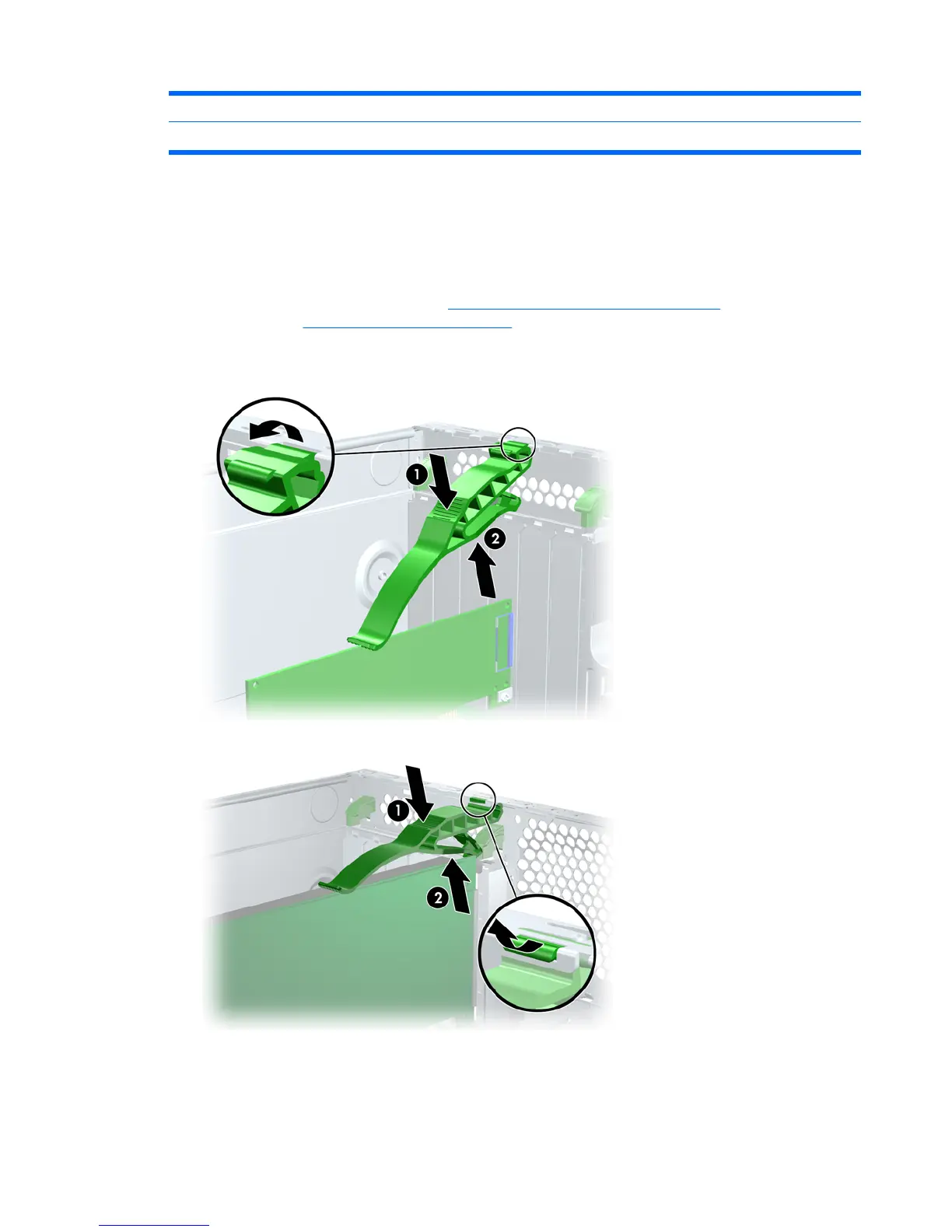

Figure 4-21 Removing PCI retainer for short card
Figure 4-22 Removing the PCI retainer for tall card
