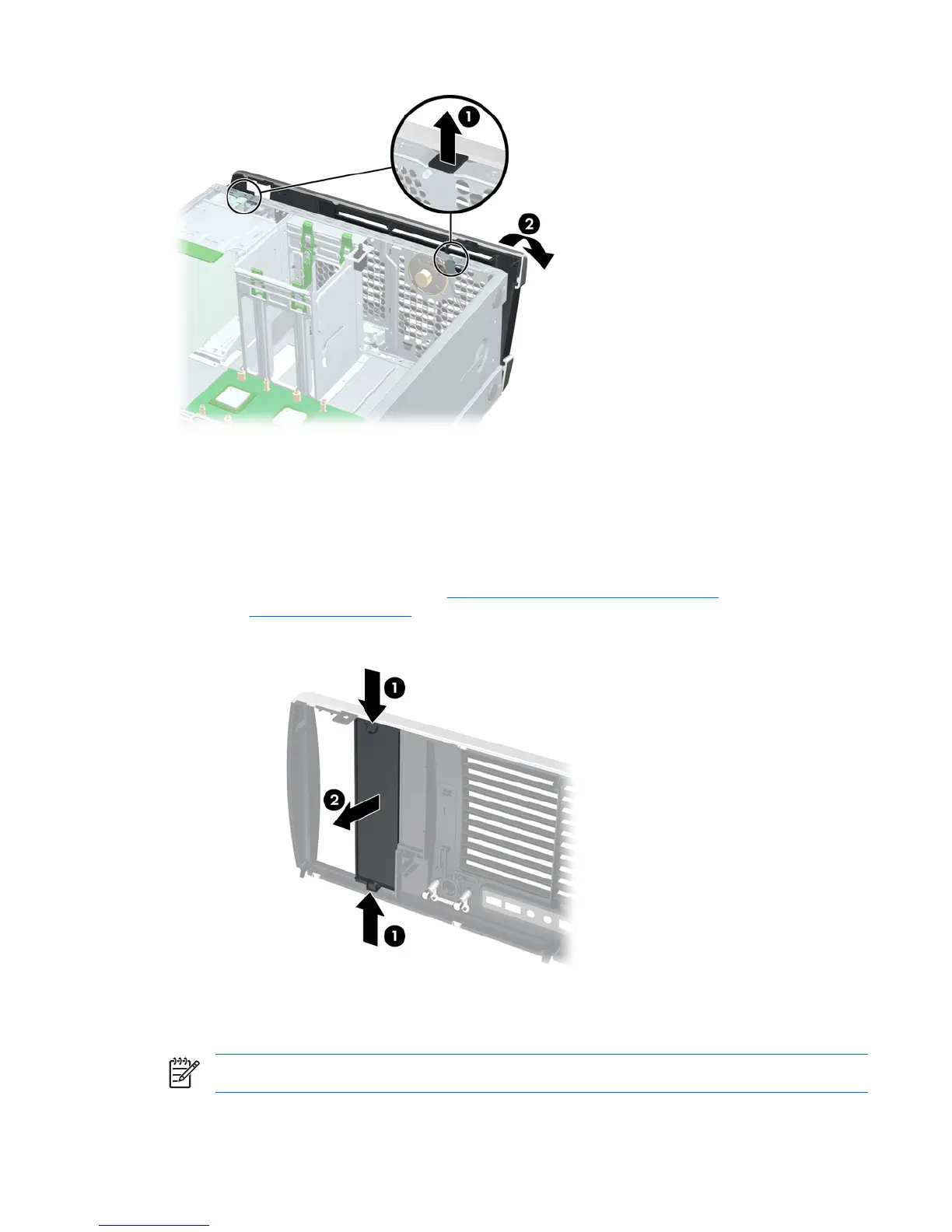

Figure 4-6 Opening the front bezel
To replace the front bezel, align front bezel on the bottom and rotate in until it snaps into place.
Bezel blanks
To remove the bezel blanks:
1. Disconnect power from the system (
Predisassembly procedures on page 57) and remove the front
bezel (
Front Bezel on page 64)
2. Remove the bezel blanks by squeezing in 1 on the tabs and pushing the bezel blanks out 2.
Figure 4-7 Removing the bezel blanks
Top cover
NOTE It is unnecessary to remove the top cover for most removal or replacement procedures.
ENWW Removal and replacement of components 65
