5. Close the PCI retention clamp by rotating the clamp downward and pushing on the two green snaps
down from the rear panel of the chassis.

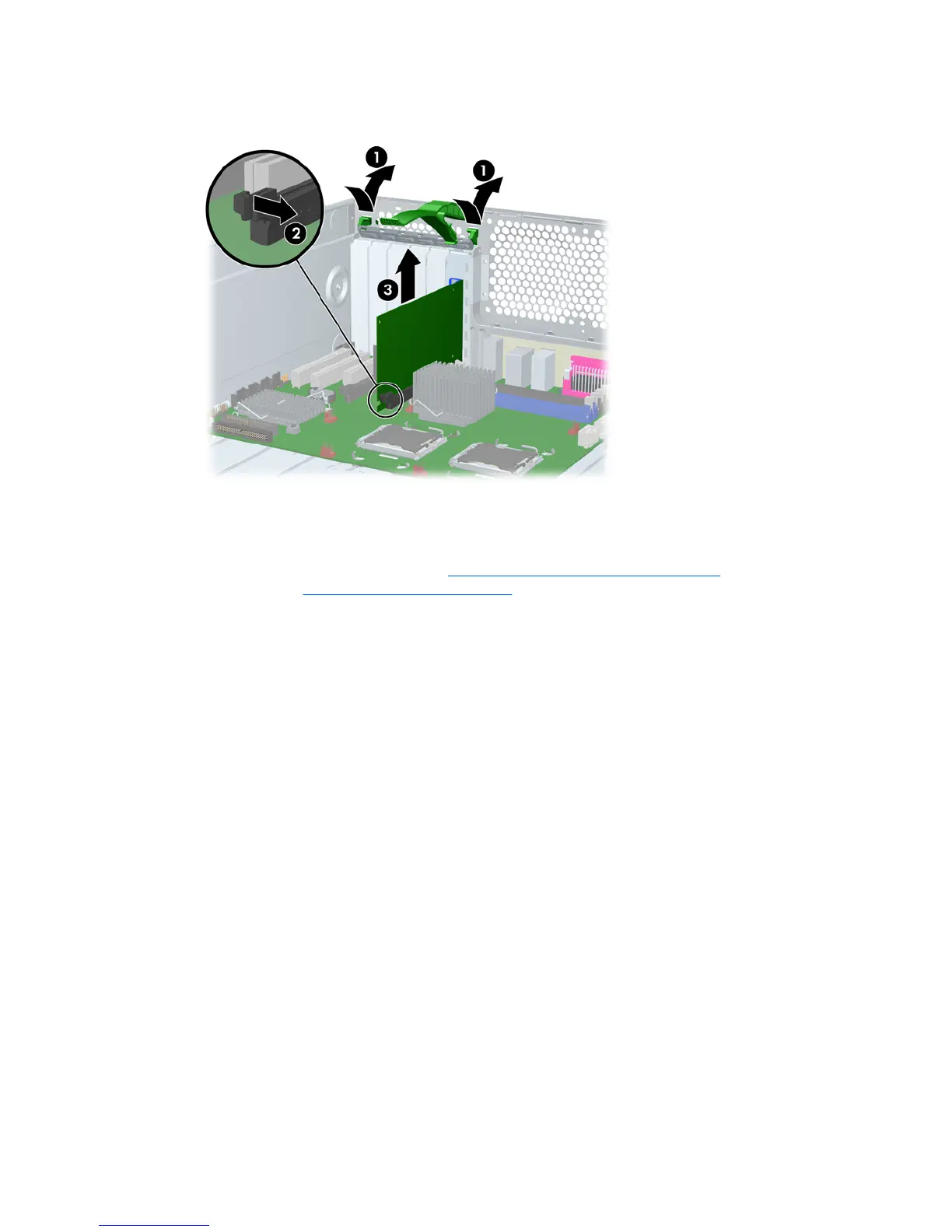

Figure 4-26 Removing the PCI Express card
PCI installation
1. Disconnect power from the system (Predisassembly procedures on page 57) and remove the side
access panel (
Side access panel on page 63).
2. Release the PCI retention clamp by first pressing down on the green snaps 1 and rotating the clamp
upward.
3. Remove the PCI slot cover 2.
4. Lower the PCI 3 card into the chassis. Verify that the keyed components of the card align with the
socket.
5. Close the PCI retention clamp 4 by rotating the clamp downward and pushing on the two green
snaps down from the rear panel of the chassis.
ENWW Removal and replacement of components 79

HP xw6400 Specifications

General

Chipset	Intel 5000X
Storage	SATA or SAS hard drives
Power Supply	650W
Memory	Up to 16 GB DDR2
Expansion Slots	2 PCIe x16
Network	Integrated Gigabit Ethernet
Operating System	Windows XP Professional
Graphics	NVIDIA Quadro FX series
