2. Disconnect the cables from the back of the diskette drive.

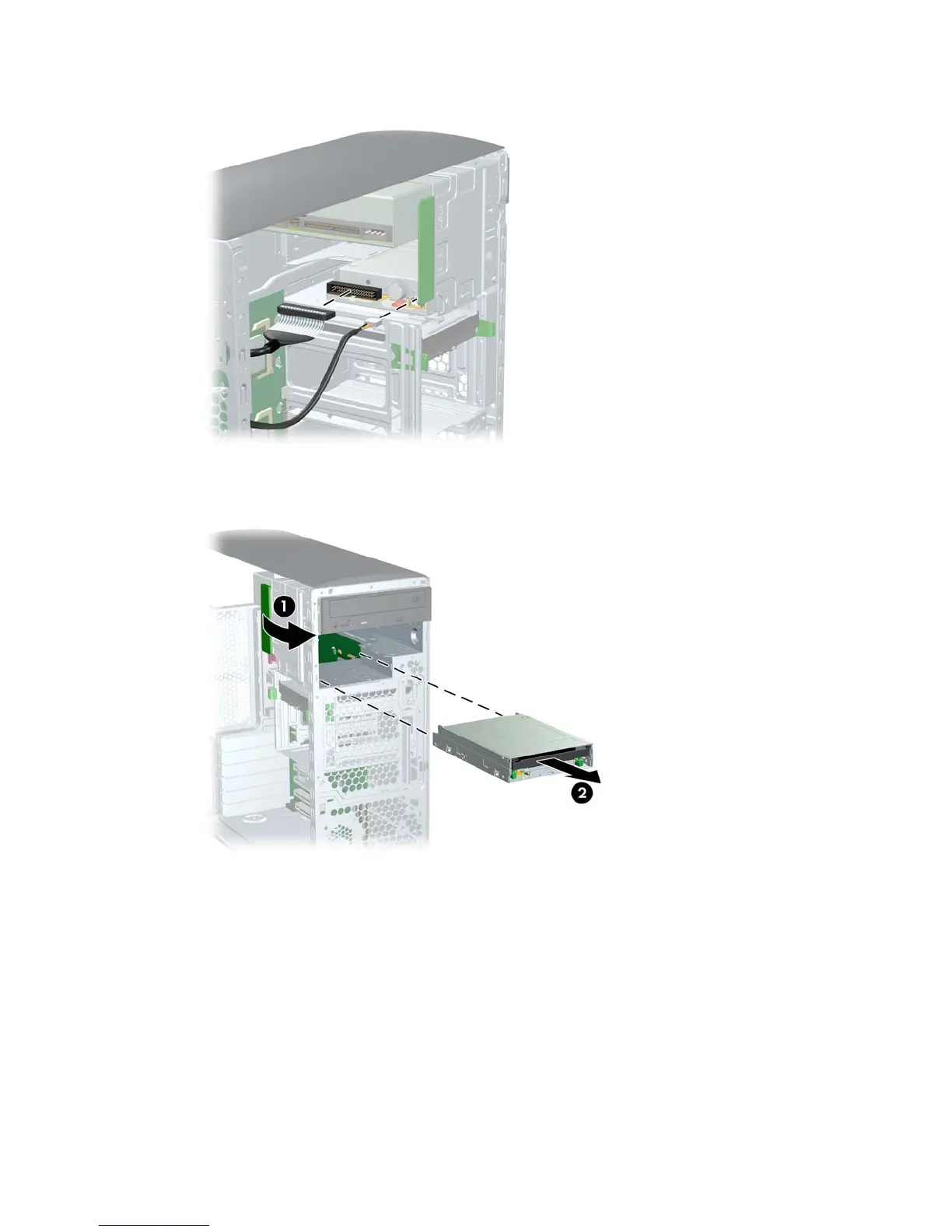

Figure 4-36 Disconnecting the cables from the diskette drive
3. While lifting the green drive-lock release lever 1, slide the drive forward 2 out of the chassis.
Figure 4-37 Removing the diskette drive from the chassis
To replace an optional diskette drive:
1. Lift the green drive-lock release lever while sliding the diskette drive into the bay. When the diskette
drive is partially inserted, release the drive-lock release lever and slide the drive inward until the
drive snaps into place, securing the drive.
ENWW Removal and replacement of components 87
