HPE FlexFabric 5710 Series User Manual

7

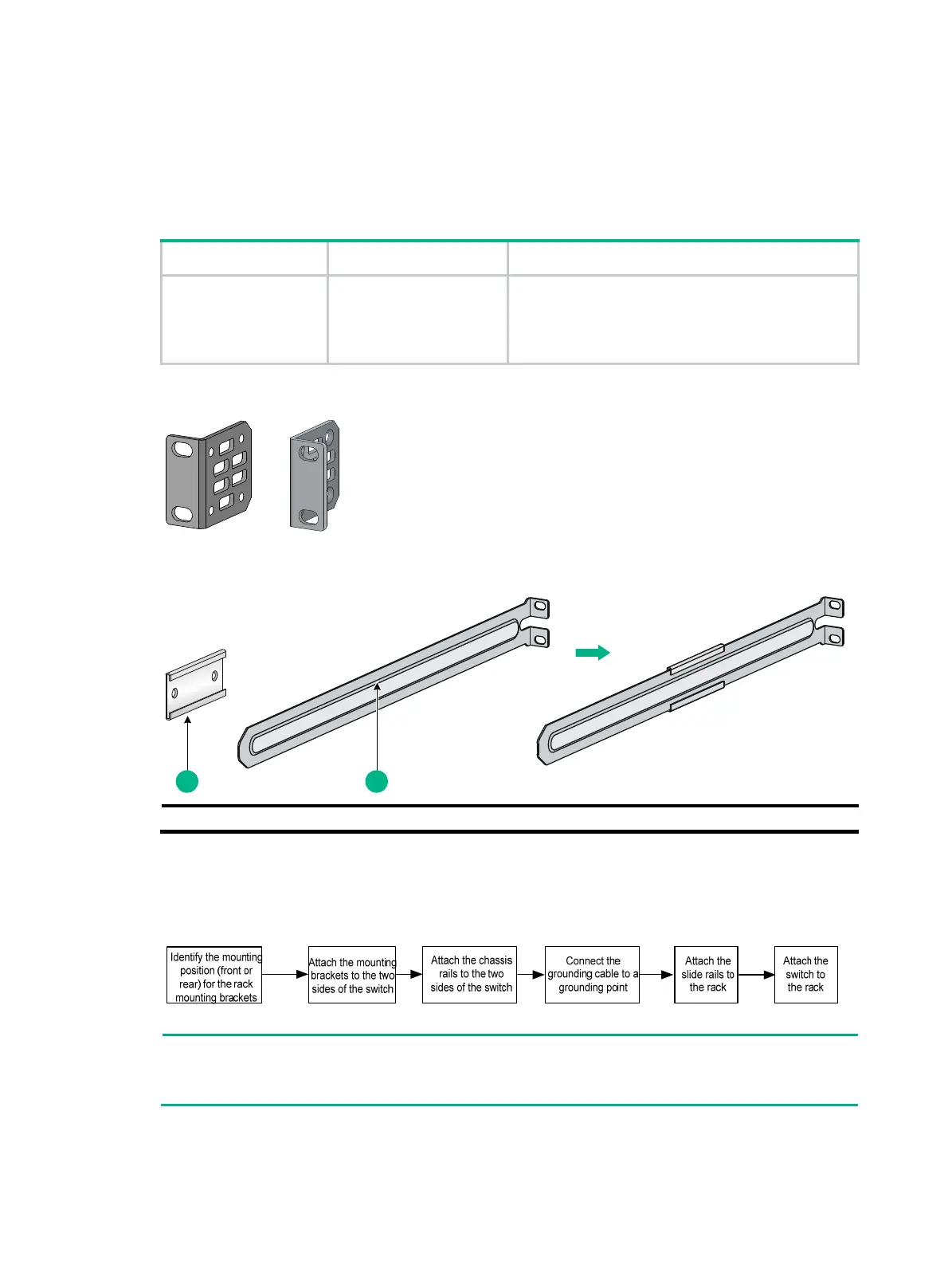

Installing the switch in a 19-inch rack
Installation accessories
Table 5 Installation accessories
Switch model Mounting brackets Rack mounting rail kit
• HPE 5710-54HF
• HPE 5710-30HF
• HPE 5710-54HT
• HPE 5710-30HT
1U high, one pair
(provided). See Figure 2.
1U hi
gh, including one pair of chassis rails and one
pair of long slide rails (provided). See Figure 3.
Figure 2 Mounting brackets
Figure 3 1U chassis rail and long slide rail
(1) Chassis rail (2) Long slide rail
Rack-mounting procedures at a glance
Figure 4 Rack-mounting procedure
NOTE:
If a rack shelf is available, you can put the switch on the rack shelf, slide the switch to an appropriate
location, and attach the switch to the rack with the mounting brackets.
Follow these guidelines when you install the switch in a 19-inch rack:
• The distance between the front and rear posts of the rack must meet the requirements
described in Table 6.
1 2

HPE FlexFabric 5710 Series Specifications

General

Model	HPE FlexFabric 5710 Series
Power Supply	AC or DC
Operating Temperature	0°C to 45°C
Routing Protocol	OSPF, BGP, RIP
Input Voltage	100-240V AC
Operating Humidity	10% to 90% (non-condensing)
Jumbo Frame Support	Up to 9216 bytes
Management	CLI, SNMP
