HPE FlexFabric 5710 Series

40

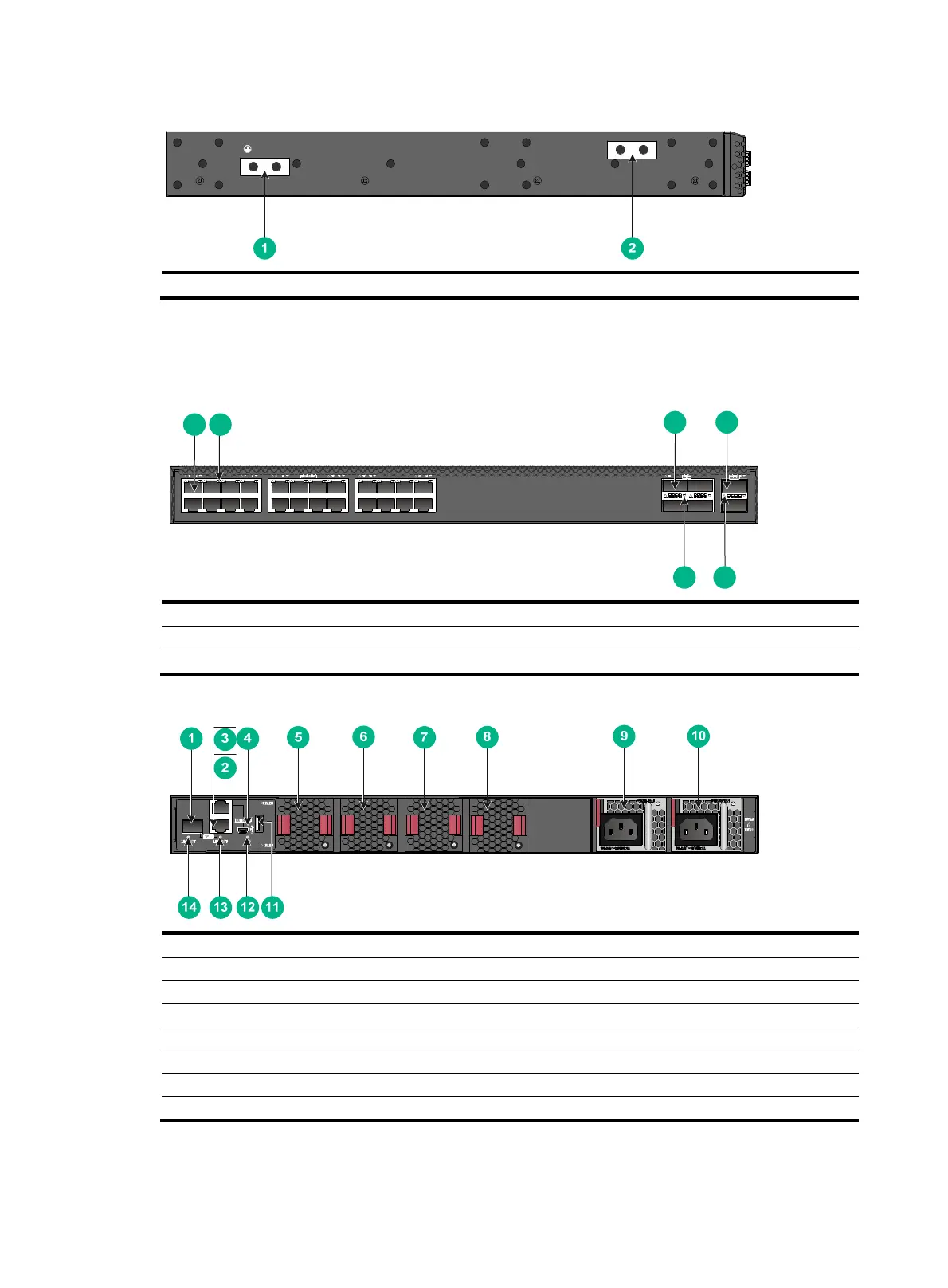

Figure 48 Left side panel
(1) Primary grounding point (2) Auxiliary grounding point
HPE 5710-30HT
Figure 49 Front panel
(1) 1/10GBase-T autosensing Ethernet port (2) 1/10GBase-T autosensing Ethernet port LED
(3) QSFP+ port (4) QSFP28 port
(5) QSFP28 port LED (6) QSFP+ port LED
Figure 50 Rear panel
(1) Fiber management Ethernet port (2) Copper management Ethernet port
(3) Console port (4) Mini USB console port
(5) Fan tray 1 (6) Fan tray 2
(7) Fan tray 3 (8) Fan tray 4
(9) Power supply 1 (10) Power supply 2
(11) USB port (12) System status LED (SYS)
(13) LINK/ACT LED for the copper management Ethernet port
(14) LINK/ACT LED for the fiber management Ethernet port
21
3 4
6 5
