An HPE 5710-54HF switch comes with the four fan tray slots empty. You must install four fan trays of
the same model for the switch. In Figure 41,
four X722 back-to-front fan tray are installed in the fan
tray slots. For more information about installing and removing a fan tray, see "Installing and removing
a fan tray."

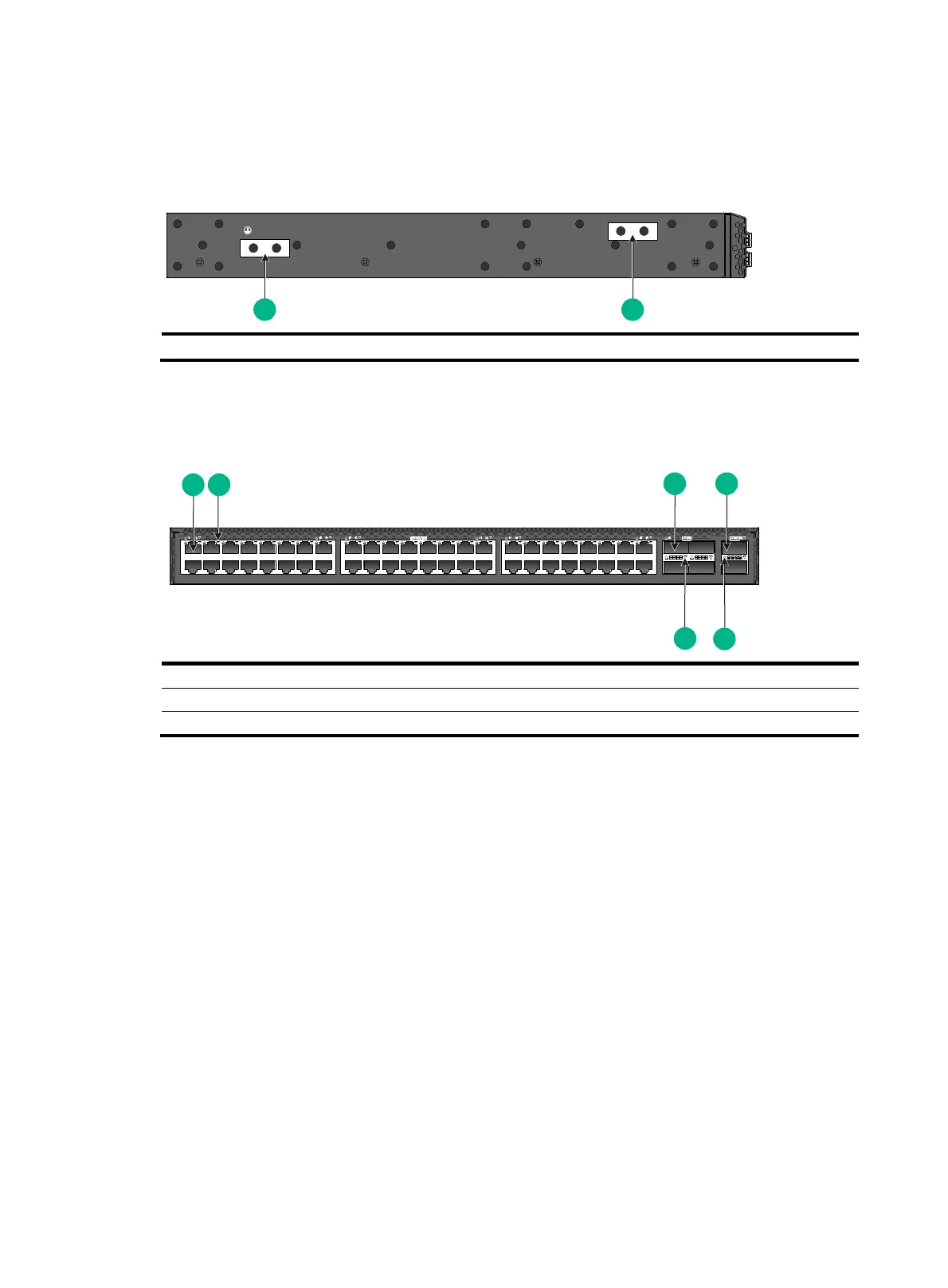

Figure 42
Left side panel
(1) Primary grounding point (2) Auxiliary grounding point
HPE 5710-54HT
Figure 43 Front panel
(1) 1/10GBase-T autosensing Ethernet port (2) 1/10GBase-T autosensing Ethernet port LED
(3) QSFP+ port (4) QSFP28 port
(5) QSFP28 port LED (6) QSFP+ port LED
1 2
21
3 4
6
5
