Mounting the switch in the rack
The rack-mounting procedure is similar for the switches. The following procedure mounts an HPE
5710-54HF switch in a rack.
This task requires two people.
To mount the switch in the rack:
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Verify that the mounting brackets and chassis rails have been securely attached to the switch
chassis.
3. Verify that the slide rails have been correctly attached to the rear rack posts.
4. Install floating nuts (user-supplied) to the front rack posts and make sure they are at the same
level as the slide rails.
5. One person performs the following operations:
a. Supporting the bottom of the switch, aligns the chassis rails with the slide rails on the rack
posts.
b. Pushes the switch slowly to slide the chassis rails along the slide rails until the mounting
brackets are flush with the rack posts.
6. The other person uses screws (user-supplied) to attach the mounting brackets to the rack.
Make sure the front ends of the long slide rails reach out of the chassis rails.
The rack-mounting procedures are the same for the HPE 5710-54HT, HPE 5710-54HF, HPE
5710-30HT, and HPE 5710-30HF switches. The following figures use the HPE 5710-54HF switch as
an example.

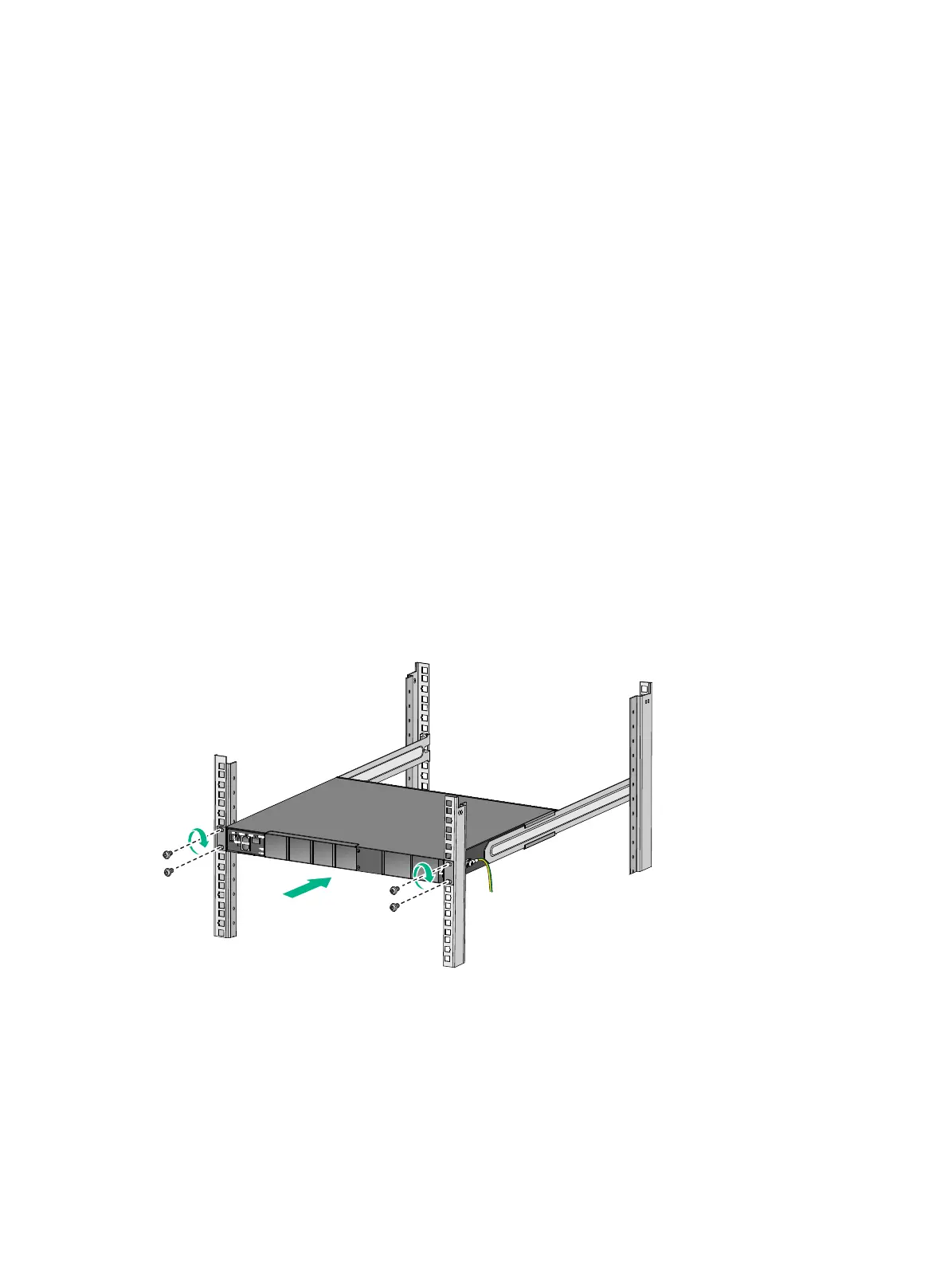

Figure 16 Mounting an HPE 5710-54HF switch in the rack (mounting brackets installed near
the power supply side)

HPE FlexFabric 5710 Series Specifications

General

Model	HPE FlexFabric 5710 Series
Power Supply	AC or DC
Operating Temperature	0°C to 45°C
Routing Protocol	OSPF, BGP, RIP
Input Voltage	100-240V AC
Operating Humidity	10% to 90% (non-condensing)
Jumbo Frame Support	Up to 9216 bytes
Management	CLI, SNMP
