HPE FlexFabric 5710 Series User Manual

22
Accessing the switch for the first time
Setting up the configuration environment
An HPE 5710 switch supports the following ways to connect the configuration terminal:
• Through the console port by using the serial console cable
The switch comes with the serial console cable. This way is preferred.
• Through the Mini USB console port by using the user-supplied USB mini console cable
Do not use the two ways together on the same HPE 5710 switch.
The example uses a console cable to connect a console terminal (PC) to the serial console port on
the switch.

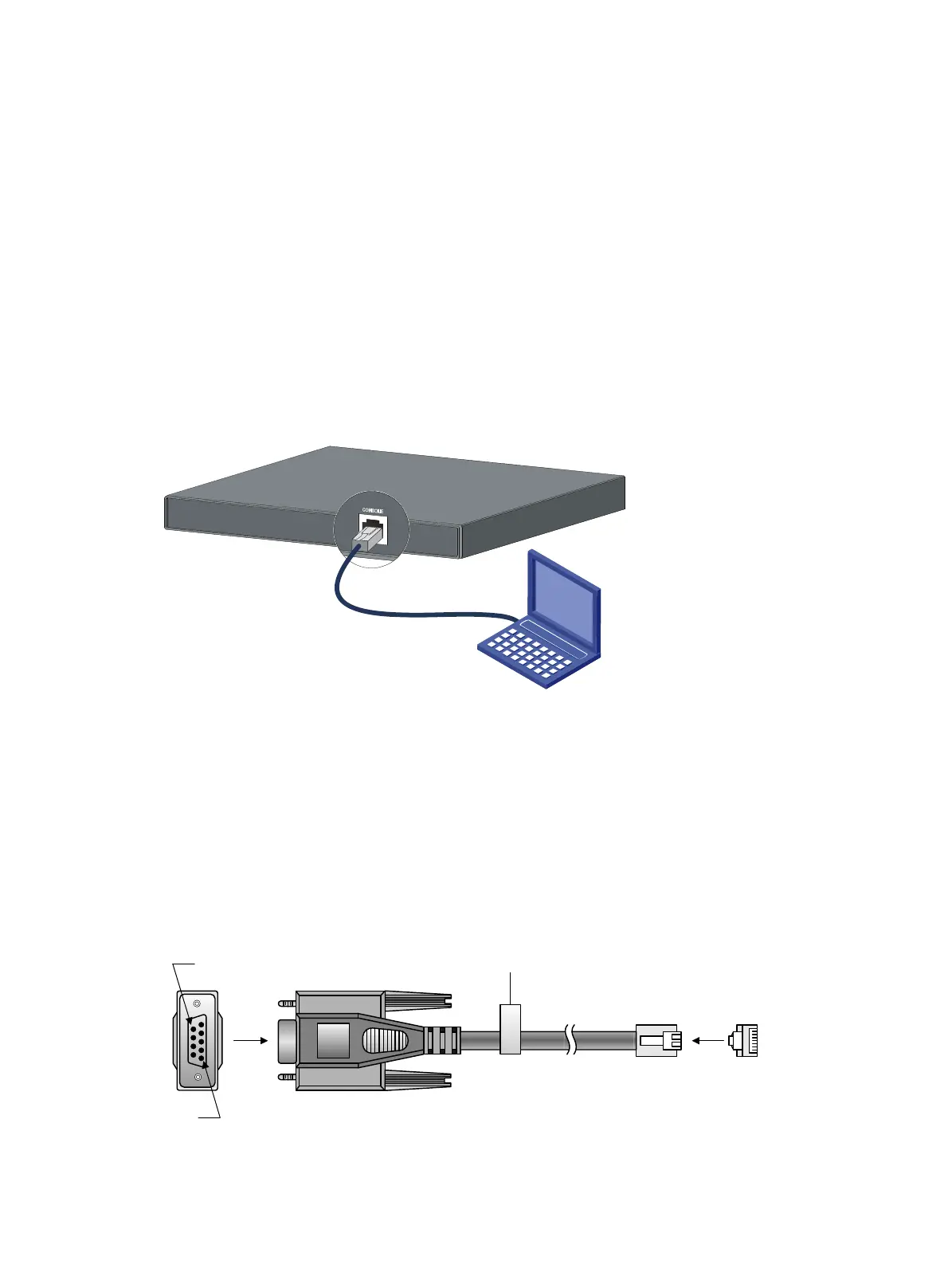

Figure 29 Connecting the serial console port to a terminal
Connecting the console cable
Serial console cable
A serial console cable is an 8-core cable, with a crimped RJ-45 connector at one end for connecting
to the serial console port of the switch, and a DB-9 female connector at the other end for connecting
to the serial port on the console terminal.
Figure 30 Serial console cable
Main label
1
8
B side
B
Pos.9
Pos.1
A side
A

HPE FlexFabric 5710 Series Specifications

General

Model	HPE FlexFabric 5710 Series
Power Supply	AC or DC
Operating Temperature	0°C to 45°C
Routing Protocol	OSPF, BGP, RIP
Input Voltage	100-240V AC
Operating Humidity	10% to 90% (non-condensing)
Jumbo Frame Support	Up to 9216 bytes
Management	CLI, SNMP
