HPE FlexFabric 5710 Series User Manual

39
HPE 5710-30HF

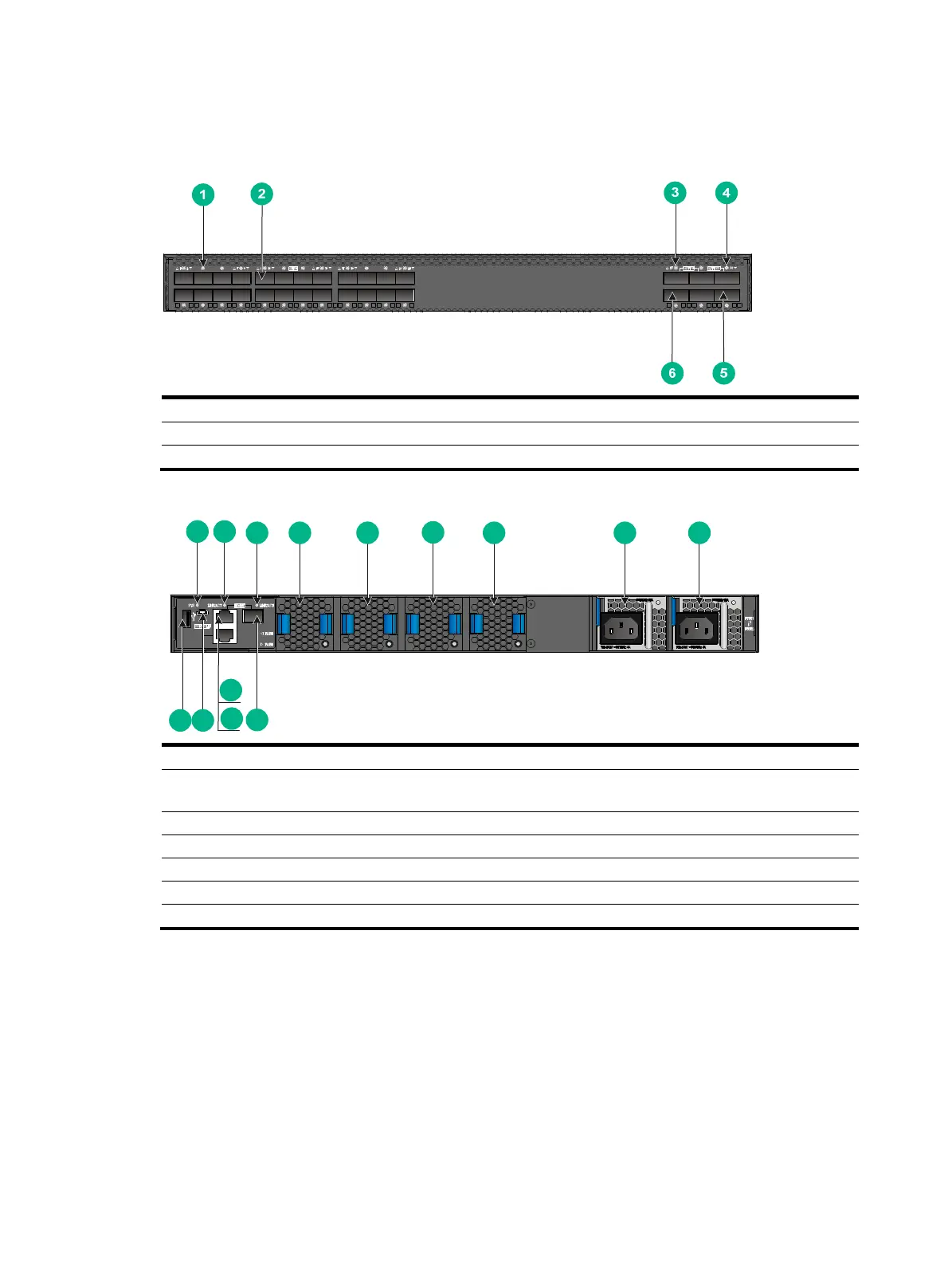

Figure 46 Front panel
(1) SFP+ port LED (2) SFP+ port
(3) QSFP+ port LED (4) QSFP28 port LED
(5) QSFP28 port (6) QSFP+ port
Figure 47 Rear panel
(1) System status LED (SYS) (2) LINK/ACT LED for the copper management Ethernet port
(3) LINK/ACT LED for the fiber
management Ethernet port
(4) Fan tray 1
(5) Fan tray 2 (6) Fan tray 3
(7) Fan tray 4 (8) Power supply 1
(9) Power supply 2 (10) Fiber management Ethernet port
(11) Copper management Ethernet port (12) Console port
(13) Mini USB console port (14) USB port
An HPE 5710-30HF switch comes with power supply slot PWR1 empty and power supply slot PWR2
installed with a filler module. In Figure 41, two PSR250-12A
power supplies are installed in the power
supply slots. For more information about installing and removing a power supply, see "Installing and
removin
g a power supply."
An HPE 5710-30HF switch comes with the four fan tray slots empty. You must install four fan trays of
the same model for the switch. In Figure 41, four X72
2 back-to-front fan trays are installed in the fan
tray slots. For more information about installing and removing a fan tray, see "Installing and removing
a fan tray."
1 2
3 4 5
6
7 8 9
10
14 13
11
12

HPE FlexFabric 5710 Series Specifications

General

Model	HPE FlexFabric 5710 Series
Power Supply	AC or DC
Operating Temperature	0°C to 45°C
Routing Protocol	OSPF, BGP, RIP
Input Voltage	100-240V AC
Operating Humidity	10% to 90% (non-condensing)
Jumbo Frame Support	Up to 9216 bytes
Management	CLI, SNMP
