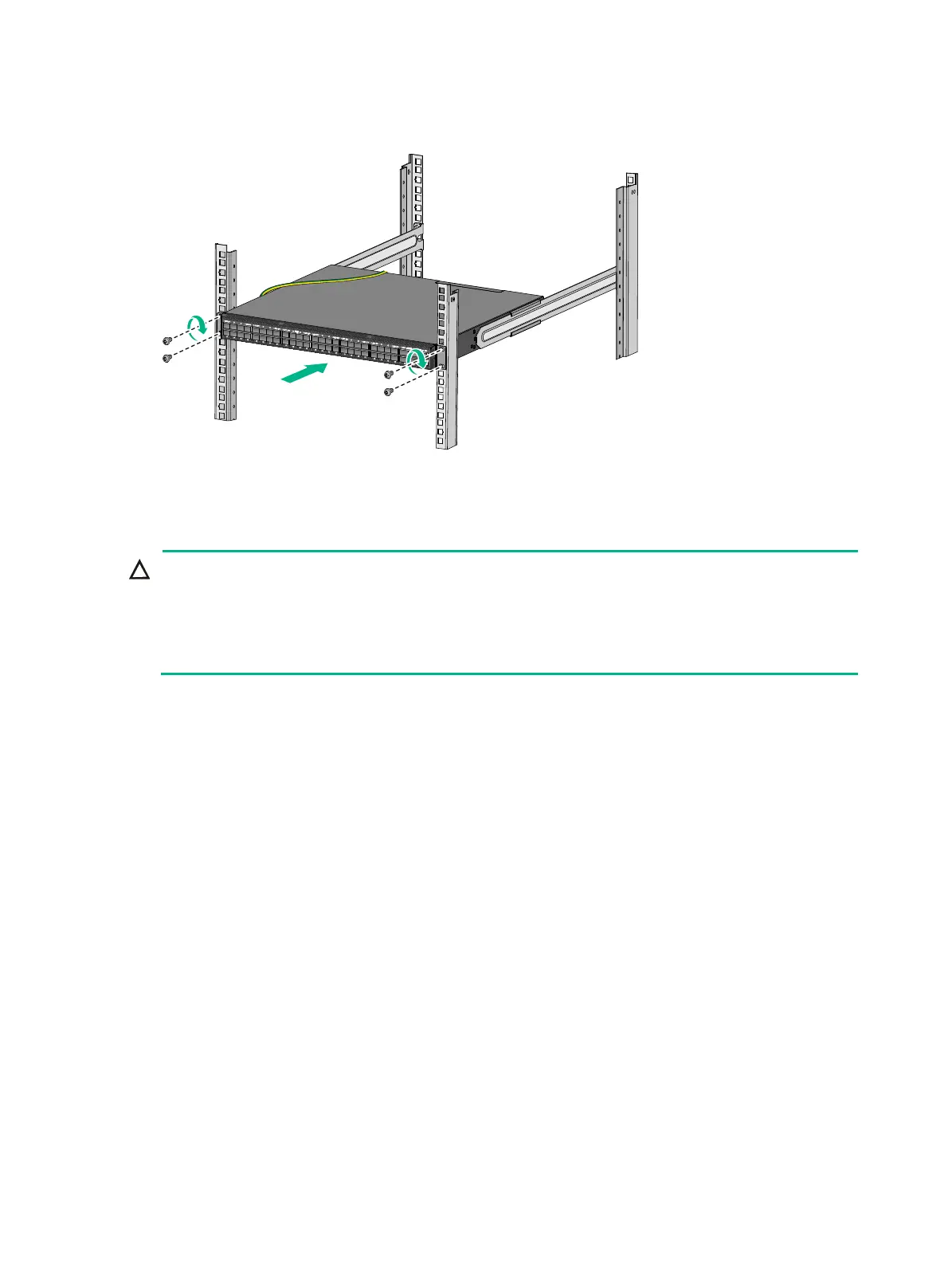

Figure 17 Mounting an HPE 5710-54HF switch in the rack (mounting brackets installed near
the port side)
Grounding the switch by using a grounding strip
CAUTION:
• Correctly connecting the grounding cable is crucial to lightning protection and EMI protection.
• Do not connect the grounding cable to a fire main or lightning rod.
• To guarantee the grounding effect and avoid switch damage, use the grounding cable provided
with the switch to connect the switch to a grounding strip in the equipment room.
The power input end of the switch has a noise filter, whose central ground is directly connected to the
chassis to form the chassis ground (commonly known as PGND). You must securely connect this
chassis ground to the earth so the faradism and leakage electricity can be safely released to the
earth to minimize EMI susceptibility of the switch.
To ground the switch by using a grounding strip:
1. Attach the two-hole grounding lug at one end of the grounding cable to a grounding point on the
switch chassis. For more information, see "Connecting the grounding cable to the chassis."
2. Remove the hex nut of a grounding post on the grounding strip.
3. Attach the ring terminal at the other end of the grounding cable to the grounding post on the
grounding strip, and secure the ring terminal to the grounding post with the hex nut.

HPE FlexFabric 5710 Series Specifications

General

Model	HPE FlexFabric 5710 Series
Power Supply	AC or DC
Operating Temperature	0°C to 45°C
Routing Protocol	OSPF, BGP, RIP
Input Voltage	100-240V AC
Operating Humidity	10% to 90% (non-condensing)
Jumbo Frame Support	Up to 9216 bytes
Management	CLI, SNMP
