12
3. Align the two-hole grounding lug at one end of the cable with the grounding holes of the
grounding point, insert the grounding screws into the holes, and tighten the screws with a
screwdriver, as shown in Figure 14.

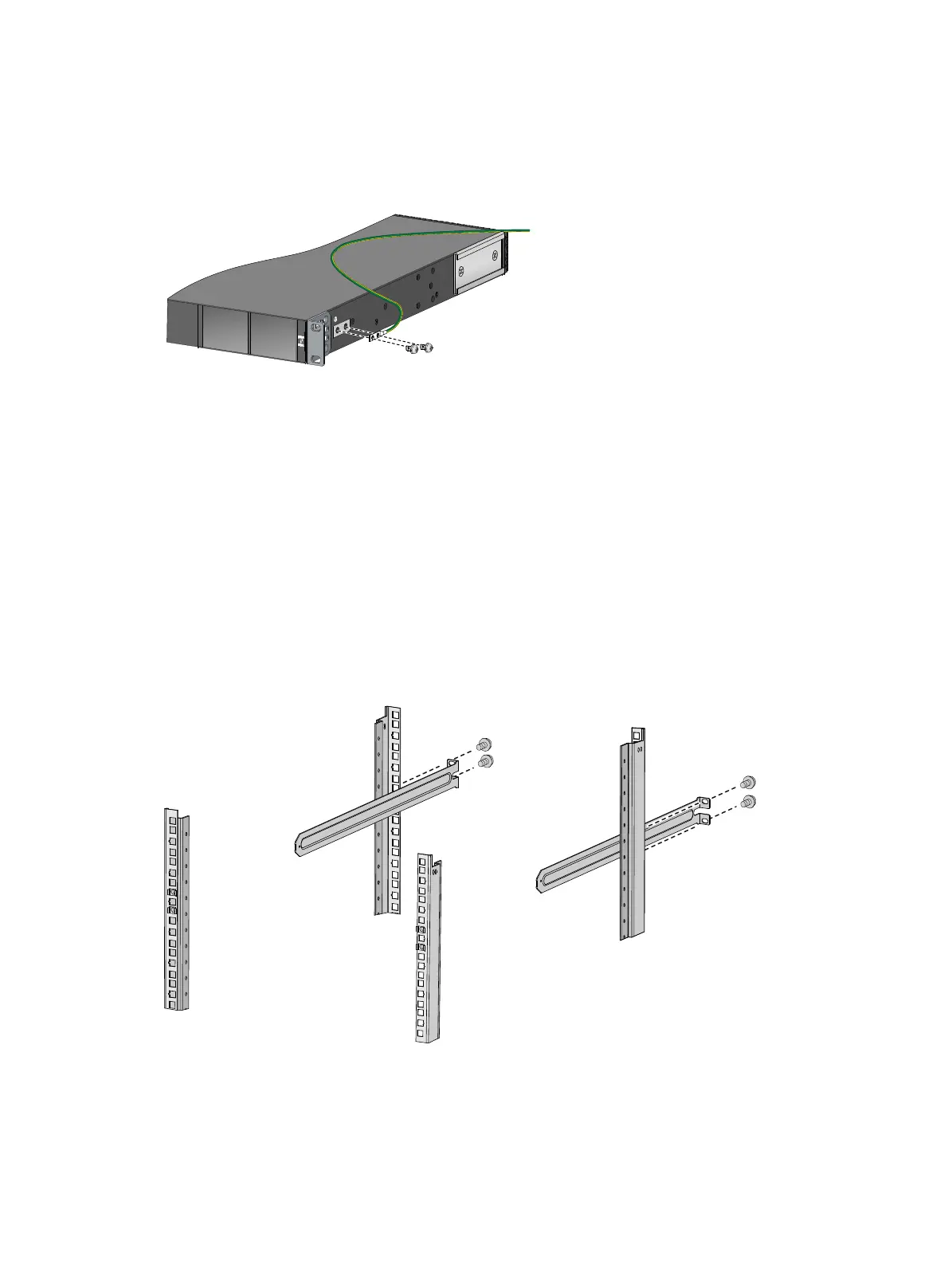

Figure 14
Attaching the grounding cable to the primary grounding point on an HPE
5710-54HF switch
Attaching the slide rails to the rack
The procedures are the same for attaching slide rails to the rack. This section uses the 1U long slide
rails as an example.
To attach the slide rails to the rack:
1. Identify the rack attachment position for the slide rails.
2. Install floating nuts (user-supplied) in the mounting holes in the rack posts.
3. Align the screw holes in one slide rail with the floating nuts in the rack post on one side, and use
screws (user-supplied) to attach the slide rail to the rack, as shown in Figure 15.
4. Rep
eat the preceding steps to attach the other slide rail to the rack post on the other side.
Keep the two slide rails at the same height so the slide rails can attach into the chassis rails.
Figure 15 Installing the 1U long slide rails
