To isolate IPv4 and IPv6 traffic at Layer 2, configure protocol-based VLANs to associate the IPv4 and
ARP protocols with VLAN 100, and associate the IPv6 protocol with VLAN 200.

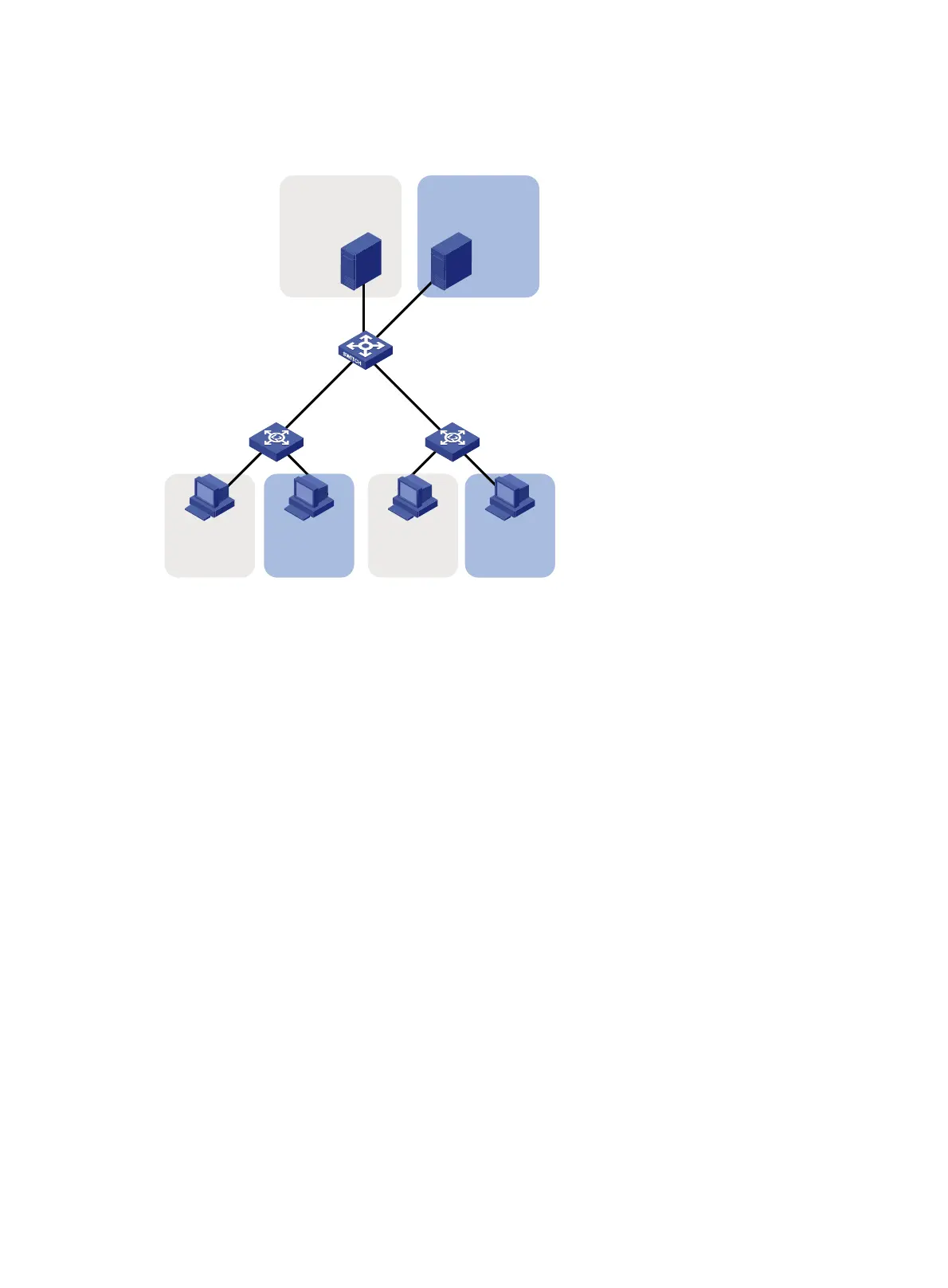

Figure 41 Network diagram
Configuration procedure
In this example, L2 Switch A and L2 Switch B use the factory configuration.
1. Configure Device:
# Create VLAN 100, and configure the description for VLAN 100 as protocol VLAN for IPv4.
<Device> system-view
[Device] vlan 100
[Device-vlan100] description protocol VLAN for IPv4
# Assign GigabitEthernet 1/0/11 to VLAN 100.
[Device-vlan100] port gigabitethernet 1/0/11
[Device-vlan100] quit
# Create VLAN 200, and configure the description for VLAN 200 as protocol VLAN for IPv6.
[Device] vlan 200
[Device-vlan200] description protocol VLAN for IPv6
# Assign GigabitEthernet 1/0/12 to VLAN 200.
[Device-vlan200] port gigabitethernet 1/0/12
# Configure VLAN 200 as a protocol-based VLAN, and create an IPv6 protocol template with
the index 1 for VLAN 200.
[Device-vlan200] protocol-vlan 1 ipv6
[Device-vlan200] quit
# Configure VLAN 100 as a protocol-based VLAN, and create an IPv4 protocol template with
the index 1 for VLAN 100.
[Device] vlan 100
[Device-vlan100] protocol-vlan 1 ipv4
# Create an ARP protocol template with the index 2 for VLAN 100. (In Ethernet II encapsulation,
the protocol type ID for ARP is 0x0806.)
GE1/0/2GE1/0/1
GE1/0/11
GE1/0/12
IPv4 Host A IPv4 Host BIPv6 Host A IPv6 Host B
IPv4 server IPv6 server
Device
L2 Switch A
L2 Switch B
VLAN 100 VLAN 100
VLAN 100
VLAN 200 VLAN 200
VLAN 200
