HPE FlexNetwork 5130 HI SERIES Configuration Guide

242
Trap flag : No
MED trap flag : No
Polling interval : 0s
Number of LLDP neighbors : 0
Number of MED neighbors : 0
Number of CDP neighbors : 0
Number of sent optional TLV : 0
Number of received unknown TLV : 0
LLDP agent nearest-nontpmr:
Port status of LLDP : Enable
Admin status : Disable
Trap flag : No
MED trap flag : No
Polling interval : 0s
Number of LLDP neighbors : 0
Number of MED neighbors : 0
Number of CDP neighbors : 0
Number of sent optional TLV : 1
Number of received unknown TLV : 0
LLDP agent nearest-customer:
Port status of LLDP : Enable
Admin status : Disable
Trap flag : No
MED trap flag : No
Polling interval : 0s
Number of LLDP neighbors : 0
Number of MED neighbors : 0
Number of CDP neighbors : 0
Number of sent optional TLV : 16
Number of received unknown TLV : 0
CDP-compatible LLDP configuration example
Network requirements
As shown in Figure 59, GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2 of Switch A are each
connected to a Cisco IP phone, which sends VLAN-tagged voice traffic.
Configure voice VLAN 2 on Switch A. Enable CDP compatibility of LLDP on Switch A to allow the
Cisco IP phones to automatically configure the voice VLAN. The voice VLAN feature performs the
following actions:
• Confines the voice traffic to the voice VLAN.
• Isolates the voice traffic from other types of traffic.

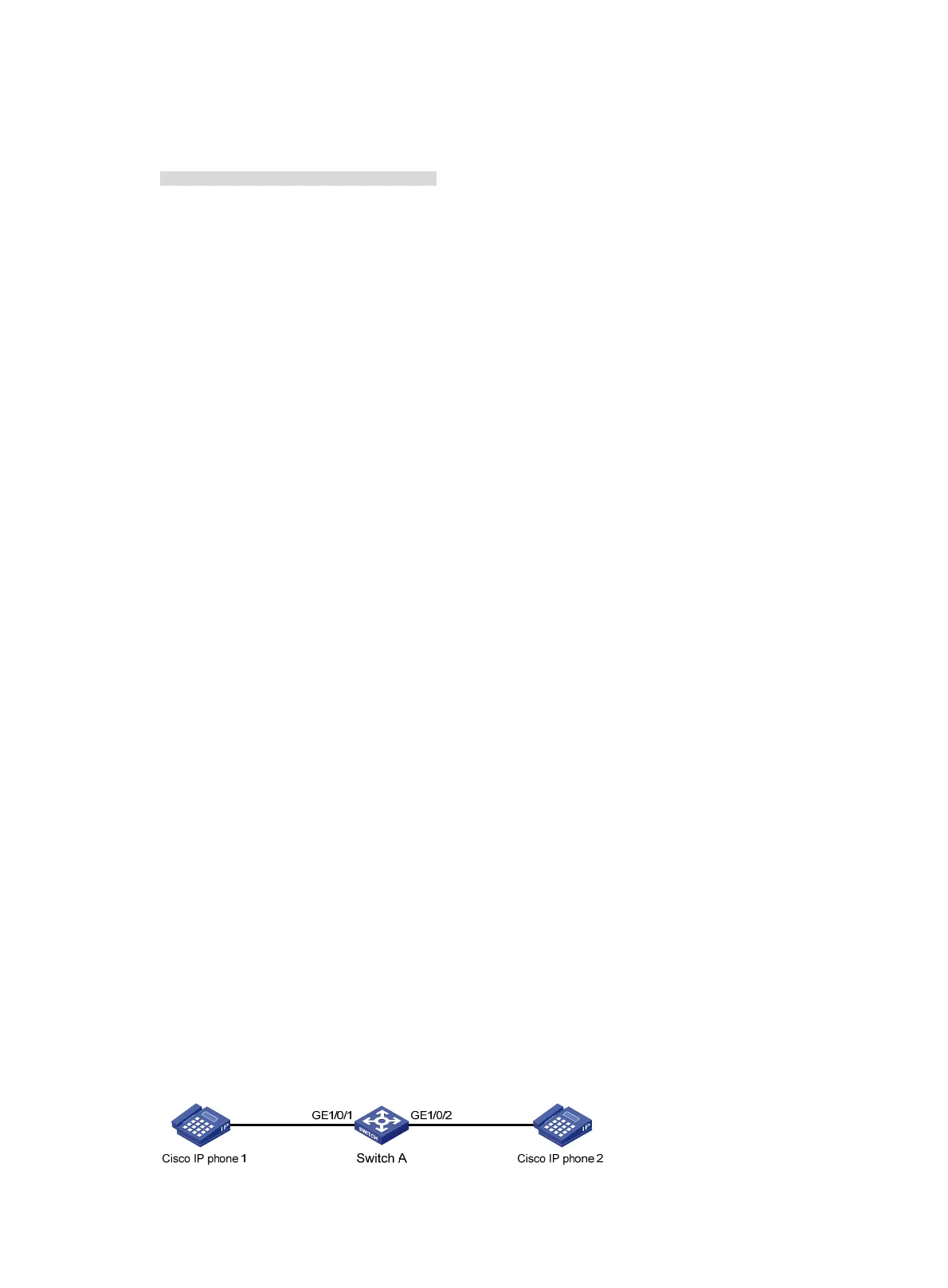

Figure 73 Network diagram

HPE FlexNetwork 5130 HI SERIES Specifications

General

Brand	HPE
Model	FlexNetwork 5130 HI SERIES
Category	Switch
Language	English
