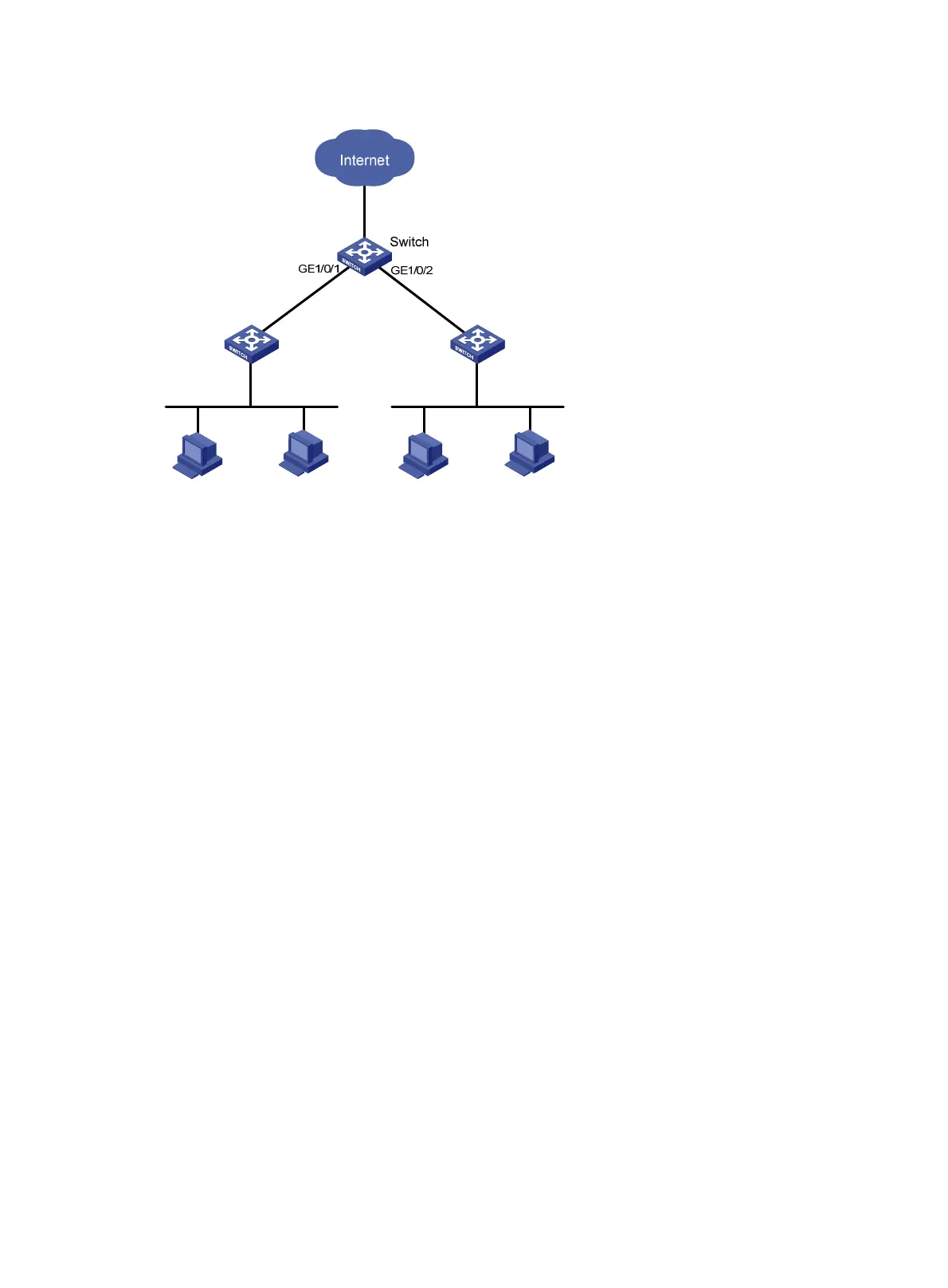

Figure 23 Network diagram

Configuration procedure

# Configure a hierarchical CAR action named http according to the rate limit requirements.

<Switch> system-view

[Switch] qos car http hierarchy cir 320

# Configure ACL 3000 to match HTTP packets.

[Switch] acl number 3000

[Switch-acl-adv-3000] rule permit tcp destination-port eq 80

[Switch-acl-adv-3000] quit

# Create traffic class 1, and use ACL 3000 as the match criterion in the traffic class.

[Switch] traffic classifier 1

[Switch-classifier-1] if-match acl 3000

[Switch-classifier-1] quit

# Configure a common CAR action in traffic behavior 1, and use hierarchical CAR action http, with

the collaborating mode being AND.

[Switch] traffic behavior 1

[Switch-behavior-1] car cir 240 hierarchy-car http mode and

[Switch-behavior-1] quit

# Create a QoS policy named http, and associate traffic class 1 with traffic behavior 1 in the QoS

policy.

[Switch] qos policy http

[Switch-qospolicy-http] classifier 1 behavior 1

[Switch-qospolicy-http] quit

# Apply QoS policy http to the incoming traffic of GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2.

[Switch] interface gigabitethernet 1/0/1

[Switch-GigabitEthernet1/0/1] qos apply policy http inbound

[Switch-GigabitEthernet1/0/1] quit

[Switch] interface gigabitethernet 1/0/2

[Switch-GigabitEthernet1/0/2] qos apply policy http inbound
