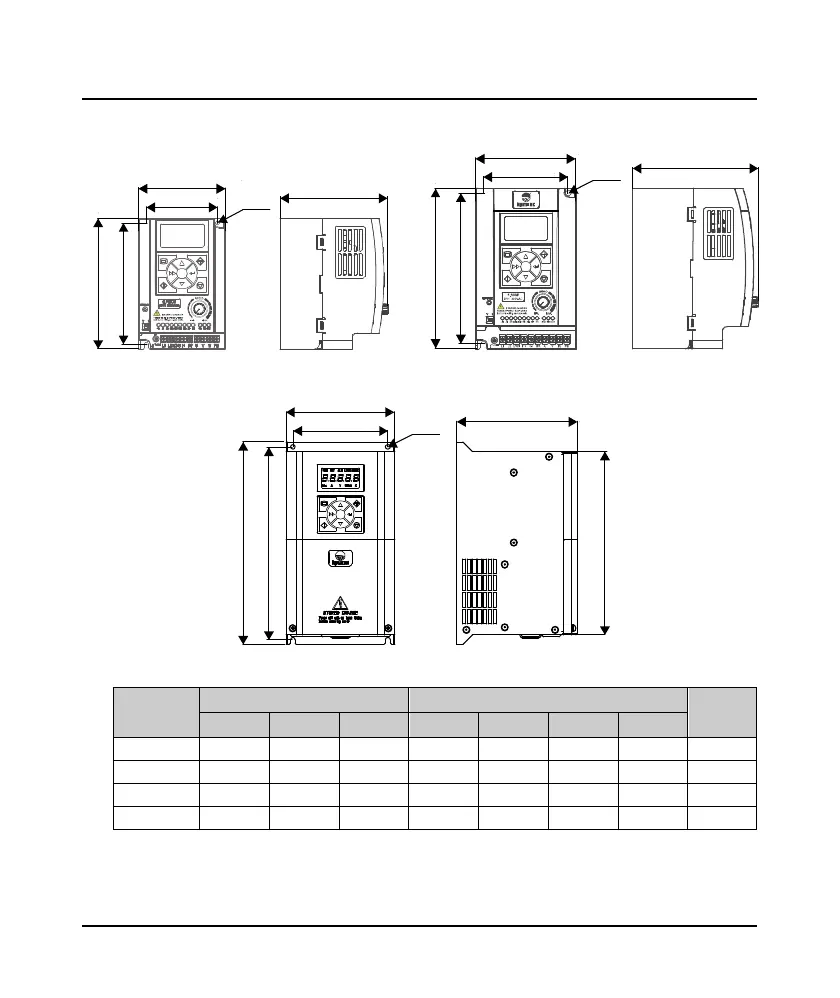

2.2 Dimension and Weight
Frame1 / Frame2
Frame3 / Frame4
Table 2-1 HD3N-TC dimension
Size
Dimension (mm) Mounting size (mm)
G.W. (kg)
W H D W1 H1 H2 d
Frame 1 100 150 125 82 140 / 5 1.5
Frame 2 116 185 145 98 174 / 6.5 2.7
Frame 3 140 260 155 122 248 235 6 5.4
Frame 4 180 298 175 160 284 270 6 8.3
D
H
H1
W1
W
2-Ød
D
H
H1
W1
W
2-Ød
Frame 1 Frame 2
H
H1
W1
W
4-Ød
D
H2
