hpmont HD3N-TC Series User Manual

Shenzhen Hpmont Technology Co., Ltd. Chapter 1 Quick Start Guide
HD3N-TC Series Inverter User Manual V1.0 ―1―
Chapter 1 Quick Start Guide

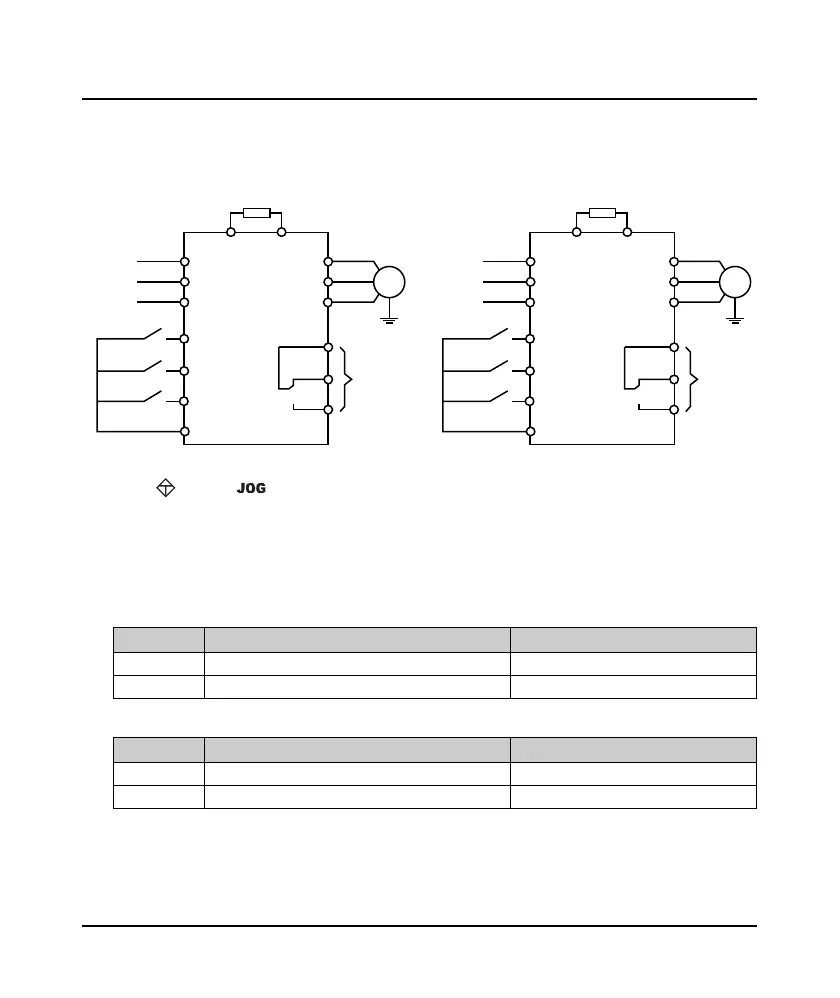

Wiring
Ensure c motor direction is correct
Press button ( ) on keypad to test run, and make sure when FWD command is given, crane
goes down, at REV command, crane raises.
If not, switch any two phase of motor, or set F00.17 = 1.
Ensure crane type
Crane without braking control (inverter does not need to control brake, e.g., conic rotor type motor).
Set below parameters:
Ref. code Parameter Setting
F00.01 Motor 1 control mode 1 (Vector control 1 without PG)
F00.05 Braking tpye selection 0 (No braking control)
Crane with auto braking control (inverter needs to control brake). Set below parameters:
Ref. code Parameter Setting
F00.01 Motor 1 control mode 0 (V/f control without PG)
F00.05 Braking type selection 1 (Auto braking control)
DI1
DI2
DI3
R1A
R1C
R1B
Up
Power
supply
Power
supply
Down
Hi/Lo speed
GND
L1
L2
L3/N
U
V
W
M
(+) BR
Braking resistor
Frame 1 /
Frame 2 :
DI1
DI2
DI3
R1A
R1C
R1B
Up
Down
Hi/Lo speed
COM
L1
L2
L3
U
V
W
Brake
output
Brake
output
M
(+) BR
Braking resistor
Frame 3 /
Frame 4 :
