hpmont HD3N-TC Series User Manual

Shenzhen Hpmont Technology Co., Ltd. Chapter 3 Electrical Installation
HD3N-TC Series Inverter User Manual V1.0 ―11―
3.4 Control Board for Frame3 / Frame4
3.4.1 Jumper

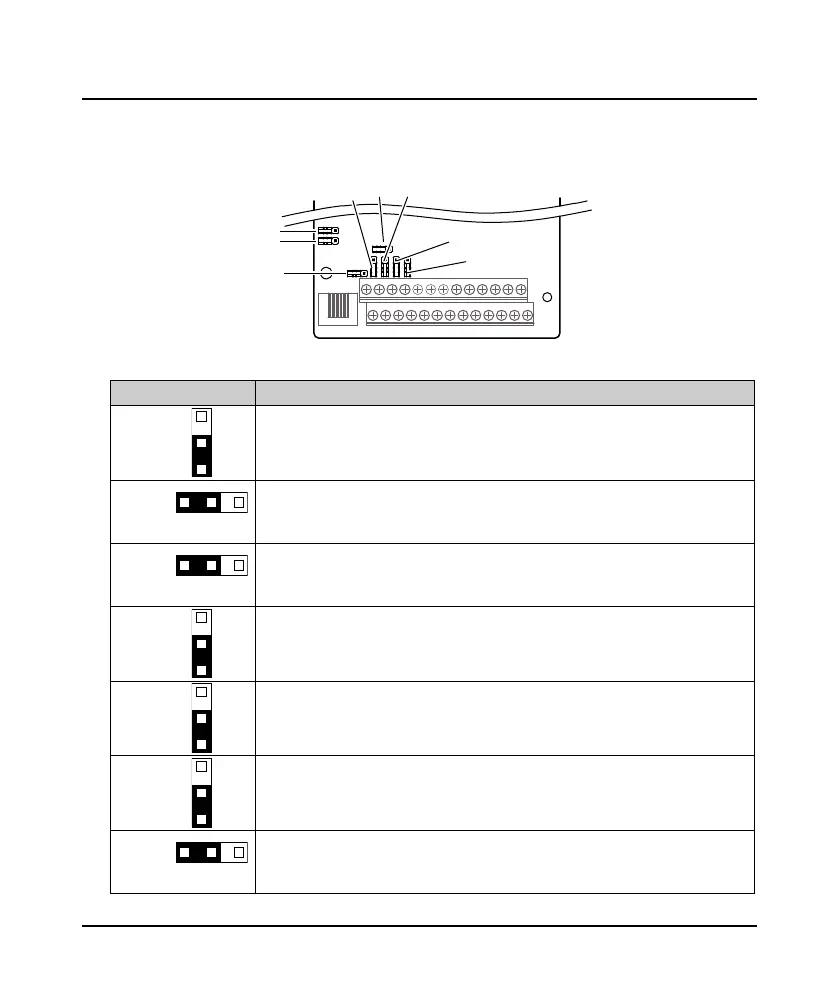

Figure 3-5 Frame3 / Frame4 jumper
Table 3-4 Frame3 / Frame4 jumper description
Jumper Description
CN2
AI2 can select voltage or current signal.
• Pin 1 &,2 are short-connected, AI2 inputs voltage signal (factory setting);
• Pin 2 & 3 are short-connected, AI2 inputs current signal.
CN4
In interferential occasion, connecting PE and COM can increase immunity.
• Pin 1 & 2 are short-connected, PE and COM are not connected (factory setting);
• Pin 2 & 3 are short-connected, PE and COM are connected.
CN5
In interferential occasion, connecting PE and GND can increase immunity.
• Pin 1 & 2 are short-connected, PE and GND are not connected (factory setting);
• Pin 2 & 3 are short-connected, PE and GND are connected.
CN6
Impetance when AI2 = input current signal:
• Pin 1 & 2 are short-connected, impetance = 500Ω (factory setting);
• Pin 2 & 3 are short-connected, impetance = 250Ω.
CN7
AO1 can select voltage or current signal.
• Pin 1 & 2 are short-connected, AO1 outputs voltage signal (factory setting);
• Pin 2 & 3 are short-connected, AO1outputs current signal.
CN8
AO2 can select voltage or current signal.
• Pin 1 & 2 are short-connected, AO2 outputs voltage signal (factory setting);
• Pin 2 & 3 are short-connected, AO2 outputs current signal.
CN9
SCI communication can select proper resistance.
• Pin 1 & 2 are short-connected, no resistance (factory setting);
• Pin 2 & 3 are short-connected, select proper resistance.
CN5
CN4
CN15
CN9
CN6
CN8
CN7
CN2
Control
Board
1
3
1
3
1
3
1
3
1
3
1
3
1
3
