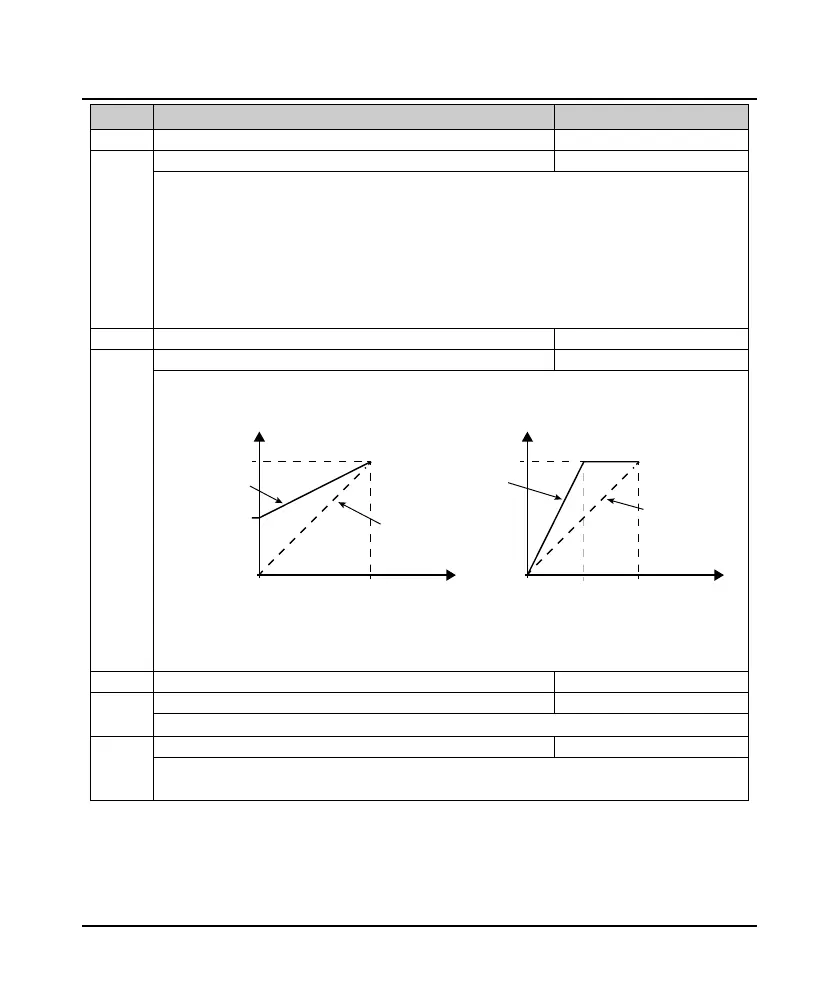

Chapter 5 Function Introduction Shenzhen Hpmont Technology Co., Ltd.
52 HD3N-TC Series Inverter User Manual V1.0
Ref. code Name Description Setting Range [Default]
F16.20 AO2 function 0 - 15 [0]
F16.21 High-speed pulse output function 0 - 15 [0]
0: Unused.
1,2: Output frequency / setting frequency (0 - max.
output frequency).
3: Motor RPM (0 - max. output frequency
corresponding to RPM).
5: Output current (0 - twice rated current of motor).
10: Output torque (0 - 3 times rated torque of
motor).
11: Output torque (0 - 1.2 times rated voltage of
inverter).
12: Bus voltage (0 - 2.2 times rated voltage of
inverter).
14: AI1 input (0 - max. AI1 after calculating).
15: AI2 input (0 - max. AI2 after calculating).
F16.22 AO1 bias -100.0 - 100.0 [0.0%]
F16.23 AO1 gain 0.0 - 200.0 [100.0%]
User can use output gain to adjust AO1 output. Below is a figure shows curve relationship between AO and
F16.22, F16.23.
AO gain and bias formula: actual output (%) = F16.23×value before calculating (%) + F16.22
By short-connecting pin 2&3 in CN7 and CN8, AO1 analogue output can achieve 0 - 20mA output. (apply
to motor ≥ 7.5kw)
To achieve 4 - 20mA output: set F16.22 = 20.0%, F16.23 = 80.0% (4mA corresponds to 0%, 20mA
corresponds to100%).
F16.24 AO2 bias -100.0 - 100.0 [0.0%]
F16.25 AO2 gain 0.0 - 200.0 [100.0%]
Refer to F16.22, F16.23.
F16.26 DO2 max. output pulse frequency 0.1 - 10.0 [10.0kHz]
Defines max. frequency that DO2 can output.
Frame1 / Frame 2: pulse output terminal is DO; Frame3 / Frame 4: pulse output terminal is DO2.
Value after calculating (V)
100%
F16.23=100%
F16.22=0
F16.22=0
F16.23=200%
Value after calculating (V)
F16.22=0
F16.23=100%
F16.22=50%
F16.23=50%
50%
100%
0V 10V 0V 5V 10V
Value before
calculating (V)
Value before
calculating (V)
