HM-E200 Programming Manual
ESC W xL xH yL yH dxL dxH dyL dyH
[Name] Set printing area in page mode
[Format] ASCII ESC W xL xH yL yH dxL dxH dyL dyH
Hex 1B 57 xL xH yL yH dxL dxH dyL dyH
Decimal 27 87 xL xH yL yH dxL dxH dyL dyH
[Range] 0 ≤ xL, xH, yL, yH, dxL, dxH, dyL, dyH ≤ 255
(except for dxL= dxH=0 or dyL= dyH=0)
[Description] Set the size and position of the printing area in page mode as follows:
Horizontal starting position: x0=
[( xL + xH × 256) × 0.125mm]
Vertical starting position: y0 = [( yL + yH × 256) × 0.125mm]
Printing area width: dx = [ (dxL + dxH × 256) ×0.125mm]
Printing area height: dy = [ (dyL + dyH × 256) ×0.125mm]
[Note] •This command is processed in standard mode to set an activated internal flag so that
don't influence printing.
• The printer stop processing this command once horizontal starting position or vertical
starting position ran out of the printing area, the subsequent data are processed as
normal one.
• The printer stop processing this command once printing area width or height was set
to 0, the subsequent data are processed as normal one.
• This command confirms the current printing position with command ESC T.
•The default set of printing area width is horizontal printable width - horizontal starting
position if the value of horizontal starting position + printing area width was beyond
printable area.
• The default set of printing area height is vertical printable height - vertical starting
position if the value of vertical starting position + printing area height was beyond
printable area.
• The default settings of the horizontal and vertical motion units are 0.125mm.

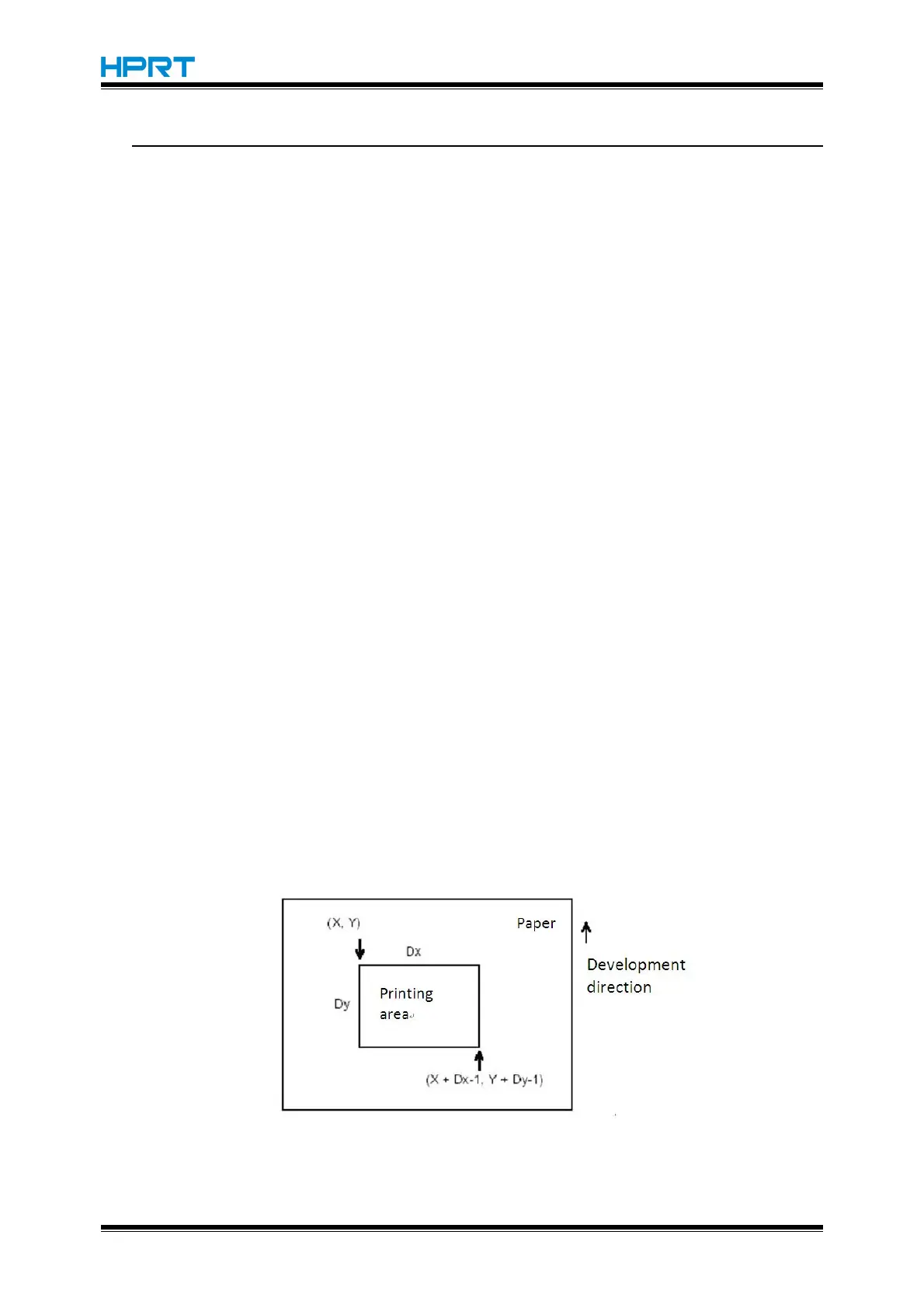

•Assuming horizontal starting position, vertical starting position, printing area width and
printing area height X, Y, Dx, Dy, set the printing area as shown below:
[Default] xL = xH = yL = yH = 0
dxL, dxH, dyL and dyH decided by printer settings
