HM-E200 Programming Manual
GS v 0 m xL xH yL yH d1....dk
[Name] Print raster bit image
[Format] ASCII GS v 0 m xL xH yL yH d1...dk
Hex 1D 76 30 m xL xH yL yH d1...dk
Decimal 29 118 48 m xL xH yL yH d1...dk
[Range] 0 ≤ m ≤ 3,
48 ≤ m ≤ 51
0 ≤ xL ≤ 255
0 ≤ xH ≤ 255
0 ≤ yL ≤ 255
0 ≤ d ≤ 255
[Description]
k = ( xL + xH × 256) × ( yL + yH × 256) ( k ≠ 0)
print raster bit image, using m to select raster bit image mode:
m mode Vertical Dot Density (DPI) Horizontal Dot Density(DPI)
0, 48 normal 203 DPI 203 DPI
1, 49 double width 203 DPI 101 DPI
2, 50 double height 101DPI 203 DPI
3, 51 quadruple 101DPI 101 DPI
• xL、xH indicates the number of bit image bytes in horizontal direction（xL+ xH ×
256）
• yL、yH indicates the number of bit image bytes in vertical direction （yL+ yH × 256）.
[Note] • In standard mode, this command is effective only when there is no data in the print
buffer.
• Printing modes, such as
characters amplification/ emphasized/ double-strike/ underline/
white/ black reverse/
upside-down printing, etc., are effective to this command.
• The part exceeds printing area is not to be printed.
• ESC a (
select justification) is effective to raster bit image.
• If this command is received while a macro is being defined, the printer ends macro
definition mode and execute it. This command is not part of macro definition.
• d indicates the bit image data. Set a bit to 1 to print a dot, or set a bit to 0 to not print a
dot.

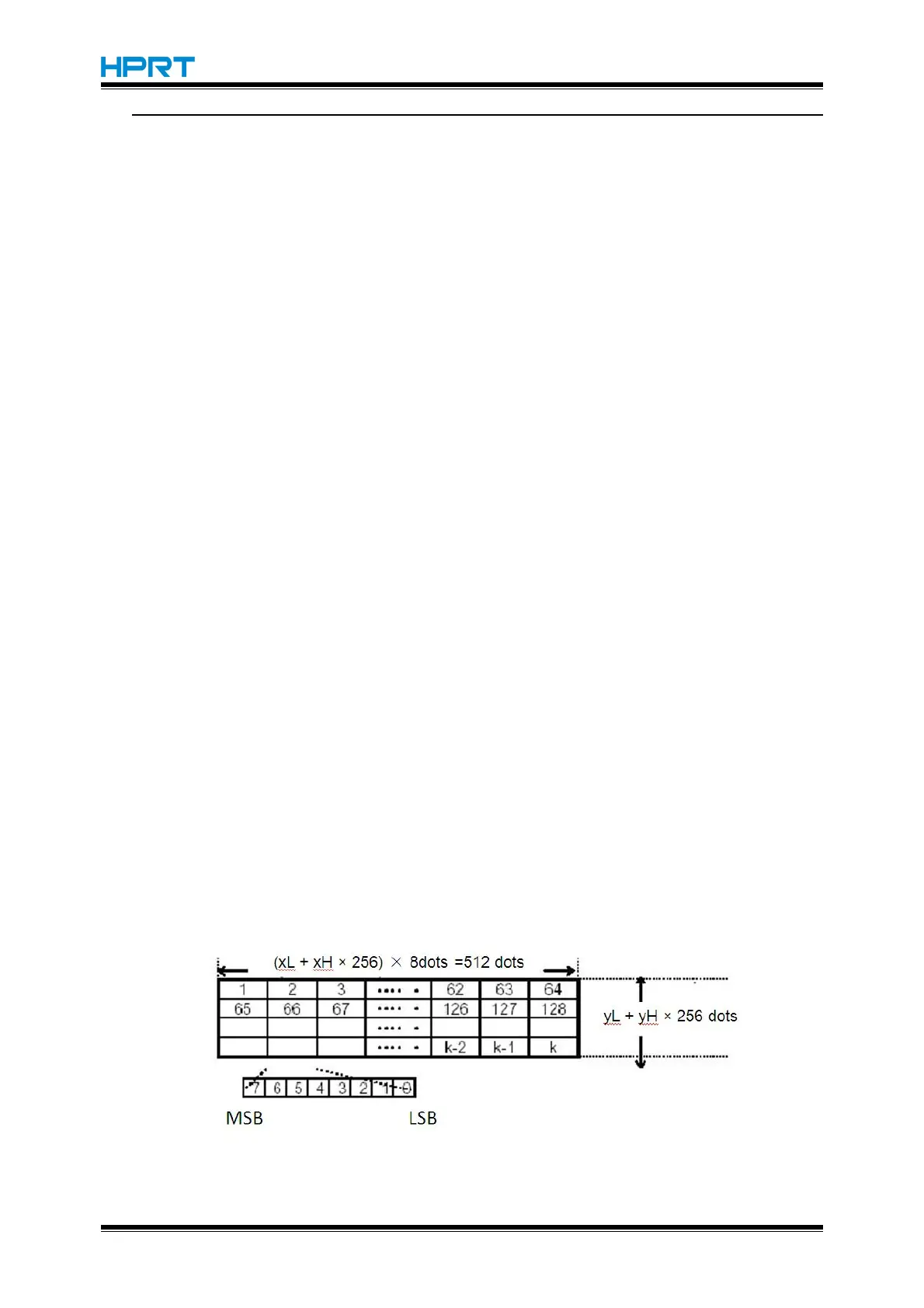

[Example] When xL+ xH × 256 = 64,
