HM-E200 Programming Manual
49
Example

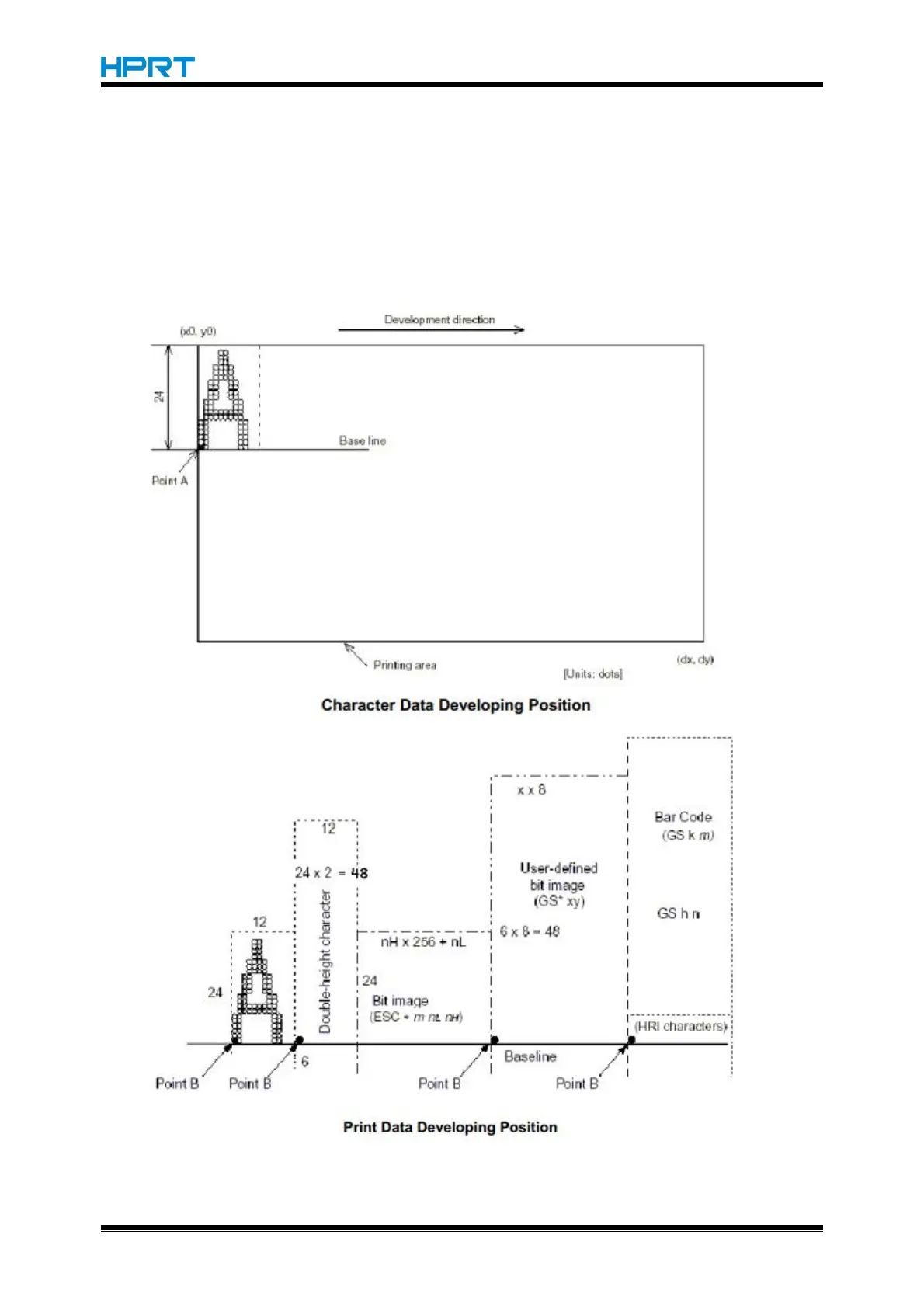

When printing a downloaded bit image of six bytes in the vertical direction, use the following formula:
{number of vertical dots (8 ×6) - number of dots for feeding at the beginning of the printable
area (24)} × vertical motion unit ( 203/203 ) = 24
Therefore, 24 dots are required for feeding.
Use the following commands:
ESC W xL , xH, yL, yH, dxL , dxH , dyL , dyH
ESC T n
ESC 3 24 ¬ Set line spacing to be added.
LF
GS / 1
ESC 2 ¬ Reset the line spacing to 1/6 inch.
