I-V600
EN - 37

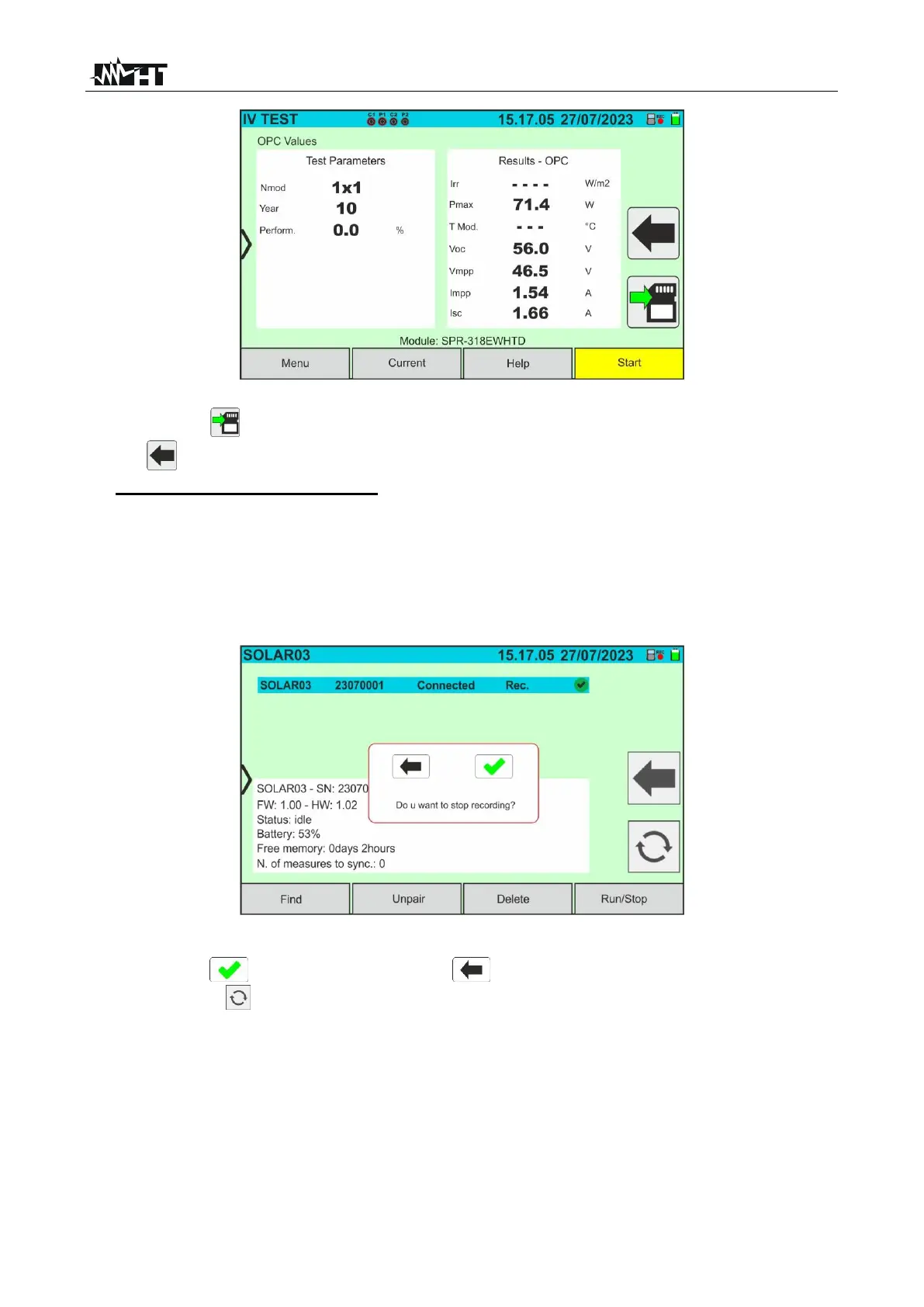

Fig. 43: I-V curve measurement result @OPC with synchronous recording
9. Tap on the icon to save the measurements to the internal memory (see § 7.1) or on
the icon to exit without saving
10. At the end of the test session, disconnect the SOLAR03 remote unit and bring it back
close to the instrument
11. Tap on the "SOLAR03 key to access the control and management section of the
SOLAR03 remote unit (see § 6.2) and wait for the automatic reconnection to the
instrument. The "N. of measures to sync.” parameter indicates the value of the stored
measurements waiting for values from the SOLAR03 unit.
12. Tap on the "Start/Stop” key to end the recording. The following screen will appear
Fig. 44: Ending recording on the remote unit
13. Tap on the key to confirm or on the key to exit without proceeding
14. Tap on the icon to download (synchronise) the irradiance/temperature values
recorded by the SOLAR03 remote unit to the instrument. The N. of measures to
sync.” parameter must take the value '0'
15. The instrument will automatically update the previously saved @OPC values and, if
calculated correctly, will perform the translation to the @STC values without the need
for further saving.
16. Access the memory area (see § 7.2) to retrieve the saved measurements
