Drive Backplane Power and Signal Cabling

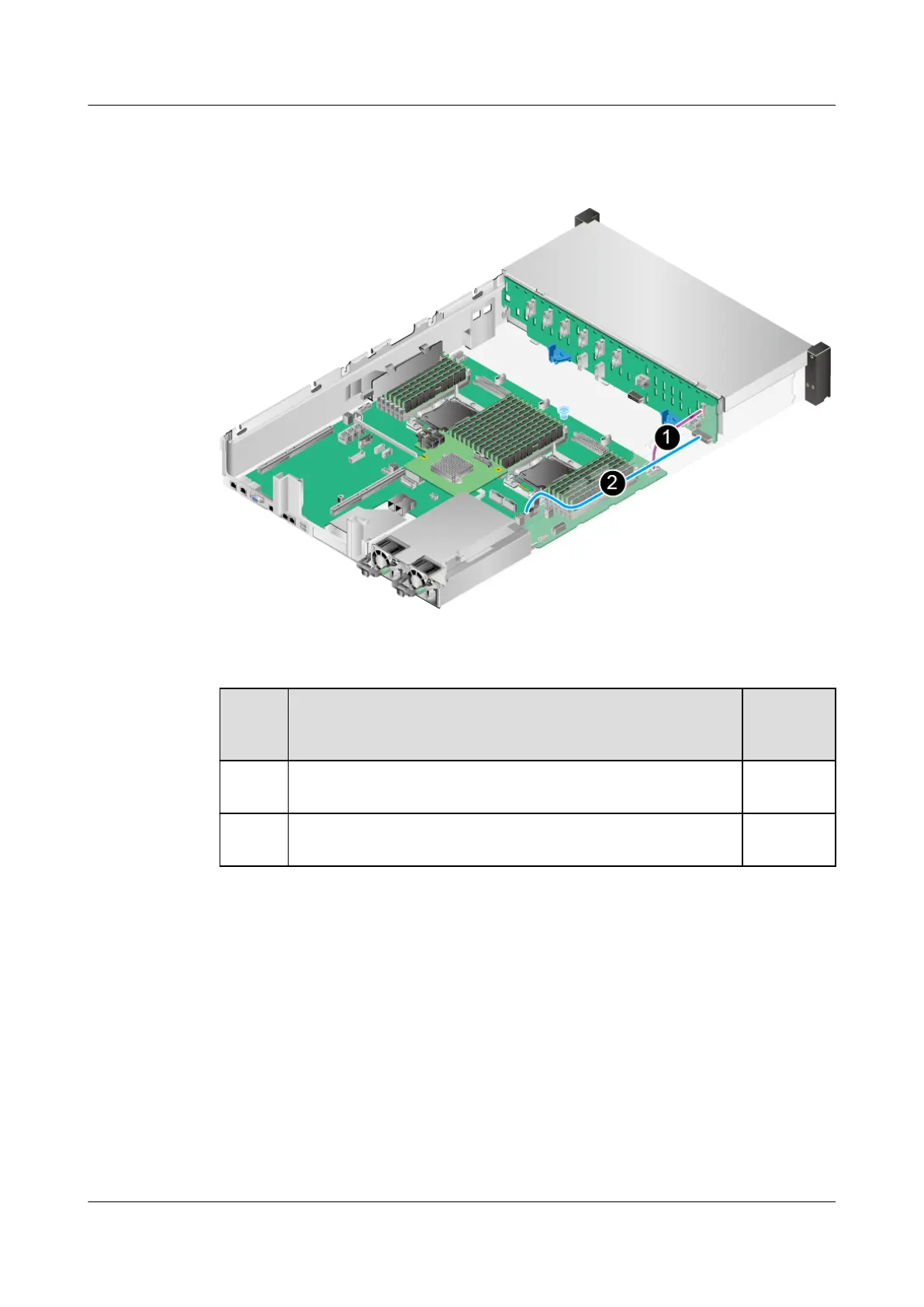

Figure 7-34 Drive backplane power and signal cabling
Table 7-34 Drive backplane power and signal cabling
No.
Description Huawei
Part
Number
1 Indicator signal cable for connecting the front drive backplane
(J41) to the mainboard (J162)
04080588
2 Power cable for connecting the front drive backplane (J37) to the
mainboard (J166)
04152142
