NVMe SSD Adapter Signal Cabling

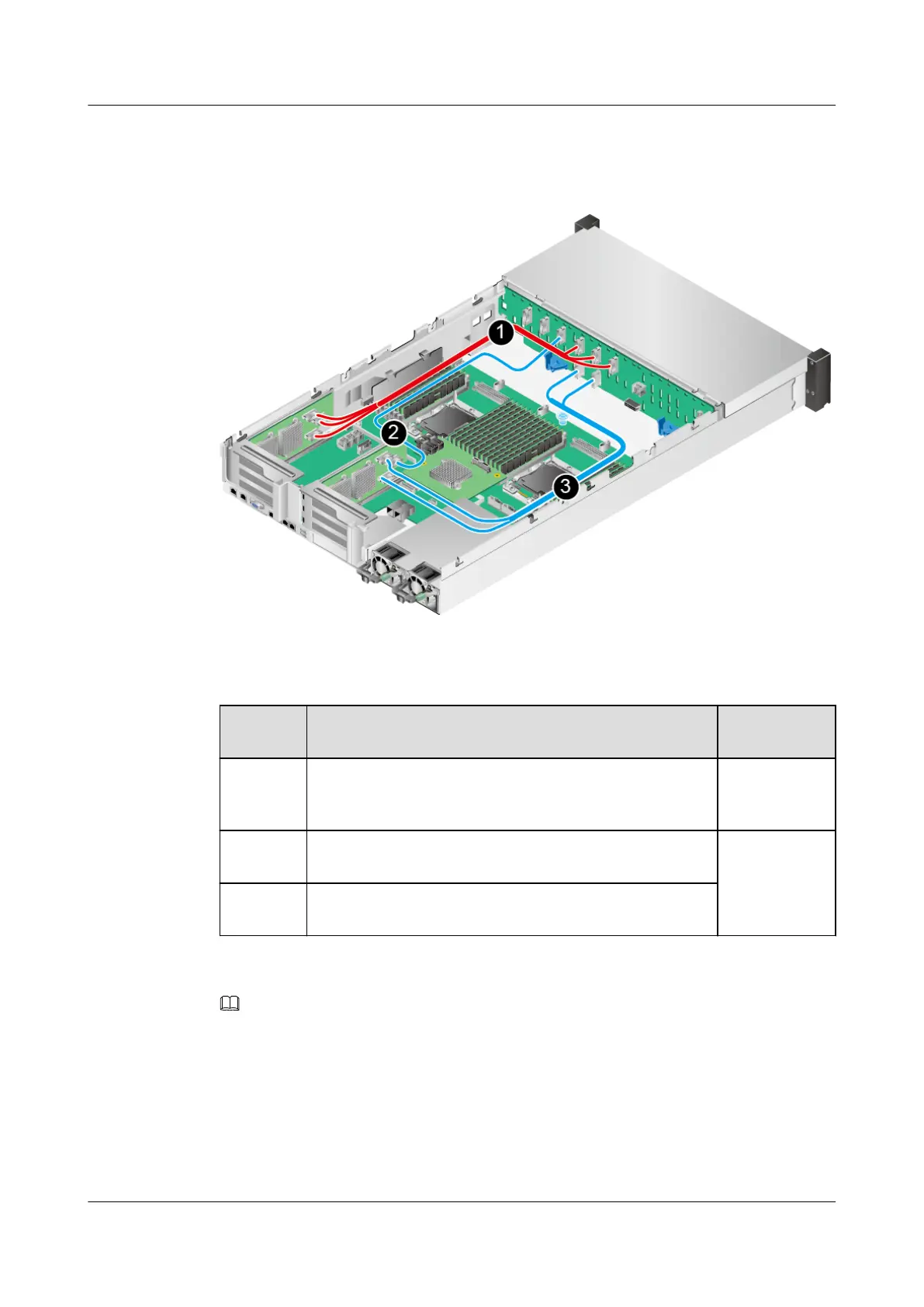

Figure 7-37 NVMe SSD adapter signal cabling
Table 7-37 NVMe SSD adapter signal cabling
No.
Description Huawei Part
Number
1 Slimline cable for connecting port 1A/port 1B/port 1C
(J17/J18/J19) of the front drive backplane to NVMe SSD
adapter 1
04052103-001
2 Slimline cable for connecting port 2C (J31) of the front
drive backplane to port C of NVMe SSD adapter 2
04052104-001
3 Slimline cable for connecting port 2A/port 2B (J21/J32) of
the front drive backplane to NVMe SSD adapter 2
NOTE
l Connect cables according to port labels on cables and silkscreens on the adapter and drive
backplane. For example, connect the cable labeled PORT A to port A on the adapter and drive
backplane.
l Connect Slimline cables to ports 2A, 2B, and 2C first and then to ports 1A, 1B, and 1C.
l When connecting a Slimline cable, connect the cable with a shorter length, and then connect the
cable with a longer length.
l To facilitate operations, remove the backplane before removing the power cables.
2288H V5 Server
User Guide
7 Internal Cabling
Issue 04 (2018-09-04) Copyright © Huawei Technologies Co., Ltd. 211
