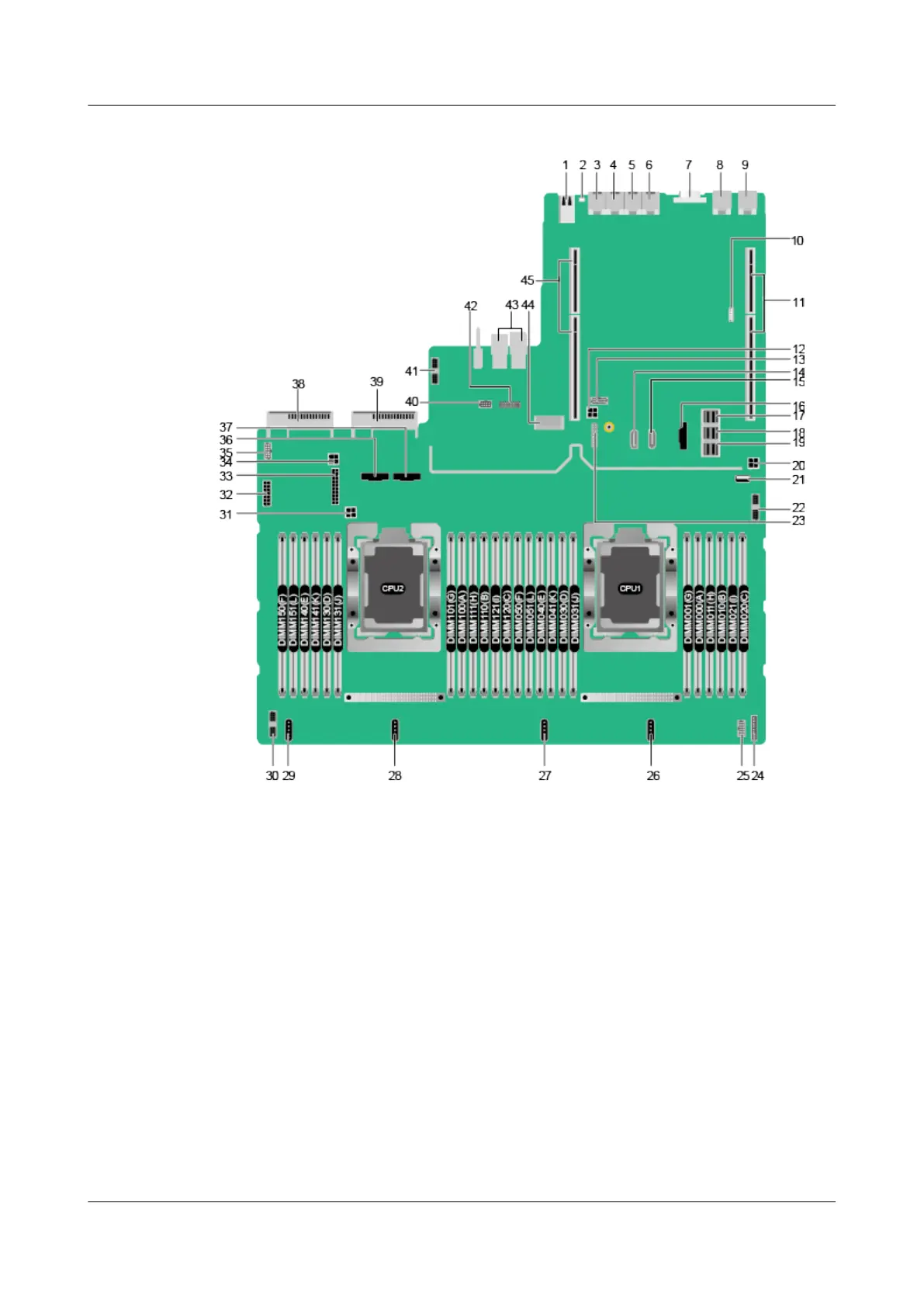

Figure 2-21 Mainboard components
1 USB 3.0 port (USB 3.0 CONN/J169) 2 UID indicator (D6020)
3 Serial port 4 Management network port
5 GE electrical port 6 GE electrical port
7 VGA connector (VGA CONN/J112) 8 10GE optical port (10GE PORT2/J132) or 10GE
electrical port (10GE PORT2/J101)
NOTE
A 10GE optical port is available on a mainboard
that provides two 10GE optical ports and two GE
electrical ports. A 10GE electrical port is available
on a mainboard that provides two 10GE and two
GE electrical ports.
2288H V5 Server
User Guide
2 Components
Issue 04 (2018-09-04) Copyright © Huawei Technologies Co., Ltd. 17
