When installed in I/O module 1, this riser card provides slots 1 to 3. When installed in I/O
module 2, this riser card provides slots 4 to 6.

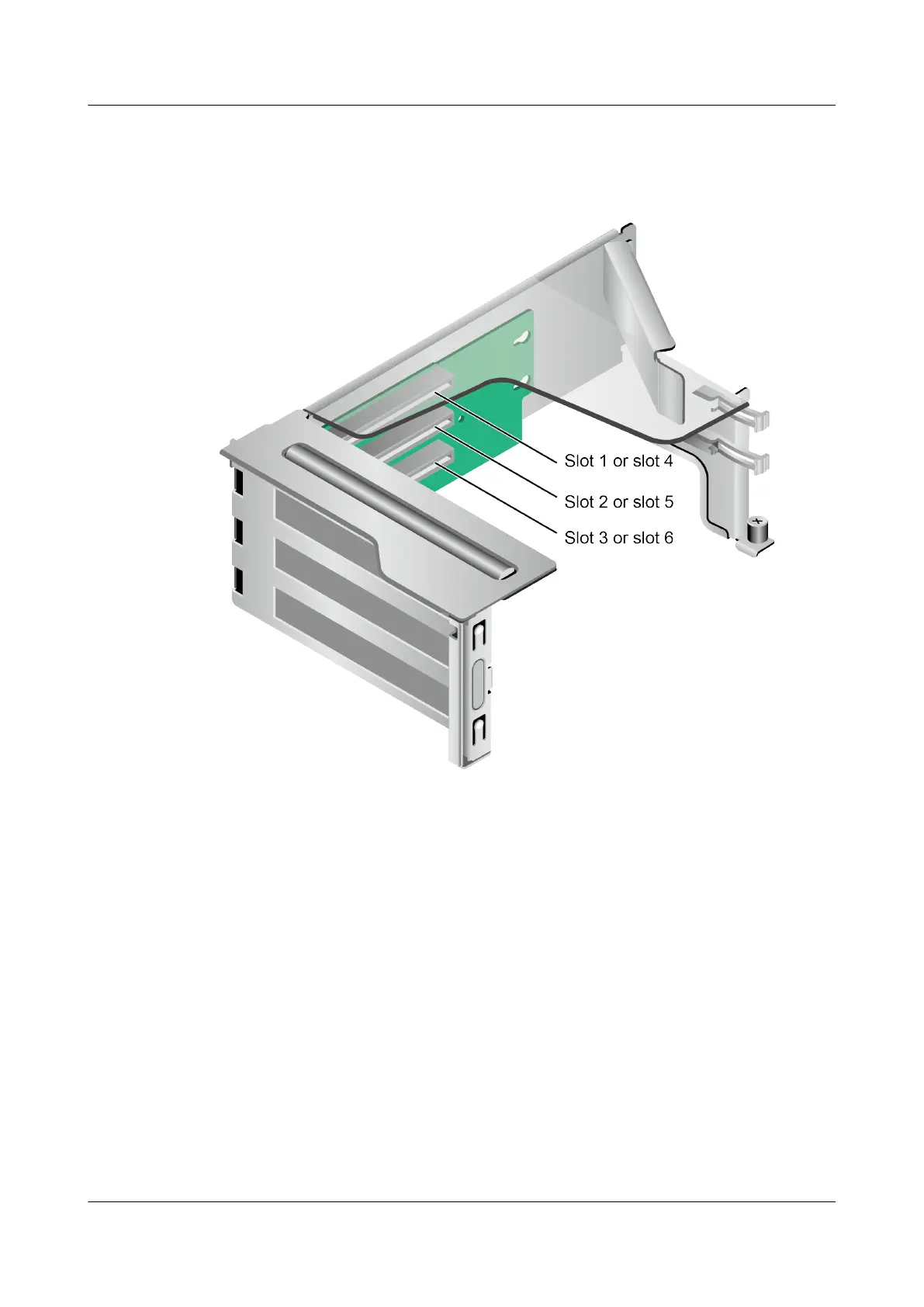

Figure 2-47 Riser card 3 (dedicated for PCIe SSD cards)
When installed in I/O module 1, this card provides slots 1 to 3. When installed in I/O module
2, this card provides slots 4 to 6.
2288H V5 Server
User Guide
2 Components
Issue 04 (2018-09-04) Copyright © Huawei Technologies Co., Ltd. 33
