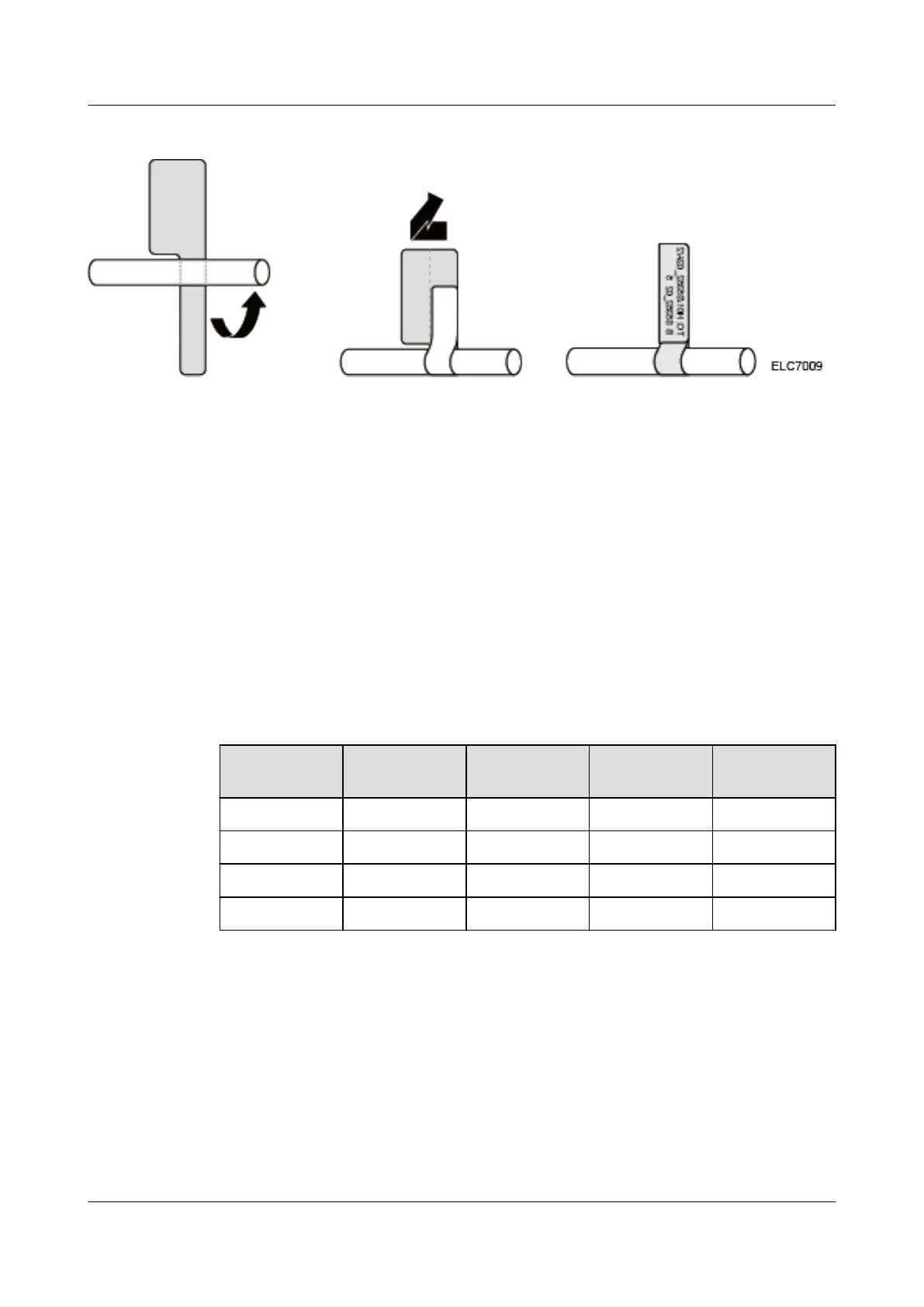

Figure A-7 Attaching a signal cable label (2)
A.2 Cable Installation Requirements
A.2.1 General Installation Requirements
This section describes the requirements for routing and binding cables.
Cable Layout Guidelines
l Attach engineering labels to cables before routing and connecting cables.
l When routing cables on the cable organizer, reserve the distances listed in Table A-2
between cables. Do not bind different types of cables together. You are advised to bind
the power cables and PGND cables inside the cabinet along the inner part of the cable
organizer, and bind the signal cables along the outer part of the cable organizer.
Table A-2 Distances between different types of cables (unit: mm/in.)
Cable
Classification
Category 1 Category 2 Category 3 Category 4
Category 1 0/0 150/5.91 100/3.94 200/7.87
Category 2 150/5.91 0/0 100/3.94 150/5.91
Category 3 100/3.94 100/3.94 0/0 150/5.91
Category 4 200/7.87 150/5.91 150/5.91 0/0
E9000 Server
User Guide
A Appendix
Issue 25 (2019-11-30) Copyright © Huawei Technologies Co., Ltd. 162

Huawei E9000 Specifications

General

Form Factor	12U chassis
Blade Slots	16 half-width slots or 8 full-width slots
Switch Modules	GE, 10GE, and IB switches
Management Modules	Two hot-swappable management modules for redundancy
Power Supply	Supports up to 6 hot-swappable power supply units (PSUs)
Cooling	Redundant hot-swappable fan modules
Processor Options	Intel Xeon E5-2600 v3/v4 series processors (depending on blade type)
Memory Capacity	Up to 1.5 TB per blade
Storage Options	SAS/SATA/SSD options in blades
Networking	10GE/40GE networking options
Management	Huawei iBMC (Intelligent Baseboard Management Controller)
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Windows Server, VMware ESXi
