Table 2-2 E9000 chassis components
No. Component Description
1 Chassis This is a 12U chassis, providing 8 full-width or 16 half-width
compute node slots at the front, and 2 management module
slots, 6 PSU slots, 14 fan module slots, and 4 switch or pass-
through module slots at the rear.
2 Compute
nodes
A variety of half-width and full-width compute nodes are
supported and can be flexibly selected based on service needs.
3 Fan modules Fourteen hot-swappable fan modules can be configured and
divided into three zones.
4 Pass-through
or switch
modules
Four pass-through or switch modules can be configured to
provide external ports.
5 Management
modules
Two management modules can be configured to manage all
hardware devices in the chassis, with support for active/
standby switchovers and hot-swap.
6 PSUs Six hot-swappable PSUs work in N+1 or N+N redundancy
mode.
Front Panel

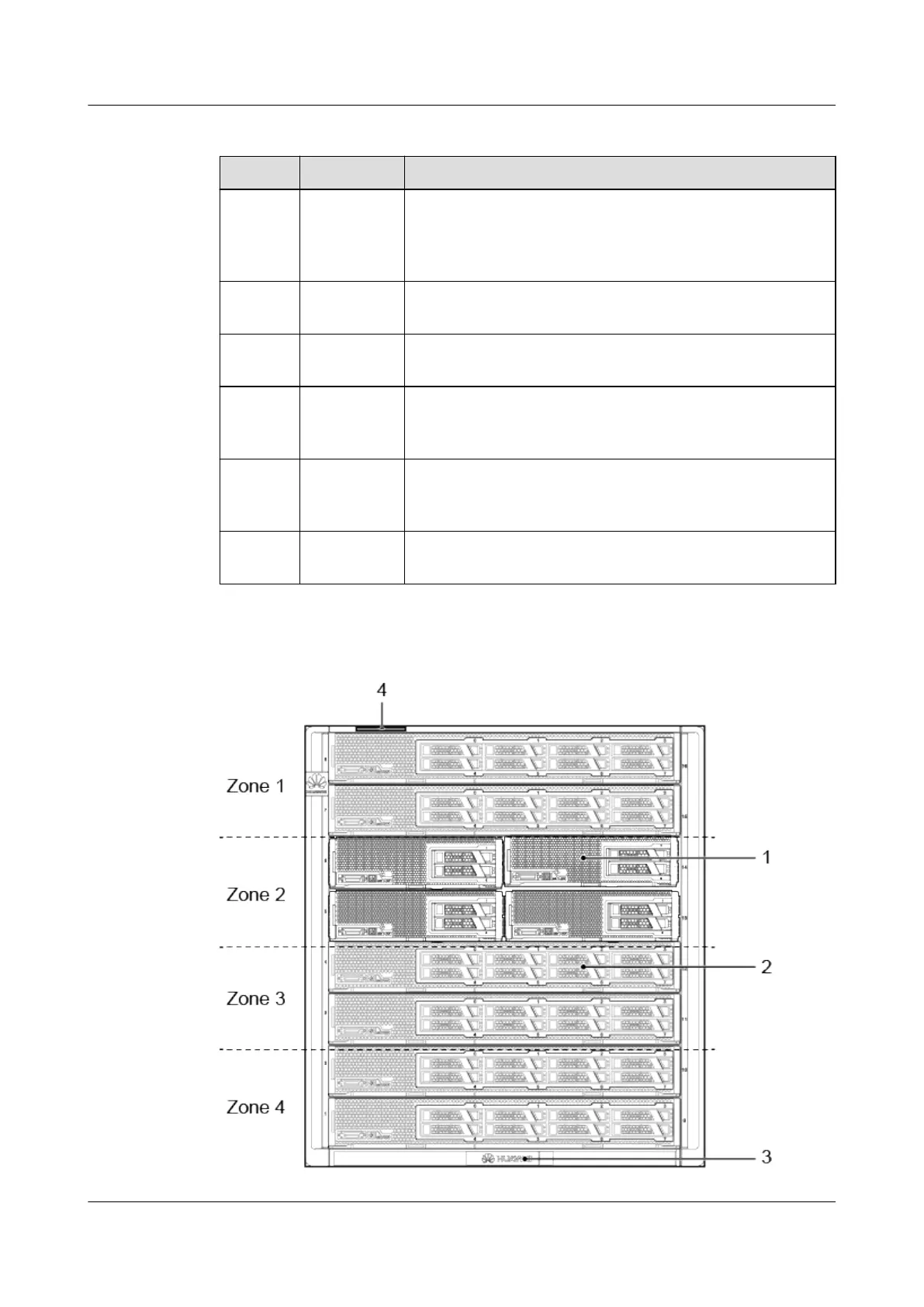

Figure 2-6 Front panel
E9000 Server
User Guide
2 Overview
Issue 25 (2019-11-30) Copyright © Huawei Technologies Co., Ltd. 11
