l For positions and descriptions of the indicators on compute nodes and switch modules, see the
"Indicators" section in the CHxxx Compute Node User Guide or CXxxx Switch Module User Guide
on the Huawei technical support website.
l For positions and descriptions of the indicators on AC PSUs, see 2.5.2 AC PSU. For details about
those on DC PSUs, see 2.5.3 DC PSU.
l For positions and descriptions of the indicators on fan modules, see 2.6.2 Fan Modules.
2.4 Physical Structure
This section describes the physical structure and components of the E9000.
Hardware Structure

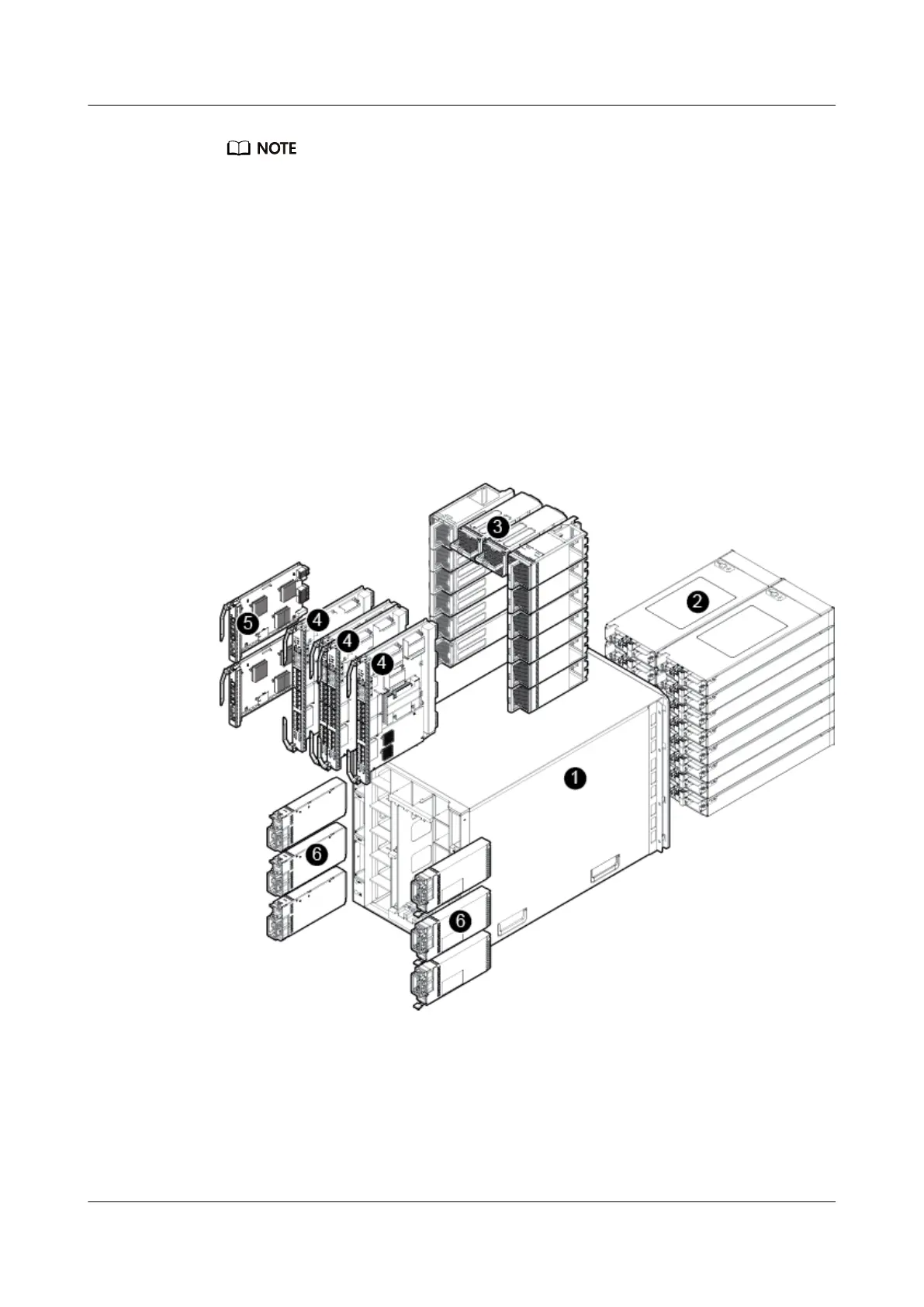

Figure 2-5 Hardware structure
E9000 Server
User Guide
2 Overview
