Huawei NE40E - 100 Gbps CFP Optical Modules; 100 Gbps(4*25.7)-CFP-SMF-1295.56~1309.14 Nm-10 Km-Commercial

NE40E
Hardware Description
1 Hardware Description
Issue 01 (2018-05-03)
1010
Item
Specification
(dBm)
Minimum sending optical power (AVG)
(dBm)
per lane:-7.6
Minimum sending optical power (OMA)
(dBm)
per lane:-5.6
Working wavelength range of the optical
receiver (nm)
840-860
Receiving sensitivity (AVG) (dBm)
-
Receiving sensitivity (OMA) (dBm)
per lane:-9.5
Saturated optical power (dBm)
per lane:0.5
Minimum extinction ratio (dB)
3
Note
The optical power calculation is based on
the OMA value.
1.11.21 100Gbps CFP Optical Modules

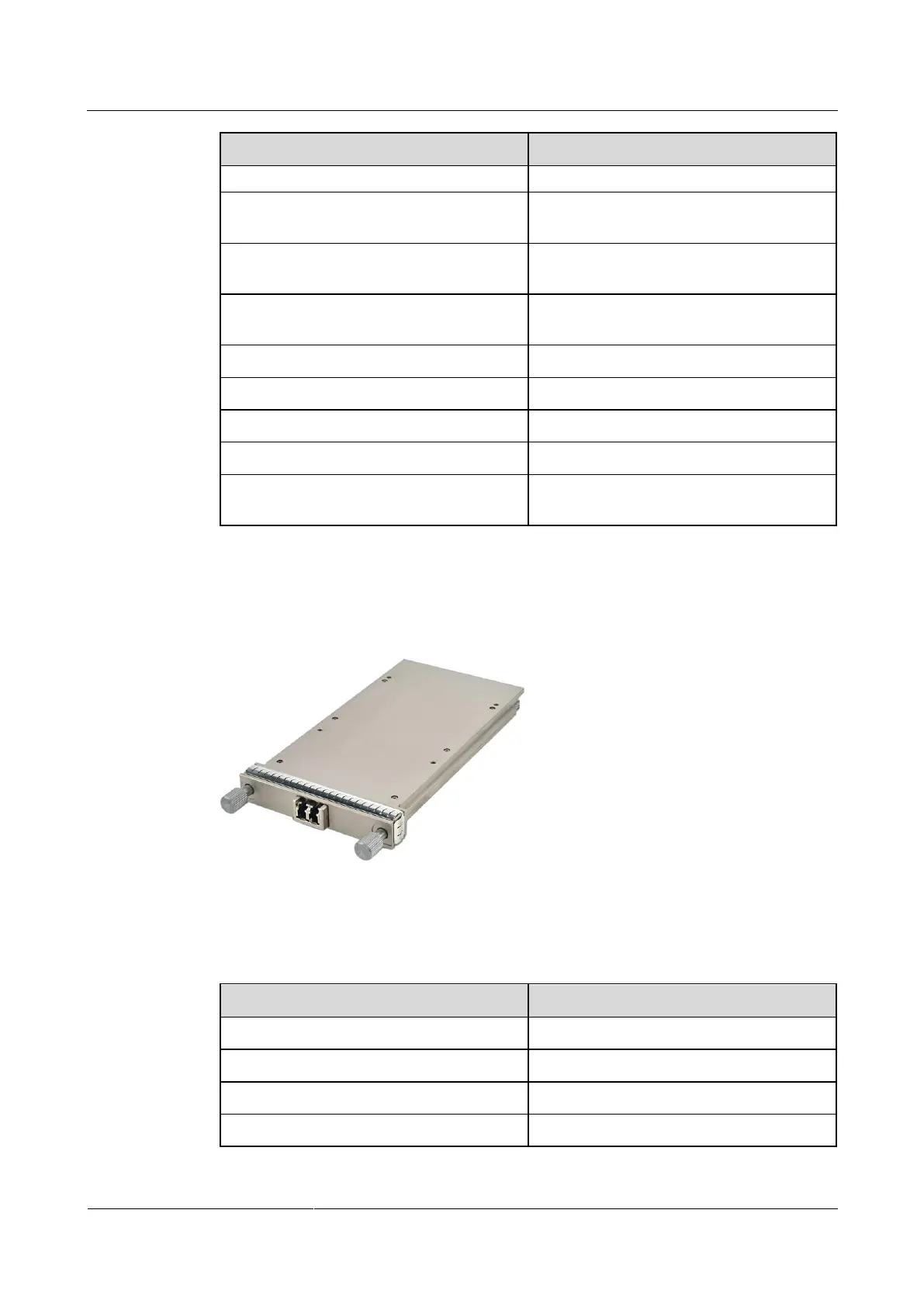

Figure 1-133 100Gbps CFP Optical Modules
1.11.21.1 100Gbps(4*25.7)-CFP-SMF-1295.56~1309.14nm-10km-commercial
Table 1-1786 Technical specifications
Item
Specification
BOM
S4017456
Model
OSN010N04
Encapsulation mode
CFP
Interface standard
IEEE 802.3ba, 100GBASE-LR4
