NE40E
Hardware Description
1 Hardware Description
Issue 01 (2018-05-03)
197

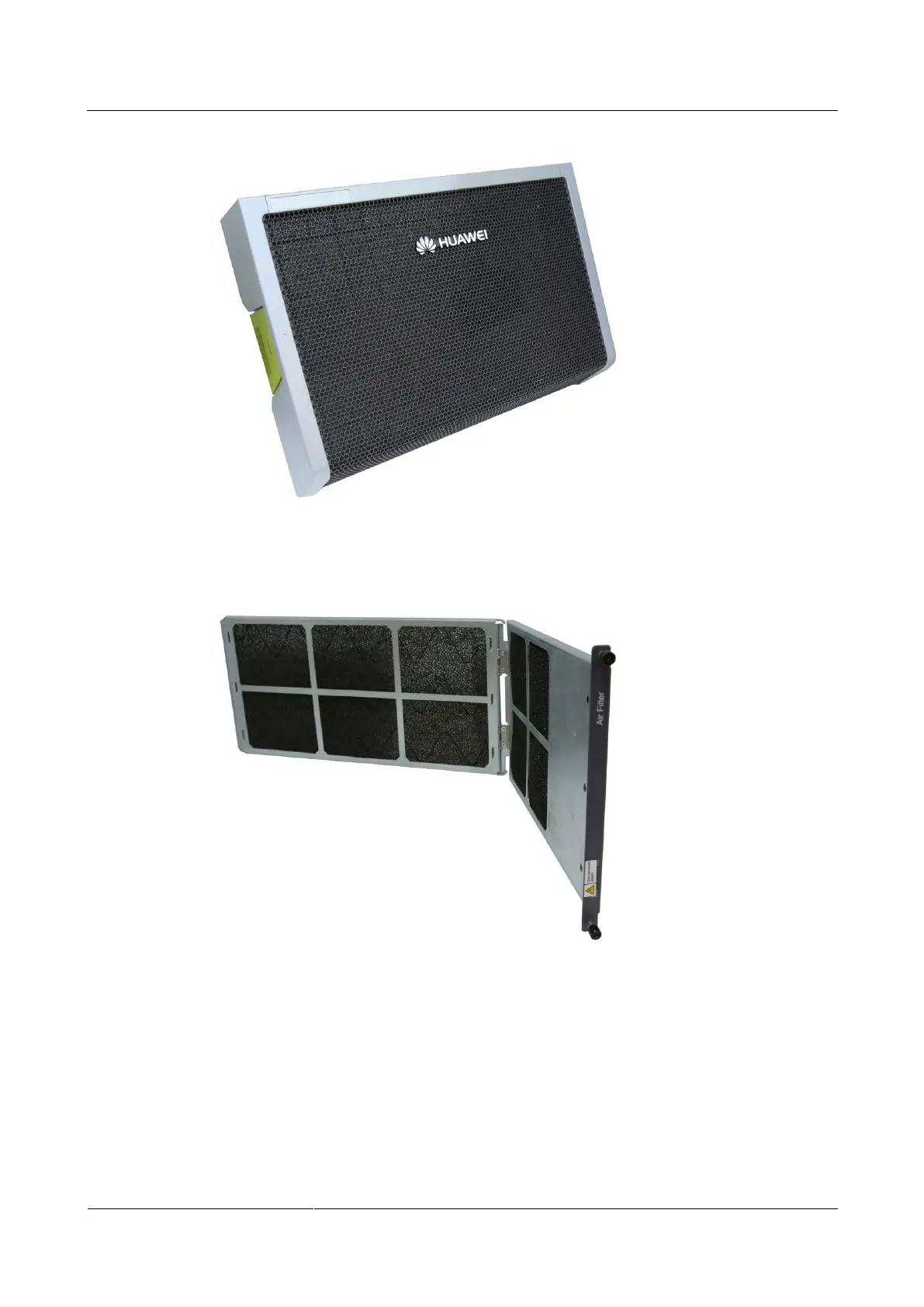

Figure 1-92 Appearance of the air filter
The appearance of the air filter in the SFU slot area is shown in Figure 1-93.
Figure 1-93 Appearance of the air filter in the SFU slot area
1.10 Boards
This chapter describes the boards of the device.
