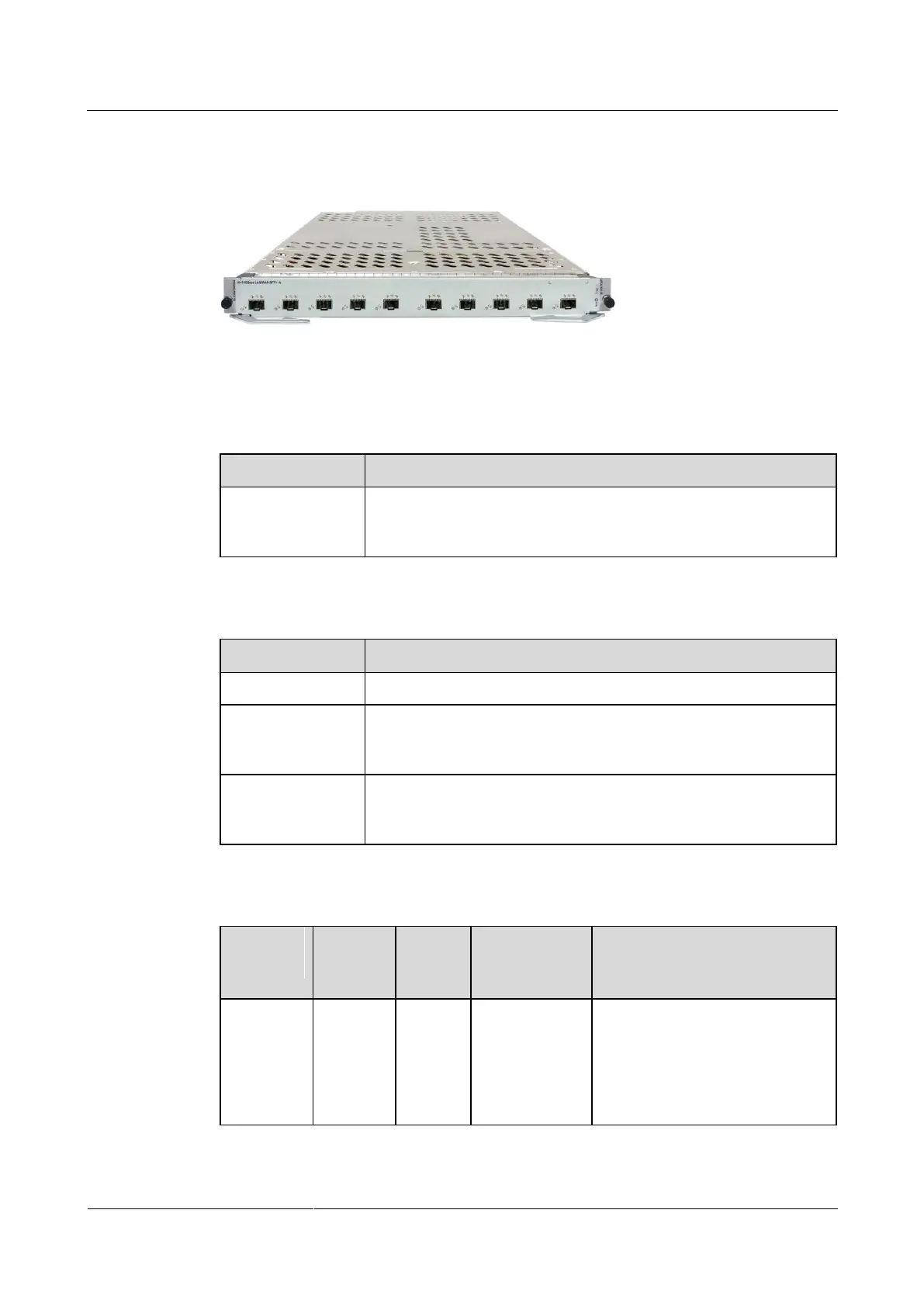

Appearance
Panel
Table 1-817 Buttons
Board removal button. To remove a board, hold down the OFL
button for about 6s until the OFL indicator turns on, and then remove
the board.
Table 1-818 Indicators
If the indicator is steady on, the board can be removed.
If the indicator blinks once every 2s (0.5 Hz), the system is running
properly. If the indicator blinks twice every second (2 Hz), the board
is starting and has not completed registration.
If the indicator is steady on, the link is Up. If this indicator blinks,
data is being transmitted or received. If the indicator is off, the link is
Down.
Table 1-819 Service interfaces
Interface for
inputting and
outputting 10G
LAN/WAN or
GE optical
signals
Optical fiber and twisted pair
