NE40E-X16A
1.10.15.1 Flexible Card Line
Processing Unit(LPUF-120) E
V800R009C00

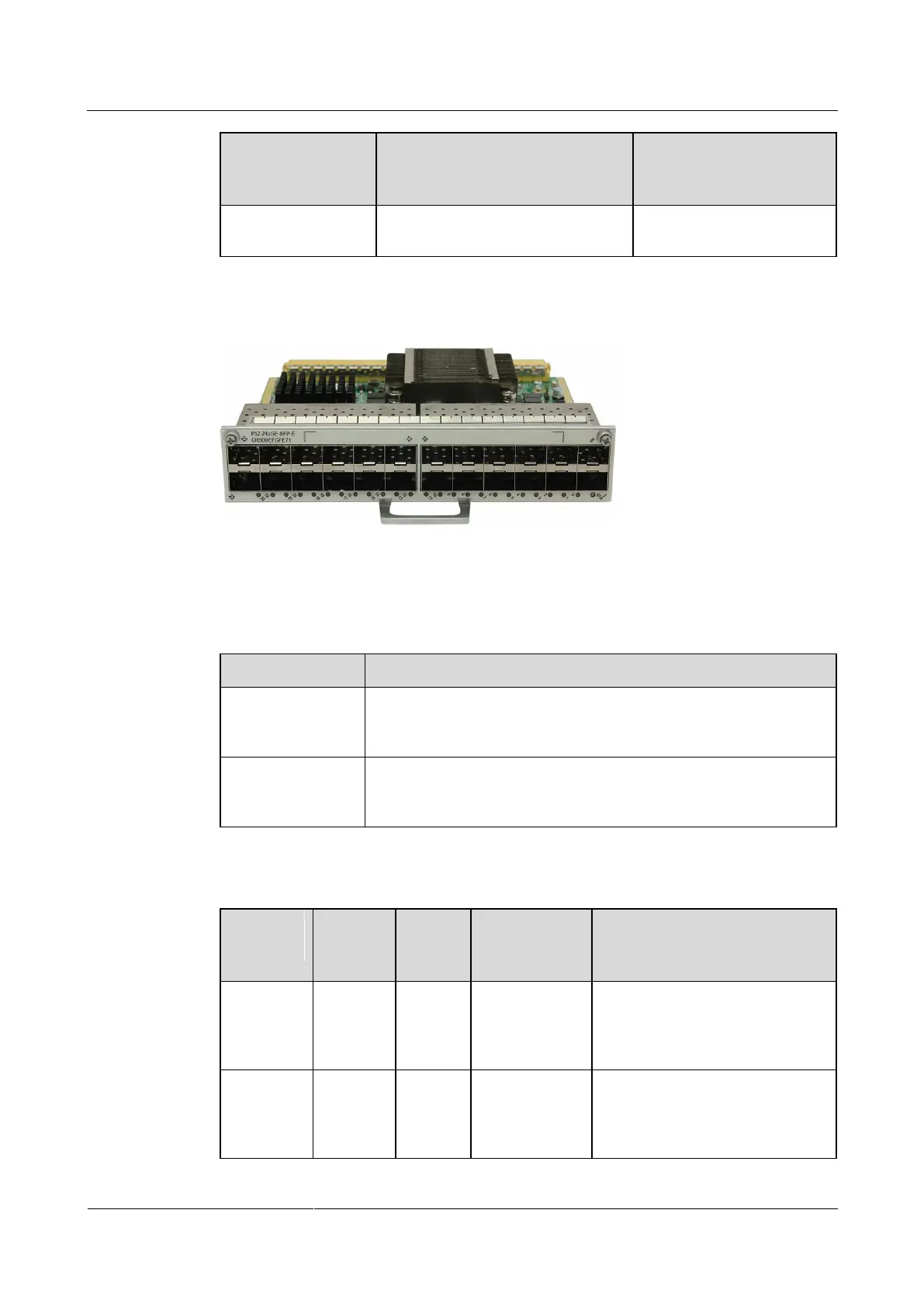

Appearance
Panel
Table 1-932 Indicators
Name
Description
STA (green)
If the indicator blinks once every 2s (0.5 Hz), the system is running
properly. If the indicator blinks twice every second (2 Hz), the board
is starting and has not completed registration.
0 to 23 (green)
If the indicator is steady on, the link is Up. If this indicator blinks,
data is being transmitted or received. If the indicator is off, the link is
Down.
Table 1-933 Service interfaces
Interface
Name
Interfac
e Type
Connec
tor
Type
Description
Cable
0 to 23
GE
SFP
Interface for
inputting and
outputting GE
optical signals
Optical fiber and twisted pair
0 to 23
GE
SFP
Interface for
inputting and
outputting GE
optical signals
Optical fiber and twisted pair
