Huawei SUN2000-3KTL-M1 User Manual

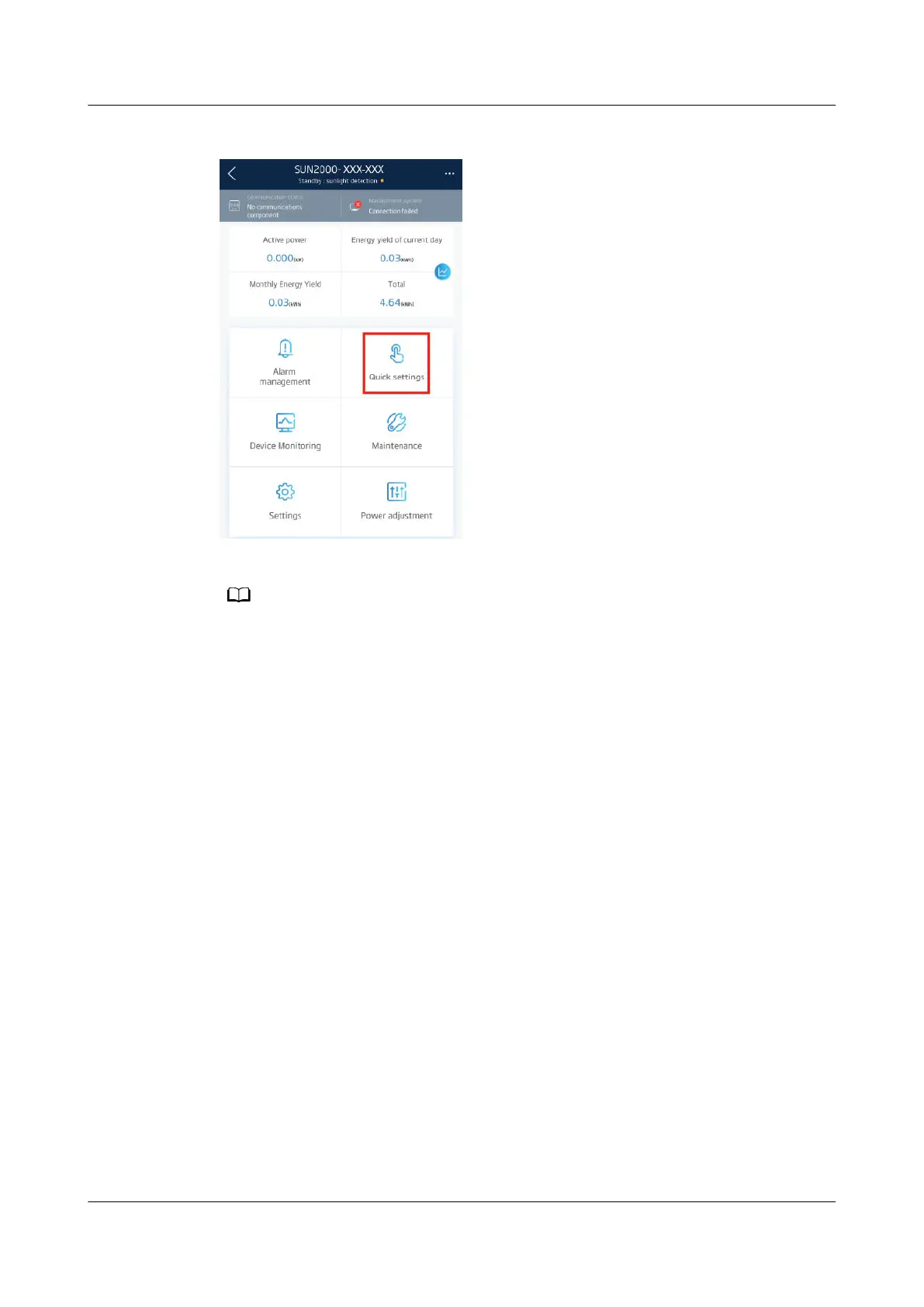

Figure B-3 Quick settings
NO TE
● Obtain the initial password for connecting to the solar inverter WLAN from the label on
the side of the solar inverter.
● Use the initial password upon
rst power-on and change it immediately after login. To
ensure account security, change the password periodically and keep the new password
in mind. Not changing the initial password may cause password disclosure. A password
left unchanged for a long period of time may be stolen or cracked. If a password is lost,
devices cannot be accessed. In these cases, the user is liable for any loss caused to the
PV plant.
● When you access the Device Commissioning screen of the SUN2000 for the
rst time,
you need to manually set the login password because the SUN2000 does not have an
initial login password.
----End
SUN2000-(3KTL-10KTL)-M1
User Manual B Device Commissioning
Issue 02 (2020-11-20) Copyright © Huawei Technologies Co., Ltd. 109

Huawei SUN2000-3KTL-M1 Specifications

General

Model	SUN2000-3KTL-M1
Type	String Inverter
Max. DC Input Voltage	600 V
MPPT Voltage Range	90 V - 560 V
Rated AC Output Power	3000 W
Max. AC Output Power	3300 W
Nominal AC Voltage	220 V / 230 V / 240 V
AC Voltage Range	180 V - 280 V
AC Output Frequency	50 Hz / 60 Hz
Max. Efficiency	98.6%
MPPT Trackers	2
DC Inputs per MPPT	1
Max. Input Current per MPPT	11 A
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Max. DC Input Power	4500 W
Communication	RS485
Dimensions (W x H x D)	365 mm x 365 mm x 156 mm
