Huawei SUN2000-3KTL-M1 User Manual

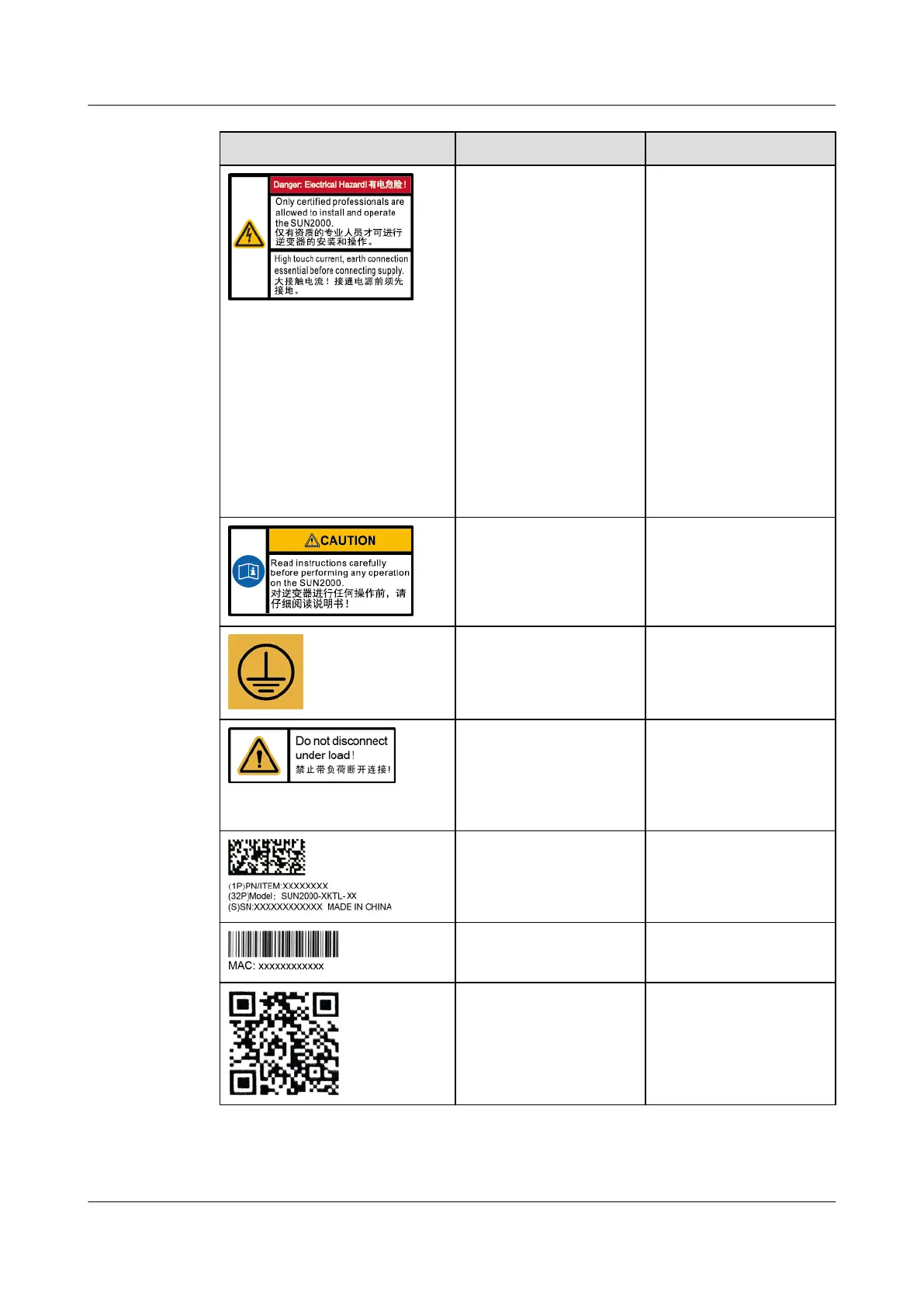

Symbol Name Description
Electric shock warning ● High voltage exists
after the SUN2000
is powered on. Only
qualied and
trained electrical
technicians are
allowed to perform
operations on the
SUN2000.
● High touch current
exists after the
SUN2000 is
powered on. Before
powering on the
SUN2000, ensure
that the SUN2000 is
properly grounded.
Refer to
documentation
Reminds operators to
refer to the documents
delivered with the
SUN2000.
Grounding label Indicates the position
for connecting the PE
cable.
Operation warning Do not remove the DC
input connector or AC
output connector
when the SUN2000 is
running.
SUN2000 serial
number
Indicates the serial
number.
SUN2000 MAC address Indicates the MAC
address.
SUN2000 WiFi login
QR code
Scan the QR code to
connect to the Huawei
SUN2000 WiFi
network.
SUN2000-(3KTL-10KTL)-M1
User Manual 2 Overview
Issue 02 (2020-11-20) Copyright © Huawei Technologies Co., Ltd. 13

Huawei SUN2000-3KTL-M1 Specifications

General

Model	SUN2000-3KTL-M1
Type	String Inverter
Max. DC Input Voltage	600 V
MPPT Voltage Range	90 V - 560 V
Rated AC Output Power	3000 W
Max. AC Output Power	3300 W
Nominal AC Voltage	220 V / 230 V / 240 V
AC Voltage Range	180 V - 280 V
AC Output Frequency	50 Hz / 60 Hz
Max. Efficiency	98.6%
MPPT Trackers	2
DC Inputs per MPPT	1
Max. Input Current per MPPT	11 A
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Max. DC Input Power	4500 W
Communication	RS485
Dimensions (W x H x D)	365 mm x 365 mm x 156 mm
