Huawei SUN2000-3KTL-M1 User Manual

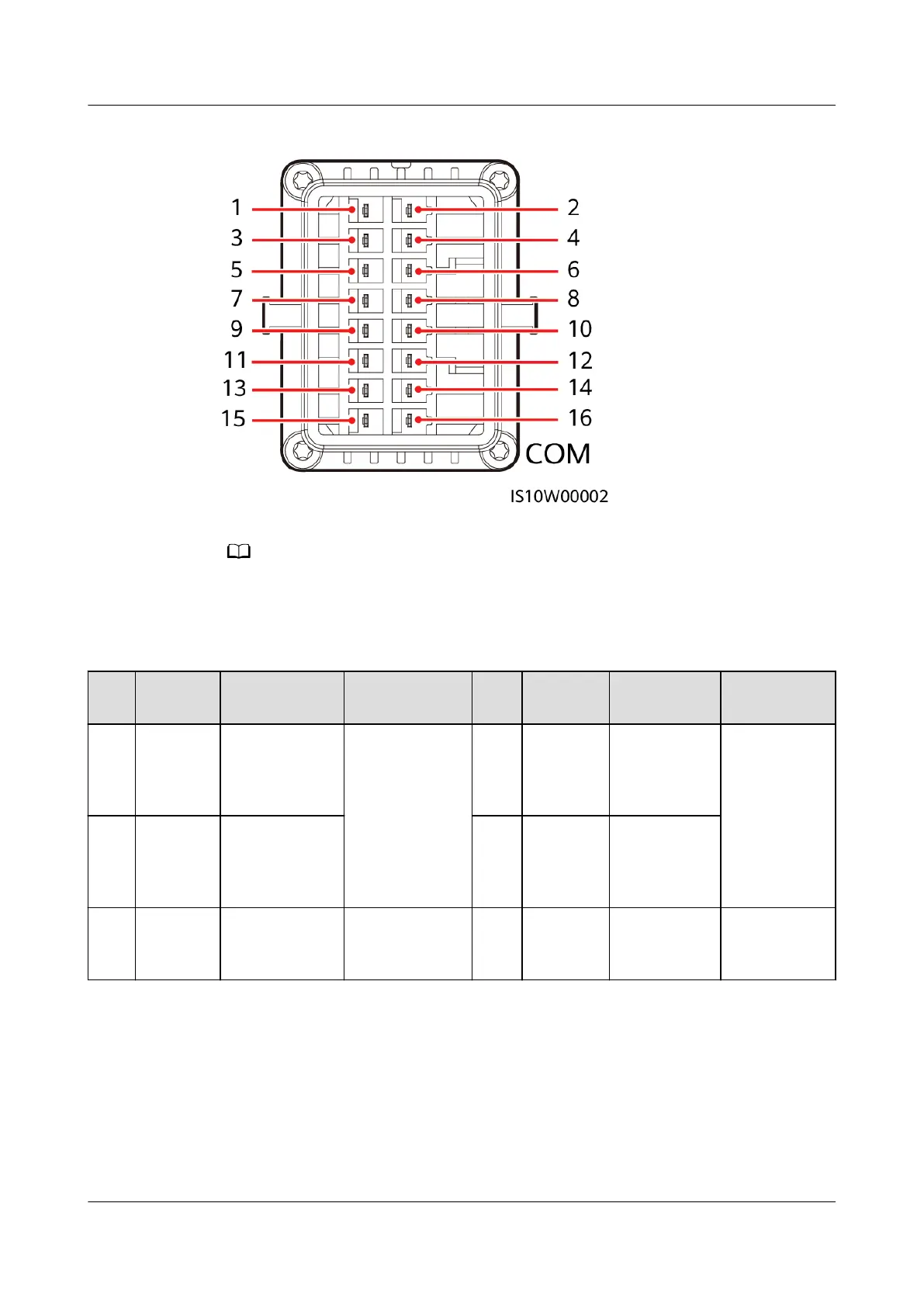

Figure 5-18 Pin denitions
NO TE
● If the RS485 communications cables of devices such as the smart power sensor and
battery are connected to the SUN2000 at the same time, the pins RS485A2 (pin 7),
RS485B2 (pin 9), and PE (pin 5) are shared.
● If both the battery enable signal cable and rapid shutdown switch signal cable are
connected to the SUN2000 at the same time, the GND pin (pin 13) is shared.
Pin
Denitio
n
Functions Remarks Pin Denitio
n
Functions Remarks
1 485A1-1 RS485A,
RS485
dierential
signal+
Used for
SUN2000
cascading or
connecting to
the RS485
signal port on
the
SmartLogger
2 485A1-2 RS485A,
RS485
dierential
signal+
Used for
SUN2000
cascading or
connecting
to the RS485
signal port
on the
SmartLogger
3 485B1-1 RS485B,
RS485
dierential
signal–
4 485B1-2 RS485B,
RS485
dierential
signal–
5 PE Ground point
on the shield
layer
- 6 PE Ground
point on the
shield layer
-
SUN2000-(3KTL-10KTL)-M1
User Manual 5 Electrical Connections
Issue 02 (2020-11-20) Copyright © Huawei Technologies Co., Ltd. 49

Huawei SUN2000-3KTL-M1 Specifications

General

Model	SUN2000-3KTL-M1
Type	String Inverter
Max. DC Input Voltage	600 V
MPPT Voltage Range	90 V - 560 V
Rated AC Output Power	3000 W
Max. AC Output Power	3300 W
Nominal AC Voltage	220 V / 230 V / 240 V
AC Voltage Range	180 V - 280 V
AC Output Frequency	50 Hz / 60 Hz
Max. Efficiency	98.6%
MPPT Trackers	2
DC Inputs per MPPT	1
Max. Input Current per MPPT	11 A
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Max. DC Input Power	4500 W
Communication	RS485
Dimensions (W x H x D)	365 mm x 365 mm x 156 mm
