C Status Icons
The icons provided on the user interface indicate the status and settings of the system.
The icons help show the system status and perform operations as required. Table C-1 lists the
icons that will appear on the lower-right corner of the call screen and indicate the current
network status. Before initiating a conference, check the status of these icons.

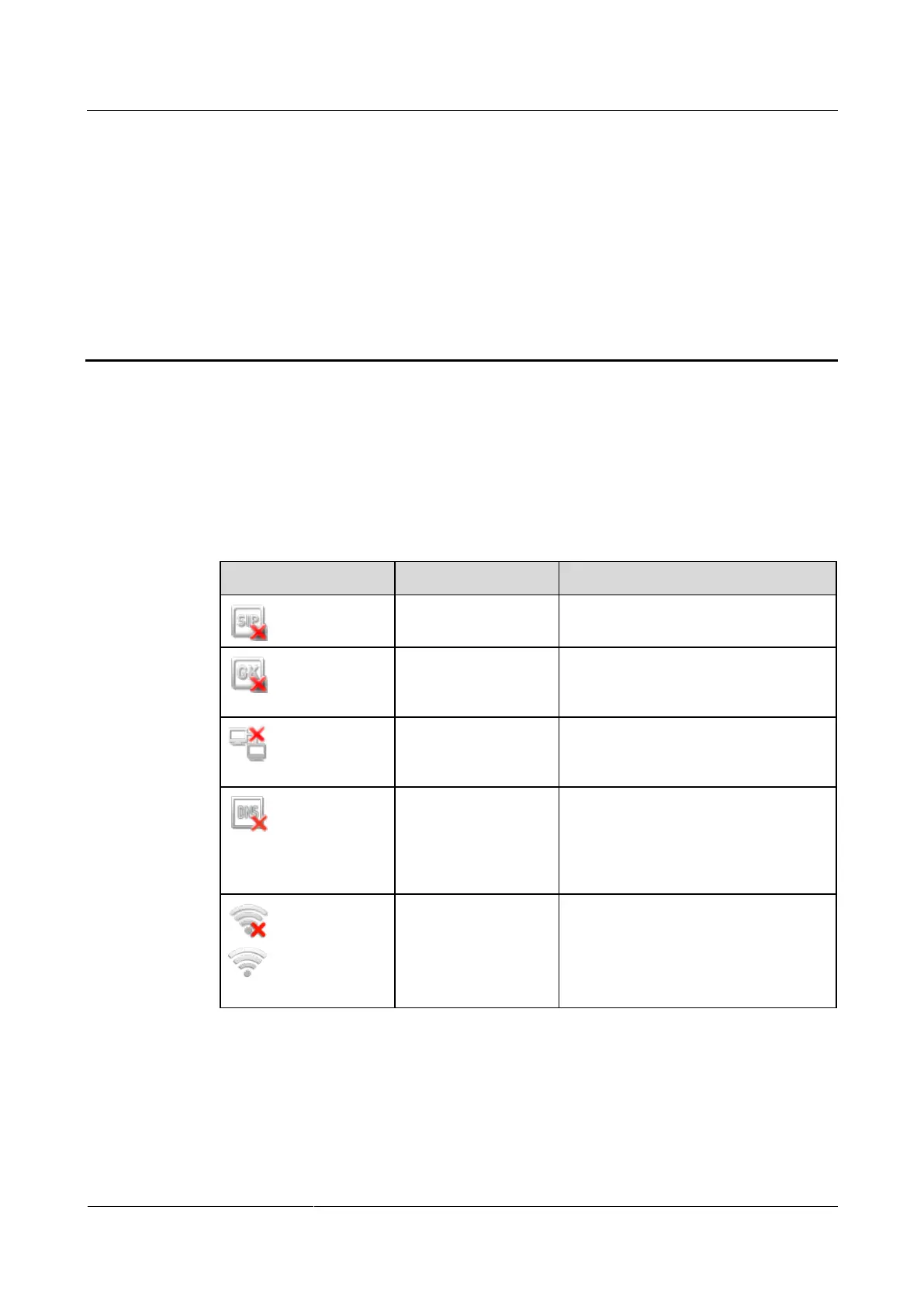

Table C-1 Network status icons
Icon
Name
Indicates …
SIP registration
failure
The endpoint fails to be registered with
the SIP server.
GK registration
failure
The endpoint fails to register with the
gatekeeper after the gatekeeper is
enabled.
Network
disconnection
The endpoint is disconnected from an
IP network. The network cable may be
disconnected.
DNS resolution
failure
After the DNS server is enabled and
domain names are adopted as SIP
server or GK server addresses, the DNS
server fails to resolve the domain
names.
Wi-Fi connection
status
The first icon indicates that the Wi-Fi
network has disconnected after the
Wi-Fi client is enabled.
The other icon indicates the signal
status of a connected Wi-Fi network.
When you view a video, the icons listed in Table C-2 are used to indicate the status of certain
operations. During a conference, pay attention to the status of these icons to ensure that the
relevant operations are performed correctly.
