Hypertherm ArcGlide THC

102 ArcGlide THC Instruction Manual 806450
2 – Installation

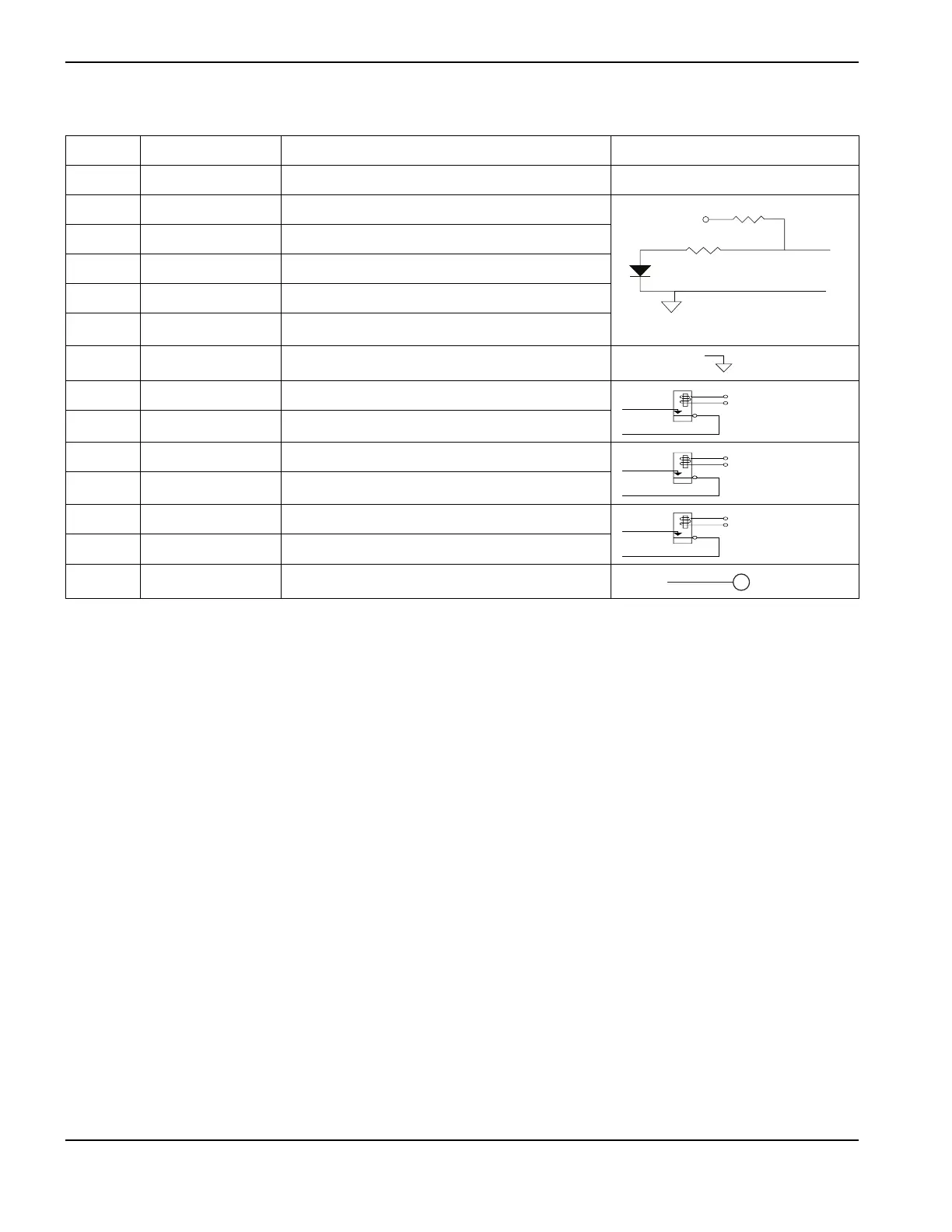

Pin No.
.
*Color Signal name
**
Dry contact circuit
1 Black Not connected
2 White Manual disable switch input +
3 Red Manual select switch input +
4 Green Torch up switch input +
5 Orange Torch down switch input +
6
Blue Spare switch input +
7
White/black Common
8 Red/black Torch Enabled output A
9
Green/black Torch Enabled output B
10 Orange/black Error output A
11
Blue/black Error output B
12 Black/white Spare output A
13
Red/white Spare output B
14
Green/white Power +24 VDC output
*
Pin numbers are the same on both ends of the cable.
**
Input signals (pins 2 – 6) use 24 VDC; Output signals (pins 8 – 14) use dry contact closures at 24 VDC.
+24 V
3.9 K
3.9 K
+
Common
normally open
A
B
normally open
A
B
normally open
A
B
+24 V
