ArcGlide THC Instruction Manual 806450 215

4 – Maintenance

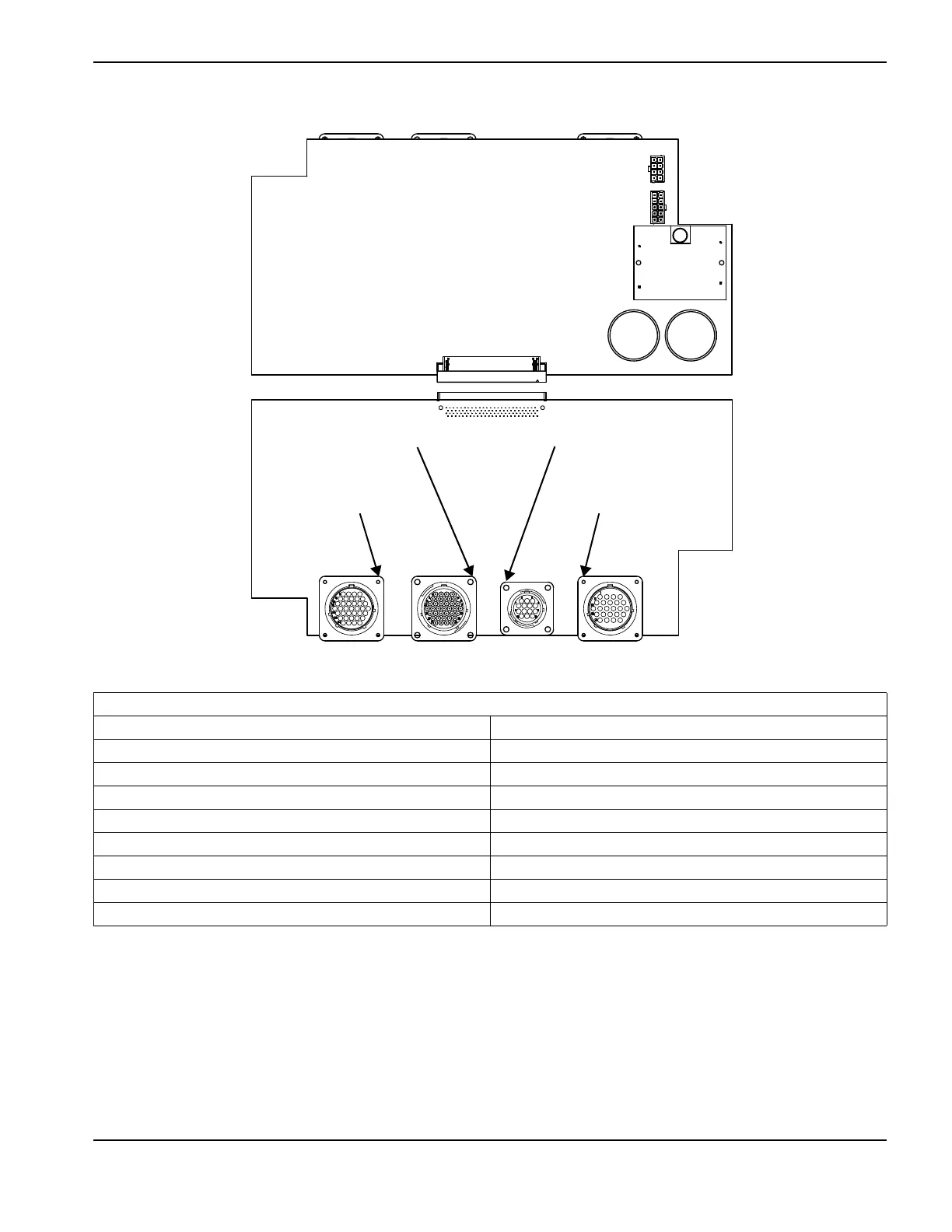

THC control interface board (228577)

J3 To transformer

Pin No. Signal

1 115 V input 1

2 115 V input 2

3 115 V input 3

4 115 V input 4

5 45 V output line 1

6 45 V output line 2

7 22 V output line 1

8 22 V output line2

100

J3 to transformer

Servo Pack

(428081)

J1 Board interconnects

Lifter I/O (male)

Operator console I/O

(female)

Plasma I/O (female)

CNC I/O (male)

Back view

Front view
