ArcGlide THC Instruction Manual 806450 125
2–Installation
Assign an ArcGlide THC to a station
The station number that you select in the Phoenix Station Configuration screen must match the address set in the
ArcGlide control module, HMI, and the address set on the Hypernet plasma interface board. Assigning the ArcGlide to a
station in Phoenix software also enables the ArcGlide Process screen (see page 156) and the ArcGlide manual on the
Help screen.
1. Verify that the ArcGlide setup fields are correct in the Machine Setup screen. See Set up ArcGlide and Hypernet on
page 119 for more information.
2. Choose Setups > Password > Station Configuration.
3. Choose Reset if ArcGlide THC does not appear in the Lifter dropdown list.

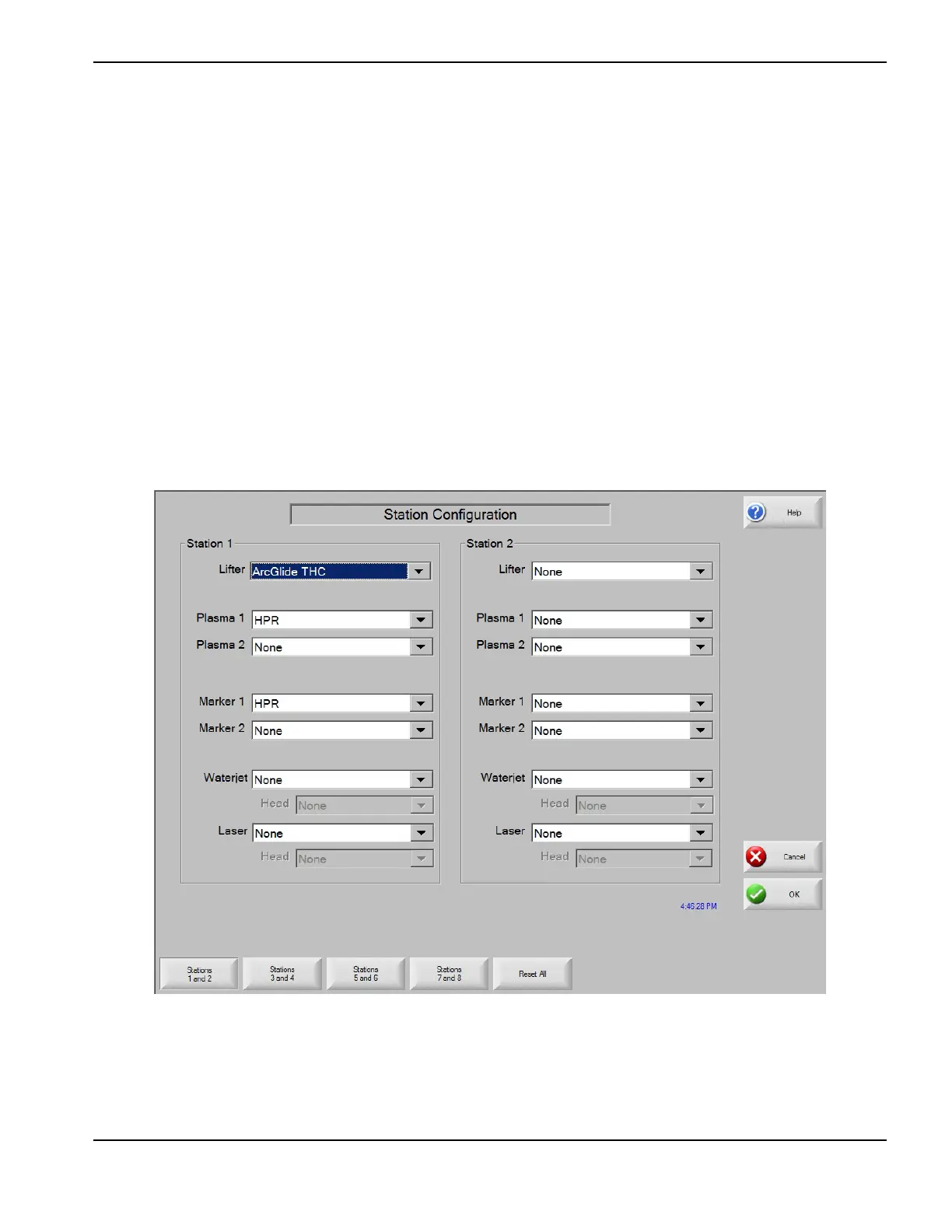

4. On the Station Configuration screen, shown in Figure 34, select ArcGlide THC for each station where an ArcGlide is
installed.
5. Choose OK when you have finished assigning ArcGlide lifters to the stations on the cutting machine.
Figure 34
