ArcGlide THC Instruction Manual 806450 155
3–Operation
Manual mode
In Manual mode, only errors and Pierce Delay information is displayed.

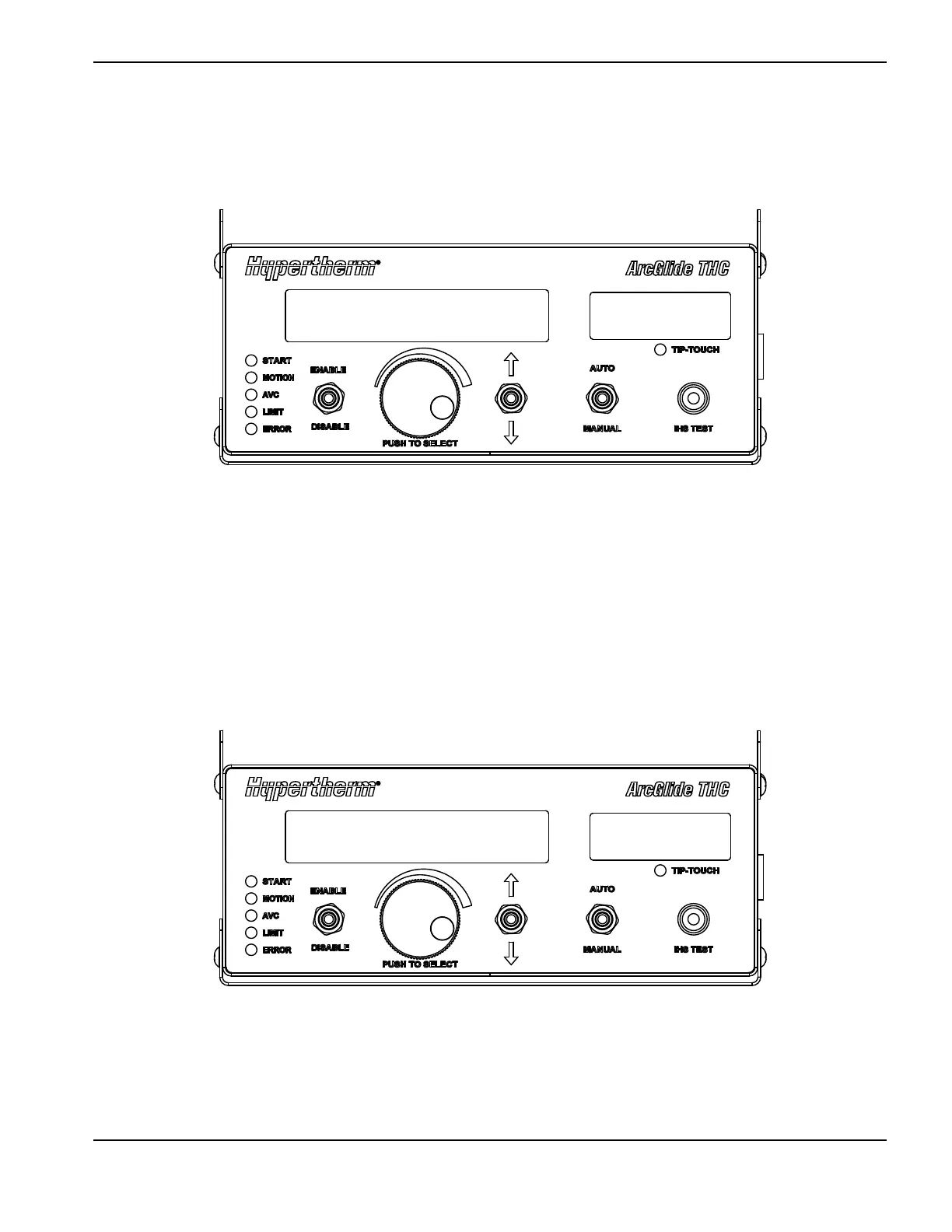

Figure 41
Error: The most recent error condition.
Pierce Delay: 0 – 10 seconds with 0.01 second resolution (Pierce Delay is Pierce Time in Phoenix software).
<Setup Parameters> Return to the Setup parameters display.
Lifter Disabled mode
When the lifter is disabled, there are only two parameters that display.
Figure 42
Arc Starts: The number of times the arc has started since the last time consumables were changed and the counter was
restarted.
Arc Minutes: The number of minutes of active cutting since the last time consumables were changed and the counter
was restarted.
Manual
NO ERRORS
Pierce Delay 1.00s
<Setup Parameters>
Disabled
Arc Starts 72
Arc Minutes 146
