ArcGlide THC Instruction Manual 806450 153
3–Operation
Installation Data screen
The Installation Data screen provides information on ArcGlide hardware and firmware settings that are used by the
control module.
The default for Display Units is inch. To view metric measurements, select mm.

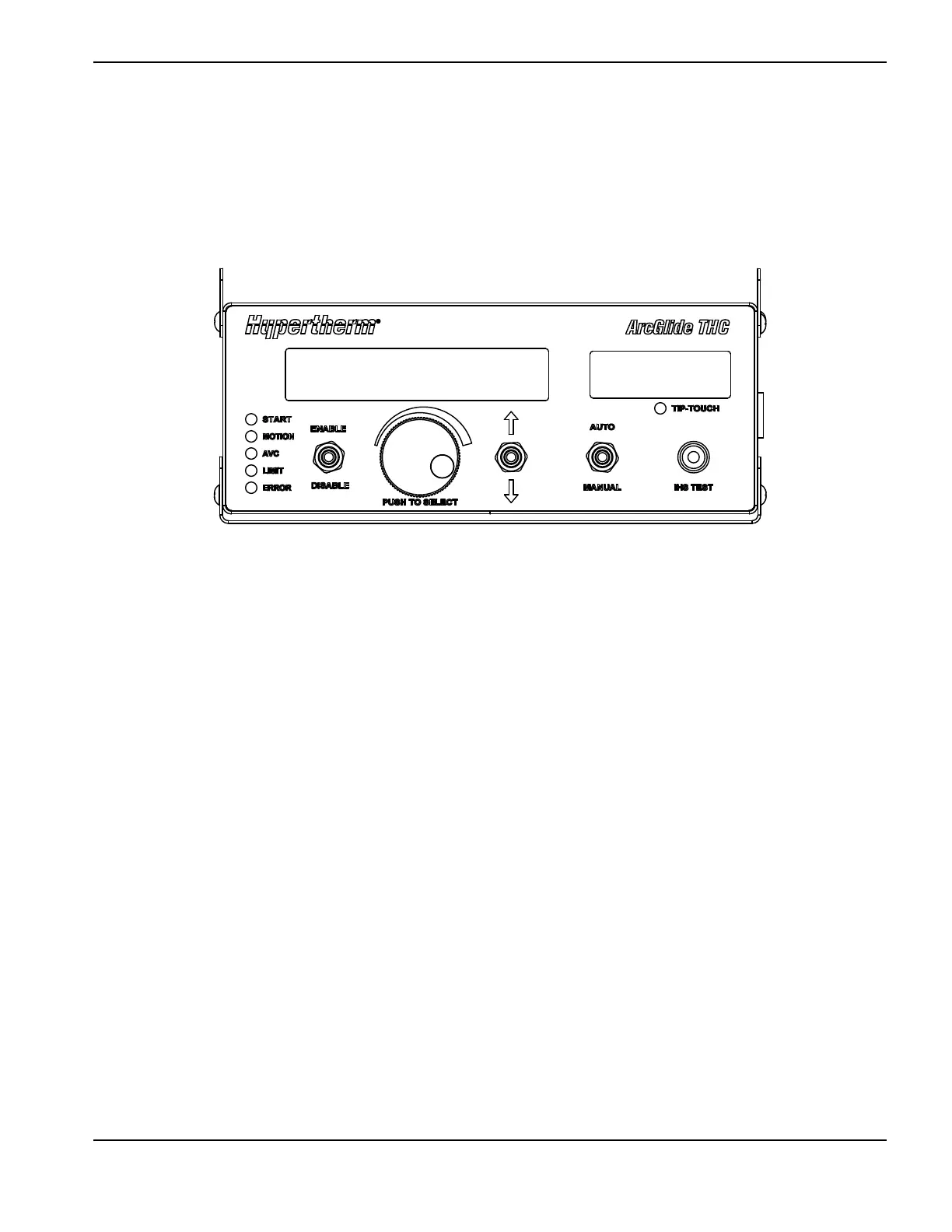

Figure 40
Slide Length: This value is the length of the lifter’s usable travel. Default = 9.50 inch.
Max Servo Current: This is the maximum continuous motor current for which the lifter motor is rated.
Default = 3.0 A.
Encoder Counts per inch: This value scales the position feedback. Default = 20320 per inch.
Maximum Speed (perminute): This parameter sets the maximum linear speed that the THC can achieve.
Default = 600 inch.
Fast Speed (perminute): This speed is used for all automatic rapid moves such as the End-of-Cut-Retract or the Initial
Approach to the workpiece. Default = 600 inch.
Slow Speed (perminute): This speed is the Homing Speed and is the fastest speed used for manual moves. It is also
the maximum speed limit used during arc voltage control. Default = 150 inch.
IHS Speed (perminute): This parameter sets the lowest speed for the final approach to the workpiece during an IHS
operation. It is also used as the low speed for manual moves. Default = 17 inch.
Relative Speed Gain: This gain value regulates the speed of the lifter. Default = 5.
Relative Position Gain: This gain is used for closed loop positioning. Default = 5
Relative ARC Volts Gain: This gain is used when the THC is operating closed-loop arc voltage control. Default = 5.
Installation Data
<back>
Slide Length 9.4
Max Servo Current 3.0A
