104 ArcGlide THC Instruction Manual 806450
2 – Installation
ArcGlide control module CNC interlock kit (228594)

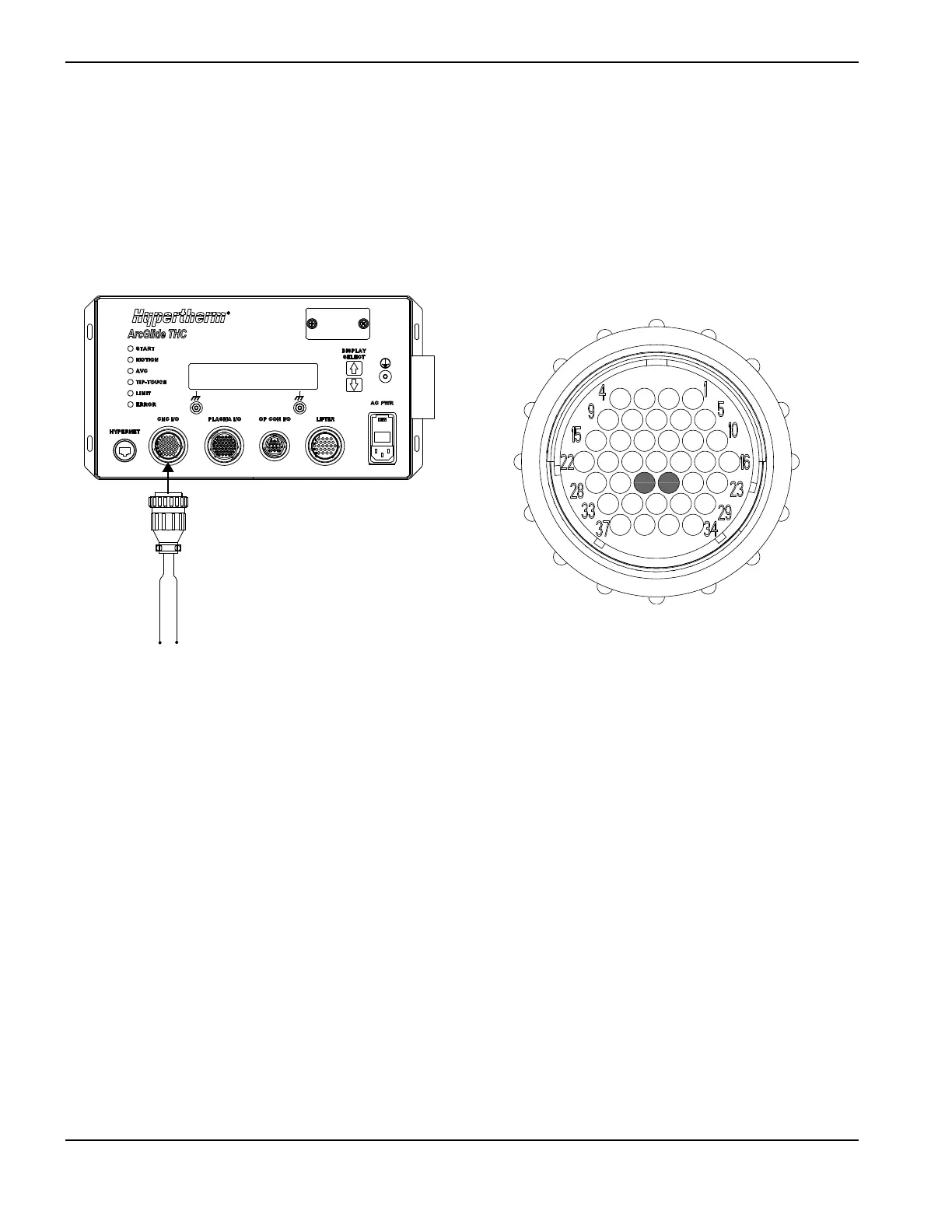

As part of a motion control system, the ArcGlide has an interlock to enable and disable Z-axis motion. This interlock must
be wired correctly and according to the appropriate national and local codes to allow the quick stop of motion.
A closed circuit between pins 25 and 26 is required to satisfy the interlock circuit and enable
the Z-axis motion of the ArcGlide.
The interlock kit includes the connector, backshell, and pins that are necessary to build the interlock.
