ArcGlide THC Instruction Manual 806450 115
2–Installation

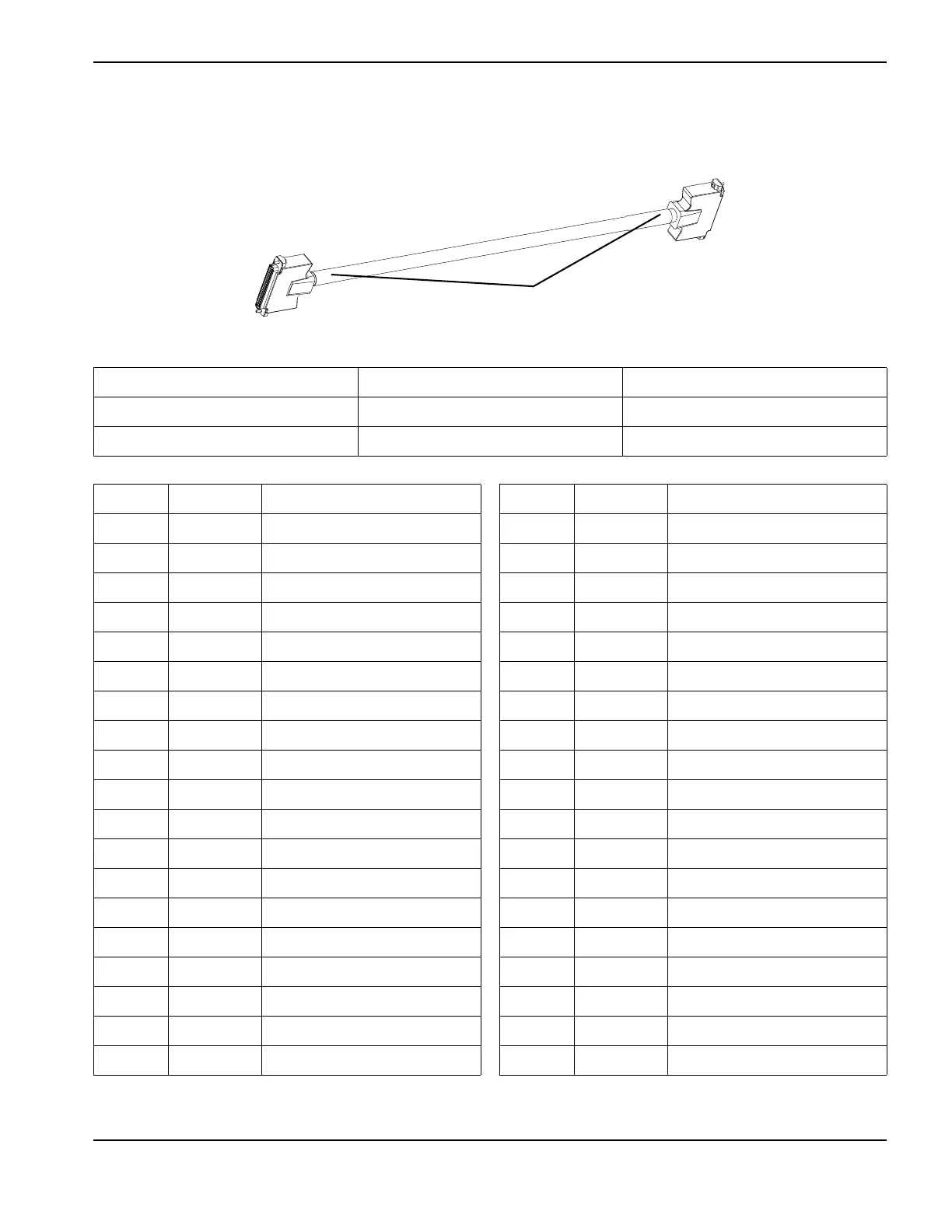

Non-serial plasma interface cable
This cable connects the ArcGlide plasma interface board and control board inside the plasma system. Use this cable only
when the CNC provides serial communication directly to the control board.
Part number Length Used in
223192 0.61 m (2 feet) HPR130XD, HPR260XD
223193 2.3 m (7.5 feet) HPR400XD
Pin No. Color Signal Pin No. Color Signal
1 Not connected 20 Not connected
2 Not connected 21 Not connected
3 Black RS-422 communication 22 Blue HPR turned ON
4 Black Motion - 23 Ye ll o w M ot io n +
5 Black Error - 24 Brown Error +
6 Black Rampdown error - 25 Orange Rampdown error +
7 Red HPR not ready - 26 White HPR not ready +
8 Red Not connected 27 Green Not connected
9 Red Not connected 28 Blue Not connected
10 Red Not connected 29 Yellow Not connected
11 Red Not connected 30 Brown Not connected
12 Red Corner A 31 Orange Corner B
13 Green Pierce A 32 White Pierce B
14 Green Hold A 33 Blue Hold B
15 Green Plasma Start relay A 34 Yellow Plasma Start relay B
16 Green Remote ON A 35 Brown Remote ON B
17 Green Not connected 36 Orange Ground
18 White Ground 37 Black +24 VDC HPR plasma
19 Blue Not connected 38 Ground
Red band
Diameter = 13.72 mm (0.54 inch)
Bend radius = 152.40 mm (6.00 inch)
