ArcGlide THC Instruction Manual 806450 39
1 – Specifications

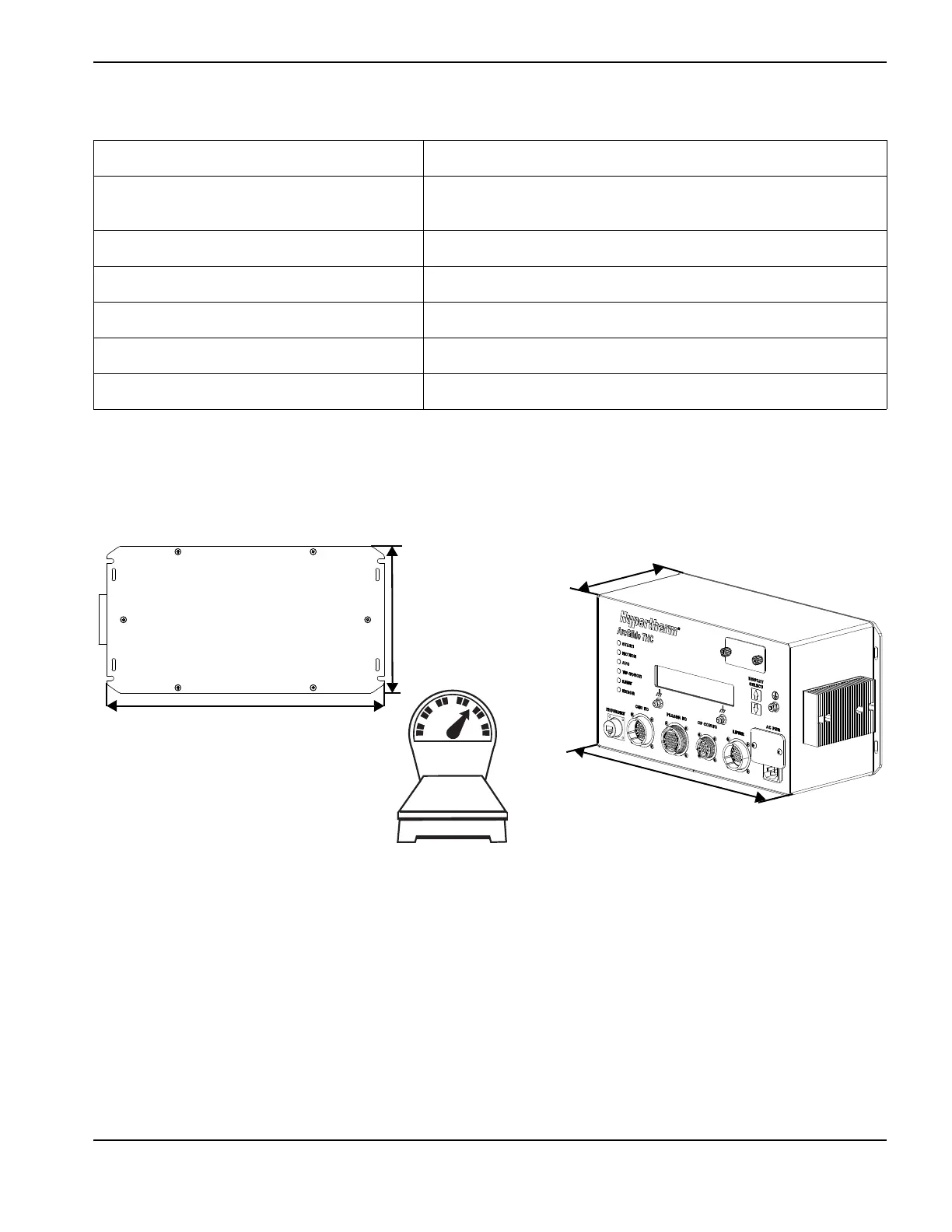

ArcGlide control module (090054)
Figure 2
Regulatory approvals CE, CSA, C-Tick, GOST-TR, UkrSEPRO
Current rating (selectable)* 2.6 A at 100 VAC – 120 VAC, 50/60 Hz, 1-phase
1.5 A at 200 VAC – 230 VAC, 50/60 Hz, 1-phase**
Slow blow fuse 250 VAC, 5 A, 0.25 inch X 1.25 inch
Parallel digital input range +12 VDC to +24 VDC
Serial digital I/O +5 VDC (Plasma interface serial)
Maximum motor drive output 70 VDC, 6 A
Hypernet communication Shielded RJ-45 Cat5e or Cat6
* To prevent damage to equipment, select the input voltage using the input fuse module on the front of the ArcGlide control module
above the power connector (115 V or 230 V).
** Factory default setting
7. 2 6 k g
(16.00 lb)
358.65 mm
(14.12 inch)
381.00 mm
(15.37 inch)
157.23 mm
(6.19 inch)
206.25 mm
(8.12 inch)
