ArcGlide THC Instruction Manual 806450 81
2–Installation
Extended torch sleeve option
An extended torch sleeve (220790) is available for torches used with HPR130XD, HPR260XD, HPR400XD, and
HPR800XD plasma systems. This torch sleeve extends the reach of the torch tip 127.00 mm (5.00 inches) and increases
the mounting flexibility of your cutting machine setup.
For additional stability, clamp the torch body as close to the torch tip as possible.
Extended torch sleeve options for the MAXPRO200 plasma system are 220942 and 220943.

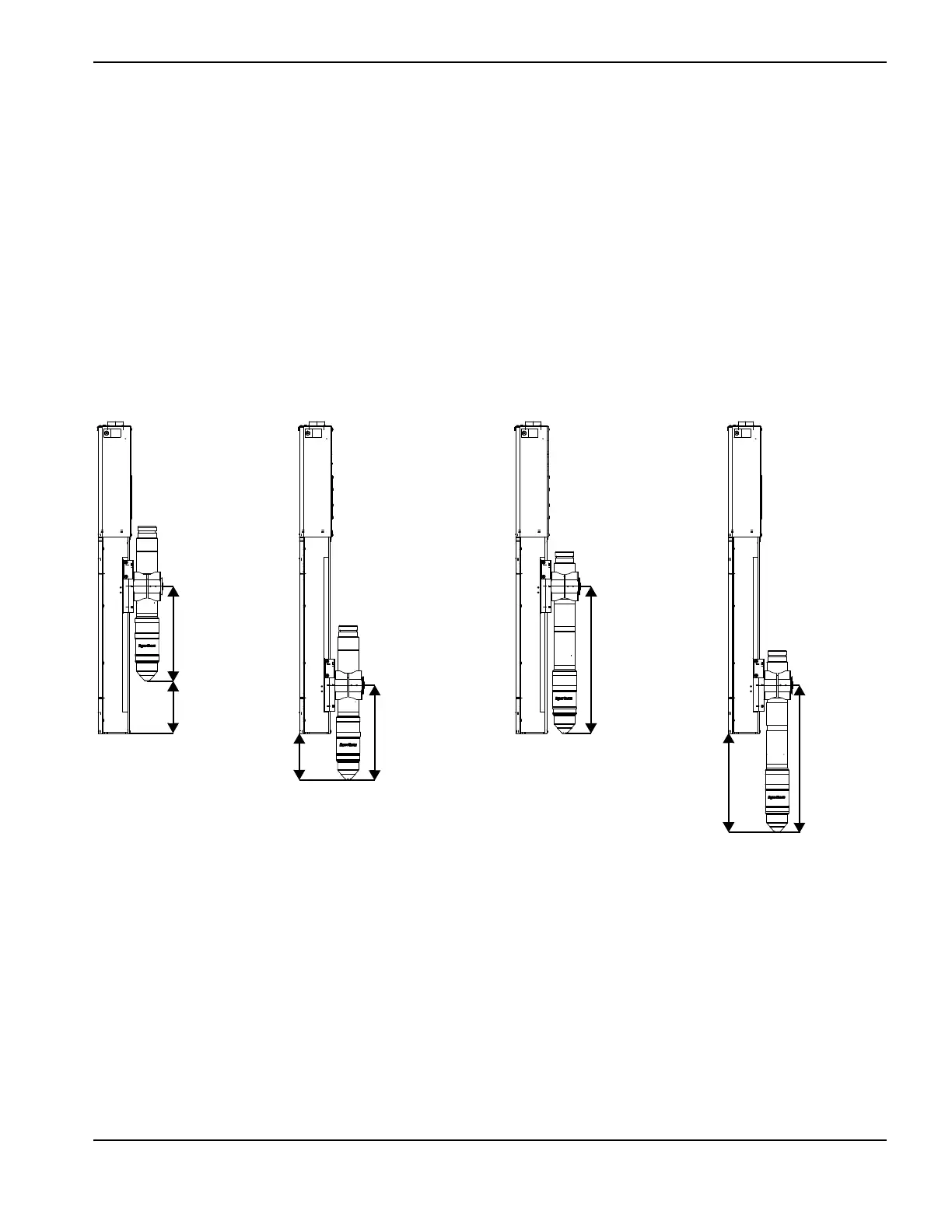

Figure 15
ArcGlide and HPRXD torch (228354)
with standard sleeve
ArcGlide and HPRXD torch (228354)
with extended sleeve (220790)
228.60 mm
(9.00 inch)
111.76 mm
(4.40 inch)
355.60 mm
(14.00 inch)
127.00 mm
(5.00 inch)
228.60 mm
(9.00 inch)
355.60 mm
(14.00 inch)
239 mm
(9.40 inch)
