ArcGlide THC Instruction Manual 806450 87
2–Installation

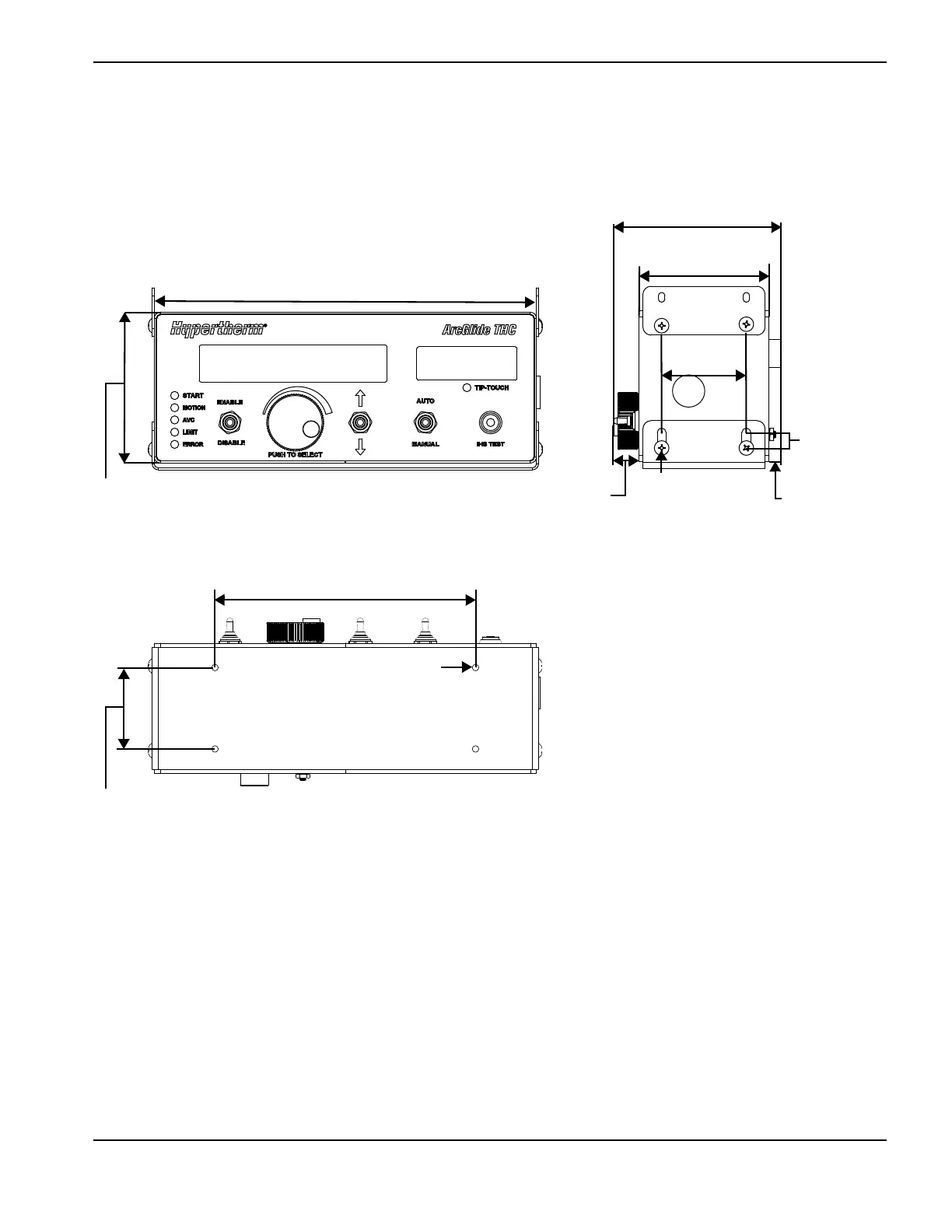

Install the optional HMI
Figure 20
117.60 mm
(4.63 inch)
Front view
Bottom view
63.50 mm
(2.50 inch)
5.00 mm
(0.20 inch)
diameter
10-32 X 9.52 mm
(0.375 inch)
Phillips screw
Right side view
19.43 mm
(0.77 inch)
65.00 mm
(2.50 inch)
9.55 mm
(0.38 inch)
203.20 mm
(8.00 inch)
298.00 mm
(11.73 inch)
130.58 mm
(5.14 inch)
101.6 0 mm
(4.00 inch)
